Wheels and Tyres of Aston Martin Aston Martin Vanquish (2001-2007)

View All

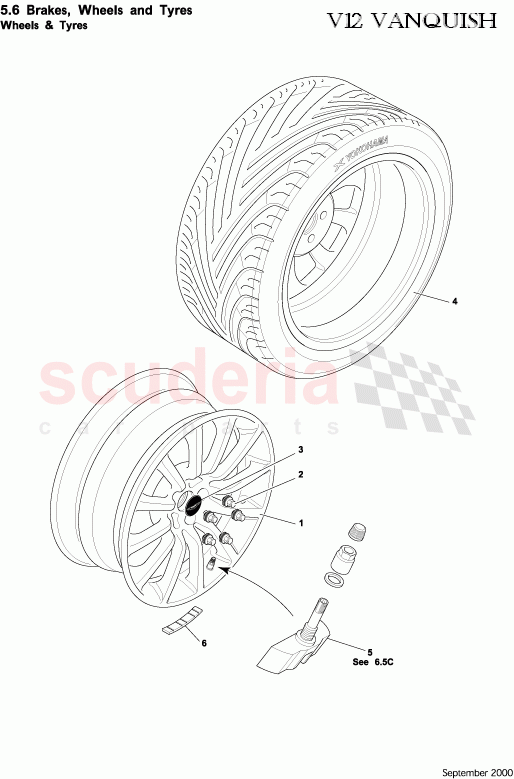

Aston Martin Vanquish (2001-2007) - Wheels and Tyres

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	91687	ROAD WHEEL FRONT-HP	Enquire	To Order
	1R12360216AD	ROADWHEEL - FRONT	Enquire	To Order
	91508	ROADWHEEL-FRONT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G431K024BD	Nut, Wheel, M14 x 2.0	Enquire	ARRIVING SOON
	1R123610006PK	WHL NUT M12x1.5 (5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY531A096BAPK	Badge Wheel Centre (Pack of 4)	Enquire	To Order

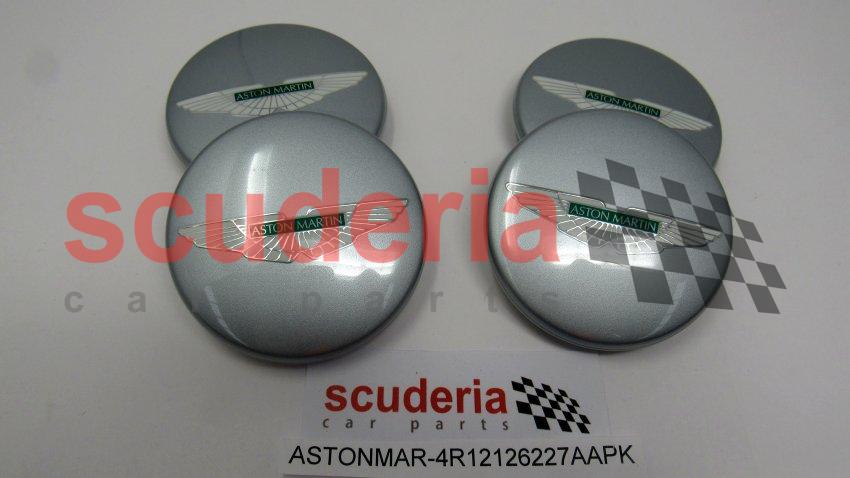

	4R12126227AAPK	Badge-Wheel Centre (Pack of 4)	Enquire	To Order
	4R12126227AAPK	Badge-Wheel Centre (Pack of 4)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91688	ROAD WHEEL REAR-HP	Enquire	To Order
	1R12360217AD	ROADWHEEL - REAR	Enquire	To Order
	91509	ROADWHEEL-REAR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R123610555	TRANSMITTER DUST CAP SILVER	Enquire	To Order
	1R123610304PK	WHL TRANS RING SET-4	Enquire	To Order
	CG33360671AA	TPMS Valve Service	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12361869AA	WHEEL - WINTER	Enquire	To Order
	1R123610303	WHEEL CENTRE- WINTER WHEEL	Enquire	To Order
	1R123610225	WHEEL CENTRE BADGE- WINTER WHEEL	Enquire	To Order

...and 8 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	91687	ROAD WHEEL FRONT-HP	91687 ROAD WHEEL FRONT-HP Vanquish S From (V) 501506	-	2	Enquire
1	1R12360216AD	ROADWHEEL - FRONT	1R12360216AD ROADWHEEL - FRONT Up to (V) 501285	-	2	Enquire
1	91508	ROADWHEEL-FRONT	91508 ROADWHEEL-FRONT From (V) 501286	-	2	Enquire
1	3R12365954AA	ROAD WHEEL FRONT (SVO LIGHTWEIGHT OPTION)	3R12365954AA ROAD WHEEL FRONT (SVO LIGHTWEIGHT OPTION) Optional	-	2	Enquire
2	4G431K024BD	Nut, Wheel, M14 x 2.0 ARRIVING SOON	4G431K024BD Nut, Wheel, M14 x 2.0 Vanquish S From (V) 501506 ARRIVING SOON	-	20	Enquire
2	1R123610006PK	WHL NUT M12x1.5 (5)	1R123610006PK WHL NUT M12x1.5 (5)	-	20	Enquire
3	HY531A096BAPK	Badge Wheel Centre (Pack of 4)	HY531A096BAPK Badge Wheel Centre (Pack of 4) Vanquish S From (V) 501506	-	4	Enquire
3	4R12126227AAPK	Badge-Wheel Centre (Pack of 4)	4R12126227AAPK Badge-Wheel Centre (Pack of 4) Up to (V) 501285	-	4	Enquire
3	4R12126227AAPK	Badge-Wheel Centre (Pack of 4)	4R12126227AAPK Badge-Wheel Centre (Pack of 4) From (V) 501286	-	4	Enquire
4	91688	ROAD WHEEL REAR-HP	91688 ROAD WHEEL REAR-HP Vanquish S From (V) 501506	-	2	Enquire
4	1R12360217AD	ROADWHEEL - REAR	1R12360217AD ROADWHEEL - REAR Up to (V) 501285	-	2	Enquire
4	91509	ROADWHEEL-REAR	91509 ROADWHEEL-REAR From (V) 501286	-	2	Enquire
4	3R12365955AA	ROAD WHEEL REAR (SVO LIGHTWEIGHT OPTION)	3R12365955AA ROAD WHEEL REAR (SVO LIGHTWEIGHT OPTION) Optional	-	2	Enquire
4	1R123610736	ROAD TYRE-FT 255/40	1R123610736 ROAD TYRE-FT 255/40	-	2	Enquire
4	1R123610737	ROAD TYRE-RR 285/40	1R123610737 ROAD TYRE-RR 285/40	-	2	Enquire
5	1R123610555	TRANSMITTER DUST CAP SILVER	1R123610555 TRANSMITTER DUST CAP SILVER For use with tyre pressure monitoring valves	-	2	Enquire
5	1R123610304PK	WHL TRANS RING SET-4	1R123610304PK WHL TRANS RING SET-4	-	1	Enquire
5	CG33360671AA	TPMS Valve Service	CG33360671AA TPMS Valve Service	-	4	Enquire
6	1R12361869AA	WHEEL - WINTER	1R12361869AA WHEEL - WINTER Not Vanquish S or SVO option	-	4	Enquire
6	1R123610303	WHEEL CENTRE- WINTER WHEEL	1R123610303 WHEEL CENTRE- WINTER WHEEL Not Vanquish S or SVO option	-	4	Enquire
6	1R123610225	WHEEL CENTRE BADGE- WINTER WHEEL	1R123610225 WHEEL CENTRE BADGE- WINTER WHEEL Not Vanquish S or SVO option	-	4	Enquire
6	6R131508AA	VANQUISH 19 FRONT WINTER TYRE	6R131508AA VANQUISH 19 FRONT WINTER TYRE Vanquish S	-	2	Enquire
6	6R131508BA	VANQUISH 19IN REAR WINTER TYRE	6R131508BA VANQUISH 19IN REAR WINTER TYRE Vanquish S	-	2	Enquire
6	1R12364060AB	ROADTYRE WINTER FRT	1R12364060AB ROADTYRE WINTER FRT	-	1	Enquire
6	1R12364062AB	ROADTYRE WINTER REAR	1R12364062AB ROADTYRE WINTER REAR	-	1	Enquire
6	1R12364442AA	Snow track kit	1R12364442AA Snow track kit	-	1	Enquire
6	3683832	T/VALVE-SNAP IN WINTER WHEEL RUBBER COVERED	3683832 T/VALVE-SNAP IN WINTER WHEEL RUBBER COVERED	-	4	Enquire
6	705623	GREASE-RED	705623 GREASE-RED	-	-	Enquire
6	1R123610018	Balance weight	1R123610018 Balance weight	-	-	Enquire
