Rear Brakes of Aston Martin Aston Martin Vanquish (2001-2007)

View All

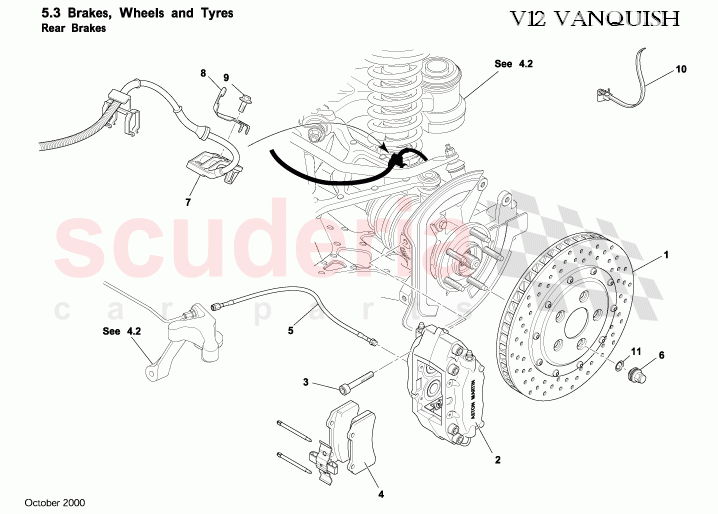

Aston Martin Vanquish (2001-2007) - Rear Brakes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	5R132A097AB	DISC AY RR RH(520HP)	Enquire	To Order
	4R12285953AA	Disc assy, ventilated, rear, LH (SVO option)	Enquire	To Order
	4R12285952AA	Disc assy, ventilated, rear, RH (SVO option)	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4R12286255AA	ASSY CALIPER BRAKE RR - BLACK LH	Enquire	To Order
	4R12286254AA	ASSY CALIPER BRAKE RR - BLACK RH	Enquire	To Order
	4R12286259AA	ASSY CALIPER BRAKE RR-GRAPHITE LH	Enquire	To Order

...and 23 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R122810740	BOLT, CAP HEAD M12X60	Enquire	To Order
	1R12283578AA	BOLT - REAR CALIPER TO KNUCKLE M12x67	Enquire	To Order
	701885	LOCTITE 243-10ml BTL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R122810428PK	REAR BRAKE PADS	Enquire	To Order
	1R122810291PK	BRAKE PAD SET-REAR	Enquire	To Order
	4R122810401PK	BRAKE PAD SET RR 04	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3026952	WASHER - COPPER	Enquire	To Order
	1R12280465AH	ASSY BRAKE HOSE REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431K024BD	Nut, Wheel, M14 x 2.0	Enquire	ARRIVING SOON
	1R123610006PK	WHL NUT M12x1.5 (5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R129010479	ABS SENSOR REAR LH	Enquire	To Order
	1R129010408	ABS SENSOR-REAR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12282323AA	BRACKET - REAR ABS SENSOR CABLE LH	Enquire	To Order
	1R12282322AA	BRACKET-REAR ABS SENSOR CABLE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700126	SCREW M6x20 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697398	TIESTRAP-RELEASEABLE 4.6 x 165	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703141	SCREW M8 x 16 CHROME FREE	Enquire	To Order
	699878	NUT M12 RETAINER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	5R132A097AB	DISC AY RR RH(520HP)	5R132A097AB DISC AY RR RH(520HP) Vanquish S From (V) 501506	-	1	Enquire
1	4R12285953AA	Disc assy, ventilated, rear, LH (SVO option)	4R12285953AA Disc assy, ventilated, rear, LH (SVO option) For uprated brakes	-	1	Enquire
1	4R12285952AA	Disc assy, ventilated, rear, RH (SVO option)	4R12285952AA Disc assy, ventilated, rear, RH (SVO option) For uprated brakes	-	1	Enquire
1	1R12280467AC	ASSY DISC VENTED REAR LH	1R12280467AC ASSY DISC VENTED REAR LH Up to (V) 501285	-	1	Enquire
1	1R12280466AC	ASSY DISC VENTED REAR RH	1R12280466AC ASSY DISC VENTED REAR RH Up to (V) 501285	-	1	Enquire
1	4R12280467AA	ASSY DISC VENTED REAR LH	4R12280467AA ASSY DISC VENTED REAR LH From (V) 501286	-	1	Enquire
1	4R12280466AA	ASSY DISC VENTED REAR RH	4R12280466AA ASSY DISC VENTED REAR RH From (V) 501286	-	1	Enquire
2	4R12286255AA	ASSY CALIPER BRAKE RR - BLACK LH	4R12286255AA ASSY CALIPER BRAKE RR - BLACK LH For uprated brakes/Vanquish S From (V) 501506	-	1	Enquire
2	4R12286254AA	ASSY CALIPER BRAKE RR - BLACK RH	4R12286254AA ASSY CALIPER BRAKE RR - BLACK RH For uprated brakes/Vanquish S From (V) 501506	-	1	Enquire
2	4R12286259AA	ASSY CALIPER BRAKE RR-GRAPHITE LH	4R12286259AA ASSY CALIPER BRAKE RR-GRAPHITE LH For uprated brakes/Vanquish S From (V) 501506	-	1	Enquire
2	4R12286258AA	ASSY CALIPER BRAKE RR - GRAPHITE RH	4R12286258AA ASSY CALIPER BRAKE RR - GRAPHITE RH For uprated brakes/Vanquish S From (V) 501506	-	1	Enquire
2	4R12286257AA	ASSY CALIPER BRAKE RR - RED LH	4R12286257AA ASSY CALIPER BRAKE RR - RED LH For uprated brakes/Vanquish S From (V) 501506	-	1	Enquire
2	4R12286256AA	ASSY CALIPER BRAKE RR-RED RH	4R12286256AA ASSY CALIPER BRAKE RR-RED RH For uprated brakes/Vanquish S From (V) 501506	-	1	Enquire
2	5R132K327AA	ASSY CALIPER BRAKE - RR SILVER (520HP)LH	5R132K327AA ASSY CALIPER BRAKE - RR SILVER (520HP)LH Vanquish S From (V) 501506	-	1	Enquire
2	5R132K328AA	ASSY CALIPER BRAKE - RR SILVER (520HP) RH	5R132K328AA ASSY CALIPER BRAKE - RR SILVER (520HP) RH Vanquish S From (V) 501506	-	1	Enquire
2	4R12286307AA	ASSY CALIPER BRAKE RR GOLD LH	4R12286307AA ASSY CALIPER BRAKE RR GOLD LH For uprated brakes	-	1	Enquire
2	4R12286306AA	ASSY CALIPER BRAKE RH - GOLD RH	4R12286306AA ASSY CALIPER BRAKE RH - GOLD RH For uprated brakes	-	1	Enquire
2	1R12283366AB	ASSY CALIPER BRAKE REAR (BLACK) RH	1R12283366AB ASSY CALIPER BRAKE REAR (BLACK) RH Up to (V) 501285	-	1	Enquire
2	1R12283367AB	ASSY CALIPER BRAKE REAR (BLACK) LH	1R12283367AB ASSY CALIPER BRAKE REAR (BLACK) LH Up to (V) 501285	-	1	Enquire
2	1R12283369AB	ASSY CALIPER BRAKE REAR (GOLD) LH	1R12283369AB ASSY CALIPER BRAKE REAR (GOLD) LH Up to (V) 501285	-	1	Enquire
2	1R12283368AB	ASSY CALIPER BRAKE REAR (GOLD) RH	1R12283368AB ASSY CALIPER BRAKE REAR (GOLD) RH Up to (V) 501285	-	1	Enquire
2	1R12283371AB	ASSY CALIPER BRAKE REAR (RED) LH	1R12283371AB ASSY CALIPER BRAKE REAR (RED) LH Up to (V) 501285	-	1	Enquire
2	1R12283370AB	ASSY CALIPER BRAKE REAR (RED) RH	1R12283370AB ASSY CALIPER BRAKE REAR (RED) RH Up to (V) 501285	-	1	Enquire
2	1R12280469AD	ASSY CALIPER BRAKE REAR LH	1R12280469AD ASSY CALIPER BRAKE REAR LH Up to (V) 501285	-	1	Enquire
2	1R12280468AD	ASSY CALIPER BRAKE REAR RH	1R12280468AD ASSY CALIPER BRAKE REAR RH Up to (V) 501285	-	1	Enquire
2	4R12283366AA	ASSY CALIPER BRAKE REAR (BLACK) RH	4R12283366AA ASSY CALIPER BRAKE REAR (BLACK) RH From (V) 501286	-	1	Enquire
2	4R12283367AA	ASSY CALIPER BRAKE REAR (BLACK) LH	4R12283367AA ASSY CALIPER BRAKE REAR (BLACK) LH From (V) 501286	-	1	Enquire
2	4R12283369AA	ASSY CALIPER BRAKE REAR (GOLD) LH	4R12283369AA ASSY CALIPER BRAKE REAR (GOLD) LH From (V) 501286	-	1	Enquire
2	4R12283368AA	ASSY CALIPER BRAKE REAR (GOLD) RH	4R12283368AA ASSY CALIPER BRAKE REAR (GOLD) RH From (V) 501286	-	1	Enquire
2	4R12283371AA	ASSY CALIPER BRAKE REAR (RED) LH	4R12283371AA ASSY CALIPER BRAKE REAR (RED) LH From (V) 501286	-	1	Enquire
2	4R12283370AA	ASSY CALIPER BRAKE REAR (RED) RH	4R12283370AA ASSY CALIPER BRAKE REAR (RED) RH From (V) 501286	-	1	Enquire
2	4R12280469AA	ASSY CALIPER BRAKE REAR LH	4R12280469AA ASSY CALIPER BRAKE REAR LH From (V) 501286	-	1	Enquire
2	4R12280468AA	ASSY CALIPER BRAKE REAR RH	4R12280468AA ASSY CALIPER BRAKE REAR RH From (V) 501286	-	1	Enquire
3	1R122810740	BOLT, CAP HEAD M12X60	1R122810740 BOLT, CAP HEAD M12X60 For uprated brakes/Vanquish S From (V) 501506	-	4	Enquire
3	1R12283578AA	BOLT - REAR CALIPER TO KNUCKLE M12x67	1R12283578AA BOLT - REAR CALIPER TO KNUCKLE M12x67	-	4	Enquire
3	701885	LOCTITE 243-10ml BTL	701885 LOCTITE 243-10ml BTL	-	-	Enquire
4	1R122810428PK	REAR BRAKE PADS	1R122810428PK REAR BRAKE PADS For uprated brakes/Vanquish S	-	4	Enquire
4	1R122810291PK	BRAKE PAD SET-REAR	1R122810291PK BRAKE PAD SET-REAR Up to (V) 501285	-	2	Enquire
4	4R122810401PK	BRAKE PAD SET RR 04	4R122810401PK BRAKE PAD SET RR 04 From (V) 501286	-	1	Enquire
4	2885456	CLIP & PIN SET REAR CALIPER	2885456 CLIP & PIN SET REAR CALIPER	-	1	Enquire
5	3026952	WASHER - COPPER	3026952 WASHER - COPPER For uprated brakes	-	2	Enquire
5	1R12280465AH	ASSY BRAKE HOSE REAR	1R12280465AH ASSY BRAKE HOSE REAR	-	2	Enquire
6	4G431K024BD	Nut, Wheel, M14 x 2.0 ARRIVING SOON	4G431K024BD Nut, Wheel, M14 x 2.0 Vanquish S From (V) 501506 ARRIVING SOON	-	10	Enquire
6	1R123610006PK	WHL NUT M12x1.5 (5)	1R123610006PK WHL NUT M12x1.5 (5)	-	10	Enquire
7	1R129010479	ABS SENSOR REAR LH	1R129010479 ABS SENSOR REAR LH	-	1	Enquire
7	1R129010408	ABS SENSOR-REAR RH	1R129010408 ABS SENSOR-REAR RH	-	1	Enquire
8	1R12282323AA	BRACKET - REAR ABS SENSOR CABLE LH	1R12282323AA BRACKET - REAR ABS SENSOR CABLE LH	-	1	Enquire
8	1R12282322AA	BRACKET-REAR ABS SENSOR CABLE RH	1R12282322AA BRACKET-REAR ABS SENSOR CABLE RH	-	1	Enquire
9	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG	-	2	Enquire
10	697398	TIESTRAP-RELEASEABLE 4.6 x 165	697398 TIESTRAP-RELEASEABLE 4.6 x 165	-	2	Enquire
11	703141	SCREW M8 x 16 CHROME FREE	703141 SCREW M8 x 16 CHROME FREE Vanquish S From (V) 501506	-	4	Enquire
11	699878	NUT M12 RETAINER	699878 NUT M12 RETAINER	-	2	Enquire
