Aston Martin Vanquish (2001-2007) - Brake Booster and Modulator

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9084092 GASKET $15.15 To Order
Photo Part No Description Price (each) Stock
697291 NUT M10 NYLOC $2.44 To Order
Photo Part No Description Price (each) Stock
697444 NUT M8 FLG CLASS 8 $0.48 To Order
Photo Part No Description Price (each) Stock
3384098 Lip Seal, Master Cylinder $9.40 To Order
Photo Part No Description Price (each) Stock
3384097 BR RESERVOIR CAP $204.64 To Order
Photo Part No Description Price (each) Stock
3384099 BR RESERVOIR PIN $7.49 To Order
Photo Part No Description Price (each) Stock
3384100 SEAL-BR.RES.TO M/CYL $27.53 To Order
Photo Part No Description Price (each) Stock
1R12282552AE HOSE - BRAKE BOOSTER VACUUM RHD $931.61 To Order
1R12282553AE HOSE - BRAKE BOOSTER VACUUM LHD $931.61 To Order
699693 ASSY CLIP $2.39 To Order
Photo Part No Description Price (each) Stock
1R129010106P ABS MODULATOR PROGRAMMED TO CAR $1,622.28 To Order
Photo Part No Description Price (each) Stock
1R129010106P ABS MODULATOR PROGRAMMED TO CAR $1,622.28 To Order
Photo Part No Description Price (each) Stock
1R12281399AD BRACKET ASSY - ABS MODULATOR $103.80 To Order
Photo Part No Description Price (each) Stock
697795 SCREW M6 x 28 SPECIAL TORX $6.33 To Order
Photo Part No Description Price (each) Stock
9085219 MODULATOR RUBBER MTG $10.20 To Order
Photo Part No Description Price (each) Stock
703188 SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE $0.71 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.36 To Order
Photo Part No Description Price (each) Stock
1R12282273AD BRAKE PIPE - MCYL FRT - 1ST JNT - RHD $160.55 To Order
1R12282271AD BRAKE PIPE - MCYL FRT - MOD - LHD $116.48 To Order
Photo Part No Description Price (each) Stock
1R12282305AA CONNECTOR - M10 X 1 BRAKE PIPE $10.77 To Order
1R12282305AA CONNECTOR - M10 X 1 BRAKE PIPE $10.77 To Order
Photo Part No Description Price (each) Stock
1R12282274AD BRAKE PIPE - MCYL FRT - 1ST-2ND JNT - RHD $180.13 To Order
Photo Part No Description Price (each) Stock
1R12282275AD BRAKE PIPE - MCYL FRT - 2ND JNT - MOD RHD $142.65 To Order
Photo Part No Description Price (each) Stock
1R12282276AD Brake pipe, master cylinder rear - first joint Enquire To Order
1R12282272AD BRAKE PIPE - MCYL RR MOD LHD $160.55 To Order
Photo Part No Description Price (each) Stock
1R12282277AD BRAKE PIPE - MCYL RR 1ST-2ND JNT - RHD $172.39 To Order
Photo Part No Description Price (each) Stock
1R12282278AC BRAKE PIPE - MCYL RR 2ND JNT - MOD - RHD $160.55 To Order
Photo Part No Description Price (each) Stock
1R12282280AB BRAKE PIPE - MOD - 1ST JNT - FR RH $132.22 To Order
Photo Part No Description Price (each) Stock
1R12282281AD BRAKE PIPE - MOD - 2ND JNT - FLEXI - FR RH $152.81 To Order
Photo Part No Description Price (each) Stock
1R12283354AA ASSY FTNG M10x1x23 03 JIC 45 DEG $109.74 To Order
Photo Part No Description Price (each) Stock
1R12281845AD BRACKET BRAKE PIPE FRONT LH $102.37 To Order
Photo Part No Description Price (each) Stock
1R12281844AD BRACKET BRAKE PIPE FRONT RH $21.20 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.36 To Order
Photo Part No Description Price (each) Stock
1R12282419AA CLIP-FRONT ABS SENS. CABLE $1.37 To Order
Photo Part No Description Price (each) Stock
1R12282279AC BRAKE PIPE - MOD - FLEXI - FR LH $151.81 To Order
Photo Part No Description Price (each) Stock
1R12280476AG BRAKE PIPE - MODUL TO REAR RH $173.85 To Order
4R12280476AA BRAKE PIPE - MODUL TO REAR RH $153.15 To Order
Photo Part No Description Price (each) Stock
1R12280477AG BRAKE PIPE - MODUL TO REAR LH $151.40 To Order
4R12280477AA BRAKE PIPE - MODUL TO REAR LH $151.40 To Order
Photo Part No Description Price (each) Stock
1R123310108 BRAKE PRESSURE VALVE $81.05 To Order
Photo Part No Description Price (each) Stock
1R12284133AA ASSY BRAKE BALANCE VALVE RR LH $172.01 To Order
Photo Part No Description Price (each) Stock
1R12282309AA CLIP-6-6-4.76-TRIPLE BRAKE PIPE $2.66 To Order
Photo Part No Description Price (each) Stock
1R12282724AA CLIP - 4.76-4.76 - DOUBLE - BRAKE PIPE $1.91 To Order
699276 RIVET-THREAD FORMING STEEL M6-DACROMET COATED $1.28 To Order
Photo Part No Description Price (each) Stock
1R12282308AA CLIP-4.76-SINGLE - BRAKE PIPE $0.66 To Order
1R12282308AA CLIP-4.76-SINGLE - BRAKE PIPE $0.66 To Order
Photo Part No Description Price (each) Stock
699228 PIPE CLIP 2 WAY $3.26 To Order
700183 Clip, 4 way brake pipe Enquire To Order
Photo Part No Description Price (each) Stock
1R12283330AB ASSY FITTING M10x 1x35 - 03 JIC $199.42 To Order
View All

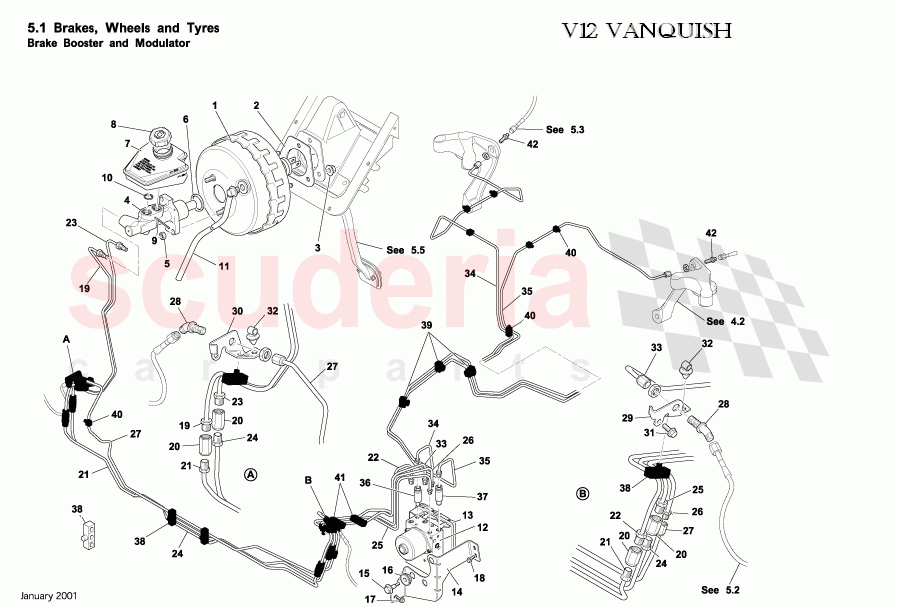

Brake Booster and Modulator of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 1R122810720
RESERVOIR & PLUG 		$593.08 1
2 9084092
GASKET 		$15.15 1
3 697291
NUT M10 NYLOC
Booster to pedal housing 		$2.44 3
5 697444
NUT M8 FLG CLASS 8 		$0.48 2
6 3384098
Lip Seal, Master Cylinder 		$9.40 1
8 3384097
BR RESERVOIR CAP 		$204.64 1
9 3384099
BR RESERVOIR PIN 		$7.49 1
10 3384100
SEAL-BR.RES.TO M/CYL
Reservoir to master cylinder 		$27.53 2
11 1R12282552AE
HOSE - BRAKE BOOSTER VACUUM RHD
RHD 		$931.61 1
11 1R12282553AE
HOSE - BRAKE BOOSTER VACUUM LHD
LHD 		$931.61 1
11 699693
ASSY CLIP 		$2.39 1
12 1R129010106P
ABS MODULATOR PROGRAMMED TO CAR 		$1,622.28 1
13 1R129010106P
ABS MODULATOR PROGRAMMED TO CAR 		$1,622.28 1
14 1R12281399AD
BRACKET ASSY - ABS MODULATOR 		$103.80 1
15 697795
SCREW M6 x 28 SPECIAL TORX
Modulator to bracket 		$6.33 3
16 9085219
MODULATOR RUBBER MTG 		$10.20 3
17 703188
SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE 		$0.71 1
18 703265
Screw, M6 x 16, Hex Flange Head 		$0.36 2
19 1R12282273AD
BRAKE PIPE - MCYL FRT - 1ST JNT - RHD
RHD 		$160.55 1
19 1R12282271AD
BRAKE PIPE - MCYL FRT - MOD - LHD
LHD 		$116.48 1
20 1R12282305AA
CONNECTOR - M10 X 1 BRAKE PIPE
LHD 		$10.77 1
20 1R12282305AA
CONNECTOR - M10 X 1 BRAKE PIPE
RHD 		$10.77 4
21 1R12282274AD
BRAKE PIPE - MCYL FRT - 1ST-2ND JNT - RHD
RHD 		$180.13 1
22 1R12282275AD
BRAKE PIPE - MCYL FRT - 2ND JNT - MOD RHD
RHD 		$142.65 1
23 1R12282276AD
Brake pipe, master cylinder rear - first joint
RHD 		- 1 Enquire
23 1R12282272AD
BRAKE PIPE - MCYL RR MOD LHD
LHD 		$160.55 1
24 1R12282277AD
BRAKE PIPE - MCYL RR 1ST-2ND JNT - RHD
RHD 		$172.39 1
25 1R12282278AC
BRAKE PIPE - MCYL RR 2ND JNT - MOD - RHD
RHD 		$160.55 1
26 1R12282280AB
BRAKE PIPE - MOD - 1ST JNT - FR RH 		$132.22 1
27 1R12282281AD
BRAKE PIPE - MOD - 2ND JNT - FLEXI - FR RH 		$152.81 1
28 1R12283354AA
ASSY FTNG M10x1x23 03 JIC 45 DEG 		$109.74 2
29 1R12281845AD
BRACKET BRAKE PIPE FRONT LH 		$102.37 1
30 1R12281844AD
BRACKET BRAKE PIPE FRONT RH 		$21.20 1
31 703265
Screw, M6 x 16, Hex Flange Head 		$0.36 2
32 1R12282419AA
CLIP-FRONT ABS SENS. CABLE 		$1.37 2
33 1R12282279AC
BRAKE PIPE - MOD - FLEXI - FR LH 		$151.81 1
34 1R12280476AG
BRAKE PIPE - MODUL TO REAR RH
Up to (V) 501285 		$173.85 1
34 4R12280476AA
BRAKE PIPE - MODUL TO REAR RH
From (V) 501286 		$153.15 1
35 1R12280477AG
BRAKE PIPE - MODUL TO REAR LH
Up to (V) 501285 		$151.40 1
35 4R12280477AA
BRAKE PIPE - MODUL TO REAR LH
From (V) 501286 		$151.40 1
36 1R123310108
BRAKE PRESSURE VALVE
Up to (V) 501285 		$81.05 1
37 1R12284133AA
ASSY BRAKE BALANCE VALVE RR LH
Up to (V) 501285 		$172.01 1
38 1R12282309AA
CLIP-6-6-4.76-TRIPLE BRAKE PIPE
RHD 		$2.66 4
39 1R12282724AA
CLIP - 4.76-4.76 - DOUBLE - BRAKE PIPE
RHD 		$1.91 5
39 699276
RIVET-THREAD FORMING STEEL M6-DACROMET COATED
RHD 		$1.28 5
40 1R12282308AA
CLIP-4.76-SINGLE - BRAKE PIPE
RHD 		$0.66 4
40 1R12282308AA
CLIP-4.76-SINGLE - BRAKE PIPE
LHD 		$0.66 7
41 699228
PIPE CLIP 2 WAY
LHD 		$3.26 2
41 700183
Clip, 4 way brake pipe
RHD 		- 2 Enquire
42 1R12283330AB
ASSY FITTING M10x 1x35 - 03 JIC 		$199.42 2
