Pedal Gear of Aston Martin Aston Martin Vanquish (2001-2007)

View All

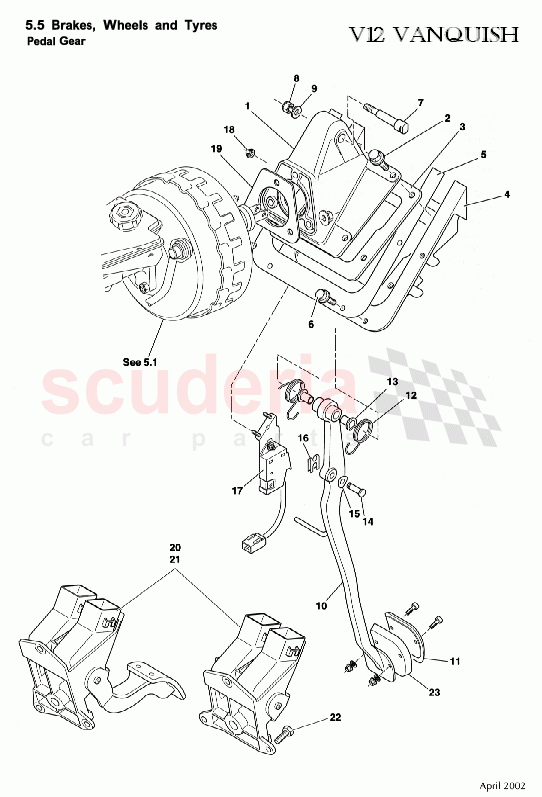

Aston Martin Vanquish (2001-2007) - Pedal Gear

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R122910124	PEDAL HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R122910125	GASKET-PEDAL HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12291404AF	Adaptor, pedal box	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12293607AC	GASKET ADAPTOR PEDAL BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703188	SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981255	PIVOT PIN- BRAKE PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697291	NUT M10 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697258	WASHER M10 PLAIN FORM A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R12296298AA	BRAKE PEDAL SUB/ASSY RHD	Enquire	To Order
	4R12296299AA	BRAKE PEDAL SUB/ASSY LHD	Enquire	To Order
	1R12292846AC	BRAKE PEDAL RHD MODIFIED	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	700447	CAPSCREW- M5x36 CSK HD FOOTREST PAD TO BRKT	Enquire	To Order
	700448	Screw, M5 x 30, csk Pedal pad	Enquire	To Order
	1R12382811AE	PAD - BRAKE PEDAL	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	2981257	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981271	BUSH-PEDAL PIVOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2984879	Pin, Joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703273	WASHER WAVE SPRING M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3327328AA	Clip, Safety, Nom Shaft, 5/16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3785782	Switch-Stop Lamp	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12382240AC	ASSY ACCEL PEDAL RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12382239AD	ASSY ACCEL PEDAL LHD	Enquire	To Order
	1R123710339	Sensor, accelerator pedal position	Enquire	To Order
	1R12382716AB	PAD ACCELERATOR PEDAL	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12384737AB	SPACER - BRAKE PEDAL RHD	Enquire	To Order
	1R12384327AB	SPACER - BRAKE PEDAL LHD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R122910124	PEDAL HOUSING	1R122910124 PEDAL HOUSING	-	1	Enquire
2	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	4	Enquire
3	1R122910125	GASKET-PEDAL HOUSING	1R122910125 GASKET-PEDAL HOUSING	-	1	Enquire
4	1R12291404AF	Adaptor, pedal box	1R12291404AF Adaptor, pedal box	-	1	Enquire
5	1R12293607AC	GASKET ADAPTOR PEDAL BOX	1R12293607AC GASKET ADAPTOR PEDAL BOX	-	1	Enquire
6	703188	SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	703188 SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	-	4	Enquire
7	2981255	PIVOT PIN- BRAKE PEDAL	2981255 PIVOT PIN- BRAKE PEDAL	-	1	Enquire
8	697291	NUT M10 NYLOC	697291 NUT M10 NYLOC	-	1	Enquire
9	697258	WASHER M10 PLAIN FORM A	697258 WASHER M10 PLAIN FORM A	-	1	Enquire
10	4R12296298AA	BRAKE PEDAL SUB/ASSY RHD	4R12296298AA BRAKE PEDAL SUB/ASSY RHD For uprated brakes/Vanquish S From (V) 501506	-	1	Enquire
10	4R12296299AA	BRAKE PEDAL SUB/ASSY LHD	4R12296299AA BRAKE PEDAL SUB/ASSY LHD For uprated brakes/Vanquish S From (V) 501506	-	1	Enquire
10	1R12292846AC	BRAKE PEDAL RHD MODIFIED	1R12292846AC BRAKE PEDAL RHD MODIFIED RHD	-	1	Enquire
10	1R12292847AC	BRAKE PEDAL LHD MODIFIED	1R12292847AC BRAKE PEDAL LHD MODIFIED LHD	-	1	Enquire
11	700447	CAPSCREW- M5x36 CSK HD FOOTREST PAD TO BRKT	700447 CAPSCREW- M5x36 CSK HD FOOTREST PAD TO BRKT LHD	-	1	Enquire
11	700448	Screw, M5 x 30, csk Pedal pad	700448 Screw, M5 x 30, csk Pedal pad LHD	-	1	Enquire
11	1R12382811AE	PAD - BRAKE PEDAL	1R12382811AE PAD - BRAKE PEDAL RHD	-	1	Enquire
11	1R12384328AB	PAD - BRAKE PEDAL LHD	1R12384328AB PAD - BRAKE PEDAL LHD LHD	-	1	Enquire
11	700447	CAPSCREW- M5x36 CSK HD FOOTREST PAD TO BRKT	700447 CAPSCREW- M5x36 CSK HD FOOTREST PAD TO BRKT RHD	-	2	Enquire
11	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE	-	2	Enquire
12	2981257	SPRING	2981257 SPRING	-	2	Enquire
13	2981271	BUSH-PEDAL PIVOT	2981271 BUSH-PEDAL PIVOT	-	2	Enquire
14	2984879	Pin, Joint	2984879 Pin, Joint	-	1	Enquire
15	703273	WASHER WAVE SPRING M8	703273 WASHER WAVE SPRING M8	-	1	Enquire
16	6G3327328AA	Clip, Safety, Nom Shaft, 5/16	6G3327328AA Clip, Safety, Nom Shaft, 5/16	-	1	Enquire
17	3785782	Switch-Stop Lamp ARRIVING SOON	3785782 Switch-Stop Lamp ARRIVING SOON	-	1	Enquire
18	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	2	Enquire
19	9084092	GASKET	9084092 GASKET	-	1	Enquire
20	1R12382240AC	ASSY ACCEL PEDAL RHD	1R12382240AC ASSY ACCEL PEDAL RHD RHD	-	1	Enquire
21	1R12382239AD	ASSY ACCEL PEDAL LHD	1R12382239AD ASSY ACCEL PEDAL LHD LHD	-	1	Enquire
21	1R123710339	Sensor, accelerator pedal position	1R123710339 Sensor, accelerator pedal position	-	1	Enquire
21	1R12382716AB	PAD ACCELERATOR PEDAL	1R12382716AB PAD ACCELERATOR PEDAL	-	1	Enquire
21	700451	PEDAL PAD SCREW M5 X 20 SCREW	700451 PEDAL PAD SCREW M5 X 20 SCREW	-	2	Enquire
21	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE	-	2	Enquire
22	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	3	Enquire
23	1R12384737AB	SPACER - BRAKE PEDAL RHD	1R12384737AB SPACER - BRAKE PEDAL RHD RHD	-	1	Enquire
23	1R12384327AB	SPACER - BRAKE PEDAL LHD	1R12384327AB SPACER - BRAKE PEDAL LHD LHD	-	1	Enquire
