Handbrake of Aston Martin Aston Martin Vanquish (2001-2007)

View All

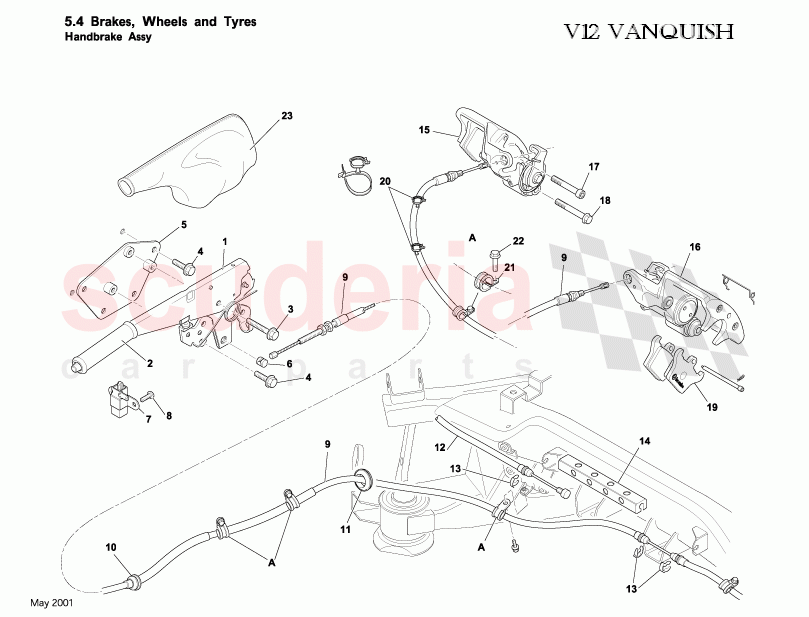

Aston Martin Vanquish (2001-2007) - Handbrake

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12305235AA	ASSY HANDBRAKE LEVER (AUS)	Enquire	To Order
	1R12302980AB	ASSY HANDBRAKE LEVER - RHD	Enquire	To Order
	1R12302981AB	ASSY HANDBRAKE LEVER - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R132782AAW	HANDBRAKE HANDLE GRIP - TRIMMED	Enquire	To Order
	1R12302928AC	HANDLE LEVER H/BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700151	SCREW M8x45 HEX FLG8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700144	SCREW M8x20 HEX FLG8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12305236AA	BRACKET - HANDBRAKE MOUNTING (AUS)	Enquire	To Order
	1R12302064AB	BRACKET HANDBRAKE MOUNTING RHD	Enquire	To Order
	1R12302065AB	BRACKET HANDBRAKE MOUNTING LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33439136AA	Trunnion, Handbrake Cable	Enquire	To Order
	6G33100063AAPK	FIXER-PUSH ON 6mm SHAFT PACK OF 10	Enquire	To Order
	6G332K605AA	PIN PIVOT CABLE HANDBRAKE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3784687	Switch, Handbrake	Enquire	To Order
	3784688	Switch, Handbrake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6R132853AA	CABLE ASSY - HANDBRAKE	Enquire	To Order
	6R132853AA	CABLE ASSY - HANDBRAKE	Enquire	To Order
	1R12304131AD	Cable, handbrake long	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	700046	Grommet, 23 panel hole	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700047	Grommet, 32 panel hole	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R132A635AA	Cable, handbrake short	Enquire	To Order
	1R12305363AA	CABLE HANDBRAKE EXTENSION	Enquire	To Order
	1R12304132AD	Cable, handbrake short	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700262	SPRING CLIP-SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12305794AB	ASSY PARK BRAKE CALIPER STRONGER SPRING RH	Enquire	To Order
	5R132N791AA	SPRING PARK BRAKE RETURN RH	Enquire	To Order
	F6DC2A602AC	Equaliser, handbrake	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12305795AB	ASSY PARK BRAKE CALIPER STRONGER SPRING LH	Enquire	To Order
	5R132N791BA	SPRING PARK BRAKE RETURN LH	Enquire	To Order
	1R12305795AB	ASSY PARK BRAKE CALIPER STRONGER SPRING LH	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12280213AA	Caliper assy, handbrake, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12303579AA	BOLT HANDBRAKE CALIPER TO KNUCKLE M8x65	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703707	BOLT-M10 X 80 HEX FLANGE HEAD GRADE 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R122810201PK	BRAKE PAD SET - HAND BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699789	SPRYCO TIE-WRAP SWIVEL CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12302186AA	P CLIP 16/15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12835303AA	Reinforcement, handbrake gaiter	Enquire	To Order
	1R12835344AAW	Gaiter, handbrake lever	Enquire	To Order
	2562716	BADGE `ASTON MARTIN MODULE STRG WHEEL	Enquire	To Order

...and 7 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12305235AA	ASSY HANDBRAKE LEVER (AUS)	1R12305235AA ASSY HANDBRAKE LEVER (AUS) Australia	-	1	Enquire
1	1R12302980AB	ASSY HANDBRAKE LEVER - RHD	1R12302980AB ASSY HANDBRAKE LEVER - RHD RHD	-	1	Enquire
1	1R12302981AB	ASSY HANDBRAKE LEVER - LHD	1R12302981AB ASSY HANDBRAKE LEVER - LHD LHD	-	1	Enquire
2	5R132782AAW	HANDBRAKE HANDLE GRIP - TRIMMED	5R132782AAW HANDBRAKE HANDLE GRIP - TRIMMED Vanquish S From (V) 501506	-	1	Enquire
2	1R12302928AC	HANDLE LEVER H/BRAKE	1R12302928AC HANDLE LEVER H/BRAKE	-	1	Enquire
3	700151	SCREW M8x45 HEX FLG8	700151 SCREW M8x45 HEX FLG8	-	4	Enquire
4	700144	SCREW M8x20 HEX FLG8	700144 SCREW M8x20 HEX FLG8	-	9	Enquire
5	1R12305236AA	BRACKET - HANDBRAKE MOUNTING (AUS)	1R12305236AA BRACKET - HANDBRAKE MOUNTING (AUS) Australia	-	1	Enquire
5	1R12302064AB	BRACKET HANDBRAKE MOUNTING RHD	1R12302064AB BRACKET HANDBRAKE MOUNTING RHD RHD	-	1	Enquire
5	1R12302065AB	BRACKET HANDBRAKE MOUNTING LHD	1R12302065AB BRACKET HANDBRAKE MOUNTING LHD LHD	-	1	Enquire
6	6G33439136AA	Trunnion, Handbrake Cable	6G33439136AA Trunnion, Handbrake Cable Vanquish S From (V) 501506 up to (V) TBA	-	1	Enquire
6	6G33100063AAPK	FIXER-PUSH ON 6mm SHAFT PACK OF 10	6G33100063AAPK FIXER-PUSH ON 6mm SHAFT PACK OF 10 Vanquish S From (V) 501506	-	1	Enquire
6	6G332K605AA	PIN PIVOT CABLE HANDBRAKE	6G332K605AA PIN PIVOT CABLE HANDBRAKE Vanquish S From (V) 501506	-	1	Enquire
6	705623	GREASE-RED	705623 GREASE-RED Vanquish S From (V) 501506	-	-	Enquire
6	6R135152AA	HANDBRAKE CABLE TRUNNION	6R135152AA HANDBRAKE CABLE TRUNNION Vanquish S From (V) TBA	-	1	Enquire
6	3083441	TRUNNION-H/BRAKE CBL	3083441 TRUNNION-H/BRAKE CBL Up to (V) 501505	-	1	Enquire
7	3784687	Switch, Handbrake	3784687 Switch, Handbrake RHD	-	1	Enquire
7	3784688	Switch, Handbrake	3784688 Switch, Handbrake LHD	-	1	Enquire
9	6R132853AA	CABLE ASSY - HANDBRAKE	6R132853AA CABLE ASSY - HANDBRAKE Vanquish S From (V) 501506 up to TBA	-	1	Enquire
9	6R132853AA	CABLE ASSY - HANDBRAKE	6R132853AA CABLE ASSY - HANDBRAKE Vanquish S From (V) TBA	-	1	Enquire
9	1R12304131AD	Cable, handbrake long	1R12304131AD Cable, handbrake long Up to (V) 501505	-	1	Enquire
9	1R12305239AB	CABLE ASSY H/BRAKE LONG (AUS)	1R12305239AB CABLE ASSY H/BRAKE LONG (AUS) Australia	-	1	Enquire
10	700046	Grommet, 23 panel hole	700046 Grommet, 23 panel hole	-	1	Enquire
11	700047	Grommet, 32 panel hole	700047 Grommet, 32 panel hole	-	1	Enquire
12	5R132A635AA	Cable, handbrake short	5R132A635AA Cable, handbrake short Vanquish S From (V) 501506 up to (V) TBA	-	1	Enquire
12	1R12305363AA	CABLE HANDBRAKE EXTENSION	1R12305363AA CABLE HANDBRAKE EXTENSION Not required with (AC) level cables	-	1	Enquire
12	1R12304132AD	Cable, handbrake short	1R12304132AD Cable, handbrake short Up to (V) 501505	-	1	Enquire
13	700262	SPRING CLIP-SPECIAL	700262 SPRING CLIP-SPECIAL	-	3	Enquire
14	1R12305794AB	ASSY PARK BRAKE CALIPER STRONGER SPRING RH	1R12305794AB ASSY PARK BRAKE CALIPER STRONGER SPRING RH Vanquish S From (V) 501506	-	1	Enquire
14	5R132N791AA	SPRING PARK BRAKE RETURN RH	5R132N791AA SPRING PARK BRAKE RETURN RH Vanquish S From (V) 501506	-	1	Enquire
14	F6DC2A602AC	Equaliser, handbrake	F6DC2A602AC Equaliser, handbrake Vanquish S From (V) 501506	-	1	Enquire
14	1R12305794AB	ASSY PARK BRAKE CALIPER STRONGER SPRING RH	1R12305794AB ASSY PARK BRAKE CALIPER STRONGER SPRING RH Up to (V) 501505	-	1	Enquire
14	1R12305412AA	SPRING PARK BRAKE RETURN RH	1R12305412AA SPRING PARK BRAKE RETURN RH Up to (V) 501505	-	1	Enquire
14	1R12304768AC	STIRRUP - HANDBRAKE	1R12304768AC STIRRUP - HANDBRAKE Up to (V) 501505	-	1	Enquire
14	1R12305242AA	LEVER -RHS HANDBRAKE CALIPER	1R12305242AA LEVER -RHS HANDBRAKE CALIPER Australia	-	1	Enquire
14	1R12305243AA	LEVER -LHS HANDBRAKE CALIPER	1R12305243AA LEVER -LHS HANDBRAKE CALIPER Australia	-	1	Enquire
14	1R12305468AB	COVER AND HANDBRAKE CABLE	1R12305468AB COVER AND HANDBRAKE CABLE Australia	-	1	Enquire
14	1R12305240AA	Bracket, handbrake caliper	1R12305240AA Bracket, handbrake caliper Australia	-	2	Enquire
14	1R12305241AA	LOCATOR - HANDBRAKE CALIPER	1R12305241AA LOCATOR - HANDBRAKE CALIPER Australia	-	2	Enquire
14	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head Australia	-	2	Enquire
14	700258	SCREW M8x25 HEX FLG	700258 SCREW M8x25 HEX FLG Australia	-	2	Enquire
14	700130	NUT M8 HEX P/T PLAS8	700130 NUT M8 HEX P/T PLAS8 Australia	-	2	Enquire
15	1R12305795AB	ASSY PARK BRAKE CALIPER STRONGER SPRING LH	1R12305795AB ASSY PARK BRAKE CALIPER STRONGER SPRING LH Vanquish S From (V) 501506	-	1	Enquire
15	5R132N791BA	SPRING PARK BRAKE RETURN LH	5R132N791BA SPRING PARK BRAKE RETURN LH Vanquish S From (V) 501506	-	1	Enquire
15	1R12305795AB	ASSY PARK BRAKE CALIPER STRONGER SPRING LH	1R12305795AB ASSY PARK BRAKE CALIPER STRONGER SPRING LH Up to (V) 501505	-	1	Enquire
15	1R12305413AA	SPRING PARK BRAKE RETURN LH	1R12305413AA SPRING PARK BRAKE RETURN LH Up to (V) 501505	-	1	Enquire
15	1R12305794AB	ASSY PARK BRAKE CALIPER STRONGER SPRING RH	1R12305794AB ASSY PARK BRAKE CALIPER STRONGER SPRING RH	-	1	Enquire
16	1R12280213AA	Caliper assy, handbrake, LH	1R12280213AA Caliper assy, handbrake, LH	-	1	Enquire
17	1R12303579AA	BOLT HANDBRAKE CALIPER TO KNUCKLE M8x65	1R12303579AA BOLT HANDBRAKE CALIPER TO KNUCKLE M8x65 Caliper to knuckle	-	2	Enquire
18	703707	BOLT-M10 X 80 HEX FLANGE HEAD GRADE 8.8	703707 BOLT-M10 X 80 HEX FLANGE HEAD GRADE 8.8 Caliper to knuckle	-	2	Enquire
19	1R122810201PK	BRAKE PAD SET - HAND BRAKE	1R122810201PK BRAKE PAD SET - HAND BRAKE	-	1	Enquire
20	699789	SPRYCO TIE-WRAP SWIVEL CLIP	699789 SPRYCO TIE-WRAP SWIVEL CLIP	-	2	Enquire
21	1R12302186AA	P CLIP 16/15	1R12302186AA P CLIP 16/15	-	4	Enquire
22	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	4	Enquire
23	1R12835303AA	Reinforcement, handbrake gaiter	1R12835303AA Reinforcement, handbrake gaiter Australia	-	1	Enquire
23	1R12835344AAW	Gaiter, handbrake lever	1R12835344AAW Gaiter, handbrake lever Australia	-	1	Enquire
23	2562716	BADGE `ASTON MARTIN MODULE STRG WHEEL	2562716 BADGE `ASTON MARTIN MODULE STRG WHEEL Australia	-	1	Enquire
23	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head LHD	-	2	Enquire
23	694891	P-CLIP	694891 P-CLIP LHD	-	2	Enquire
23	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head RHD	-	3	Enquire
23	694891	P-CLIP	694891 P-CLIP RHD	-	3	Enquire
23	1R12831236AAW	HANDBRAKE GAITER RH	1R12831236AAW HANDBRAKE GAITER RH	-	1	Enquire
23	1R12831237AAW	HANDBRAKE GAITER LH	1R12831237AAW HANDBRAKE GAITER LH	-	1	Enquire
23	700414	BLANKING GROMMET 32MM	700414 BLANKING GROMMET 32MM	-	1	Enquire
