Console Panel Armrest Stowage of Aston Martin Aston Martin V12 Zagato

View All

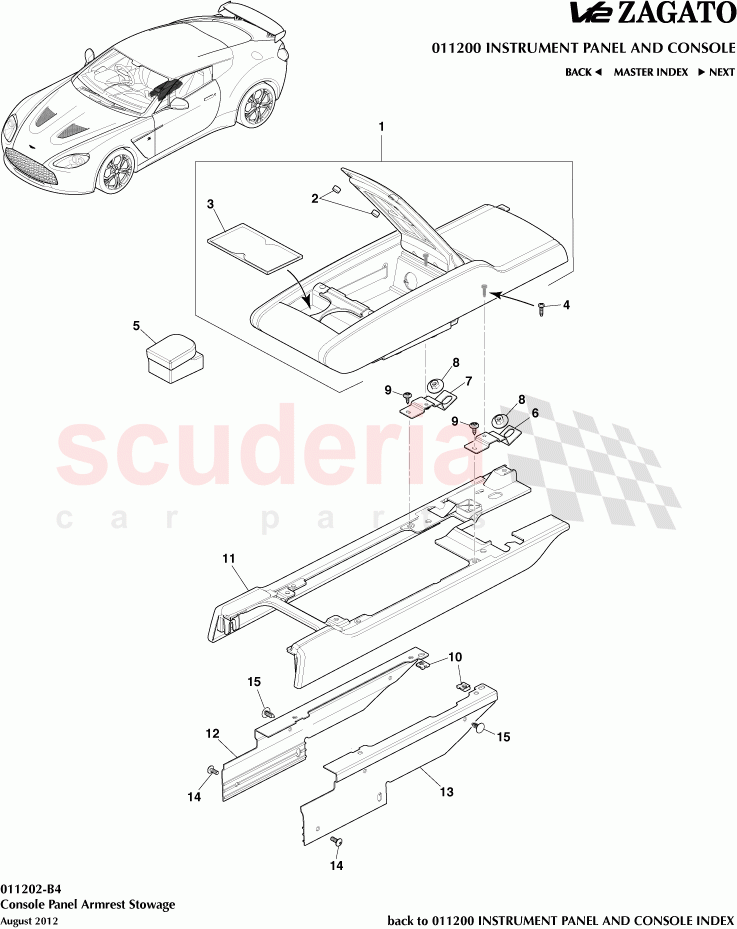

Aston Martin V12 Zagato - Console Panel Armrest Stowage

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G33C045C76AGW	Centre Console with Stowage	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4323697AA	Magnet and Bumpstop Set	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43040K60AA	MAT - PHONE SHELF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701556PK	Screw M5 x 16 Pan Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43044J16ABW	Elbow Support, Centre Console	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4313523AA	Bracket, Stowage Compartment Mounting, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4313522AA	Bracket, Stowage Compartment Mounting, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704327	Nut and Washer, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G33C067446AAW	Panel Assembly, Console	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43043B04AB	Reinforcement Assy, Console Panel, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43043B05AB	Reinforcement Assy, Console Panel, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9G33C045C76AGW	Centre Console with Stowage	9G33C045C76AGW Centre Console with Stowage	-	1	Enquire
2	8G4323697AA	Magnet and Bumpstop Set	8G4323697AA Magnet and Bumpstop Set	-	2	Enquire
3	8G43040K60AA	MAT - PHONE SHELF	8G43040K60AA MAT - PHONE SHELF	-	1	Enquire
4	701556PK	Screw M5 x 16 Pan Head (Pack of 10)	701556PK Screw M5 x 16 Pan Head (Pack of 10) Pack of 10	-	4	Enquire
5	9G43044J16ABW	Elbow Support, Centre Console	9G43044J16ABW Elbow Support, Centre Console	-	1	Enquire
6	8G4313523AA	Bracket, Stowage Compartment Mounting, LH	8G4313523AA Bracket, Stowage Compartment Mounting, LH	-	1	Enquire
7	8G4313522AA	Bracket, Stowage Compartment Mounting, RH	8G4313522AA Bracket, Stowage Compartment Mounting, RH	-	1	Enquire
8	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	2	Enquire
9	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) Pack of 10	-	6	Enquire
10	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	6	Enquire
11	8G33C067446AAW	Panel Assembly, Console	8G33C067446AAW Panel Assembly, Console	-	1	Enquire
12	4G43043B04AB	Reinforcement Assy, Console Panel, RH	4G43043B04AB Reinforcement Assy, Console Panel, RH	-	1	Enquire
13	4G43043B05AB	Reinforcement Assy, Console Panel, LH	4G43043B05AB Reinforcement Assy, Console Panel, LH	-	1	Enquire
14	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	-	4	Enquire
15	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	-	4	Enquire
