Front Floor Trim RHD of Aston Martin Aston Martin V12 Zagato

View All

Aston Martin V12 Zagato - Front Floor Trim RHD

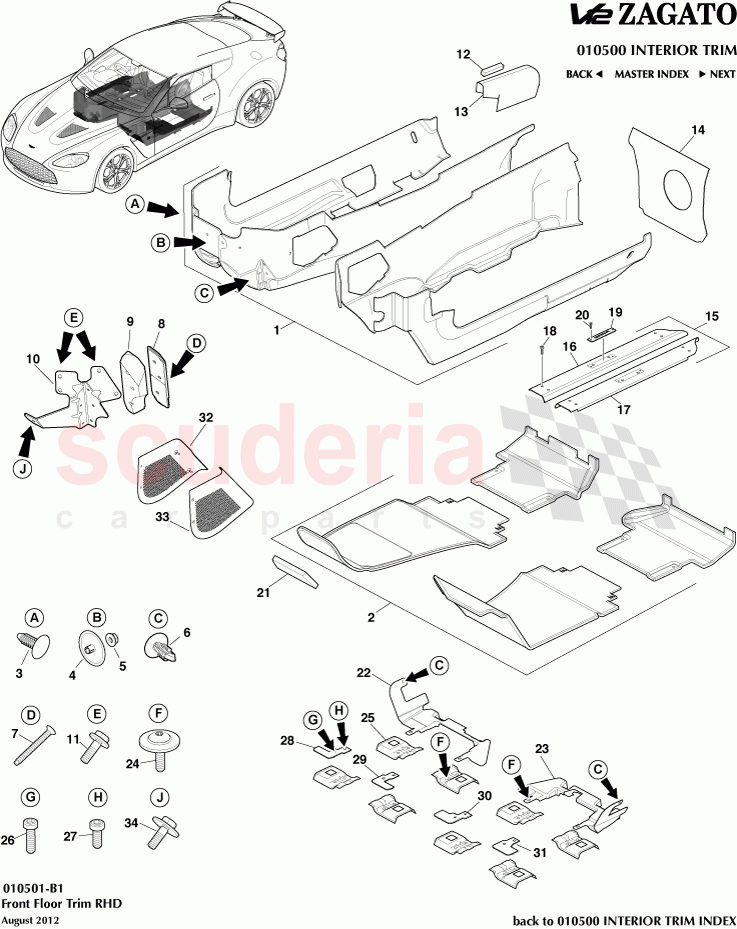

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AG33281B10CAW	Kit Assembly, Side Carpet, B&O	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3313925AA	Push On Button, M5 x 35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G3312021AA	Cover Plate, Foot Rest, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33044J08AA	Energy Absorber, Footrest	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G333N234AB	BRACKET FOOTREST RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703026	Screw, M5 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43M4D4515AA	Foam Strip, Handbrake Gaiter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33831236AAW	HANDBRAKE GAITER ASSY RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310K973ACW	Carpet Assembly, Heelboard, LH, B&O	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3313242AE	Kit, Door Scuff Plate, Graphite	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NSS	Seat Belt Loops Frt/ Rear and Left/Right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NSS	Seat Belt Loops Frt/ Rear and Left/Right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33SS106209AB	Bolt, M6 x 20, Skt Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY83132A50AA	Name Plate, Front Sill Scuff Plate, Zagato	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697687	SCREW No6 x 9.5 CSK BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4311458AB	DASH PANEL FOAM BLOCK RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33100A90AA	Support, Rear Floor, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33100A91AA	Support, Rear Floor, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4325954AC	Screw and washer M5 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33M1H403AA	Cover, Floor Pan	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368D11BA	Screw, M5 x 20, Cap Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368D11AA	Screw, M5 x 12, Cap Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33666A40AB	Finisher, Carpet, Common, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33666A41AB	Finisher, Carpet, Common, LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33666A42AA	Finisher, Carpet, Passenger Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33666A43AA	Finisher, Carpet, Passenger Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33311A76CA	Speaker Grille, Footwell, RH, B&O	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33311A77CA	Speaker Grille, Footwell, LH, B&O	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9G33281B10DDW	Kit Assembly, Side Carpet, B&O	9G33281B10DDW Kit Assembly, Side Carpet, B&O Heavyweight	-	1	Enquire
-	AD23281B10BBW	Kit Assembly, Side Carpet, Non B&O	AD23281B10BBW Kit Assembly, Side Carpet, Non B&O Lightweight	-	1	Enquire
-	6G33281B10BEW	Kit Assembly, Side Carpet, Non B&O	6G33281B10BEW Kit Assembly, Side Carpet, Non B&O Heavyweight	-	1	Enquire
-	CD3312021CA	Cover Plate, Foot Rest, RH	CD3312021CA Cover Plate, Foot Rest, RH Black Pedals	-	1	Enquire
-	9G3310K973ACW	Carpet Assembly, Heelboard, LH, B&O	9G3310K973ACW Carpet Assembly, Heelboard, LH, B&O Heavyweight	-	1	Enquire
-	BG3313242AD	Kit, Door Scuff Plate, Black	BG3313242AD Kit, Door Scuff Plate, Black	-	1	Enquire
-	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 15	-	1	Enquire
-	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 15	-	1	Enquire
-	4G43132A50AC	Name Plate, Front Sill Scuff Plate, Blank	4G43132A50AC Name Plate, Front Sill Scuff Plate, Blank	-	2	Enquire
-	6G33100N00AA	Adhesive Tape, Double Sided	6G33100N00AA Adhesive Tape, Double Sided	-	A/R	Enquire
1	AG33281B10CAW	Kit Assembly, Side Carpet, B&O	AG33281B10CAW Kit Assembly, Side Carpet, B&O Lightweight	-	1	Enquire
3	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20) Pack of 20	-	2	Enquire
4	6G3313925AA	Push On Button, M5 x 35	6G3313925AA Push On Button, M5 x 35	-	3	Enquire
5	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	3	Enquire
6	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) Pack of 20	-	4	Enquire
7	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK	-	3	Enquire
8	9G3312021AA	Cover Plate, Foot Rest, RH	9G3312021AA Cover Plate, Foot Rest, RH Silver Pedals	-	1	Enquire
9	6G33044J08AA	Energy Absorber, Footrest	6G33044J08AA Energy Absorber, Footrest	-	1	Enquire
10	6G333N234AB	BRACKET FOOTREST RHD	6G333N234AB BRACKET FOOTREST RHD	-	1	Enquire
11	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head	-	4	Enquire
12	4G43M4D4515AA	Foam Strip, Handbrake Gaiter	4G43M4D4515AA Foam Strip, Handbrake Gaiter	-	1	Enquire
13	6G33831236AAW	HANDBRAKE GAITER ASSY RHD	6G33831236AAW HANDBRAKE GAITER ASSY RHD	-	1	Enquire
14	AG3310K973ACW	Carpet Assembly, Heelboard, LH, B&O	AG3310K973ACW Carpet Assembly, Heelboard, LH, B&O Lightweight	-	1	Enquire
15	8G3313242AE	Kit, Door Scuff Plate, Graphite	8G3313242AE Kit, Door Scuff Plate, Graphite	-	1	Enquire
16	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 15	-	1	Enquire
17	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 15	-	1	Enquire
18	6G33SS106209AB	Bolt, M6 x 20, Skt Hd	6G33SS106209AB Bolt, M6 x 20, Skt Hd	-	12	Enquire
19	CY83132A50AA	Name Plate, Front Sill Scuff Plate, Zagato	CY83132A50AA Name Plate, Front Sill Scuff Plate, Zagato	-	2	Enquire
20	697687	SCREW No6 x 9.5 CSK BLACK	697687 SCREW No6 x 9.5 CSK BLACK	-	4	Enquire
21	4G4311458AB	DASH PANEL FOAM BLOCK RH	4G4311458AB DASH PANEL FOAM BLOCK RH	-	1	Enquire
22	6G33100A90AA	Support, Rear Floor, RH	6G33100A90AA Support, Rear Floor, RH	-	1	Enquire
23	6G33100A91AA	Support, Rear Floor, LH	6G33100A91AA Support, Rear Floor, LH	-	1	Enquire
24	7G4325954AC	Screw and washer M5 x 16	7G4325954AC Screw and washer M5 x 16	-	8	Enquire
25	6G33M1H403AA	Cover, Floor Pan	6G33M1H403AA Cover, Floor Pan	-	8	Enquire
26	6G3368D11BA	Screw, M5 x 20, Cap Head	6G3368D11BA Screw, M5 x 20, Cap Head	-	4	Enquire
27	6G3368D11AA	Screw, M5 x 12, Cap Head	6G3368D11AA Screw, M5 x 12, Cap Head	-	4	Enquire
28	6G33666A40AB	Finisher, Carpet, Common, RHS	6G33666A40AB Finisher, Carpet, Common, RHS	-	1	Enquire
29	6G33666A41AB	Finisher, Carpet, Common, LHS	6G33666A41AB Finisher, Carpet, Common, LHS	-	1	Enquire
30	6G33666A42AA	Finisher, Carpet, Passenger Side, RH	6G33666A42AA Finisher, Carpet, Passenger Side, RH	-	1	Enquire
31	6G33666A43AA	Finisher, Carpet, Passenger Side, LH	6G33666A43AA Finisher, Carpet, Passenger Side, LH	-	1	Enquire
32	9D33311A76CA	Speaker Grille, Footwell, RH, B&O	9D33311A76CA Speaker Grille, Footwell, RH, B&O Includes Fixings	-	1	Enquire
33	9D33311A77CA	Speaker Grille, Footwell, LH, B&O	9D33311A77CA Speaker Grille, Footwell, LH, B&O Includes Fixings	-	1	Enquire
34	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	1	Enquire
