Centre Stack Trimmed Panels of Aston Martin Aston Martin V12 Zagato

View All

Aston Martin V12 Zagato - Centre Stack Trimmed Panels

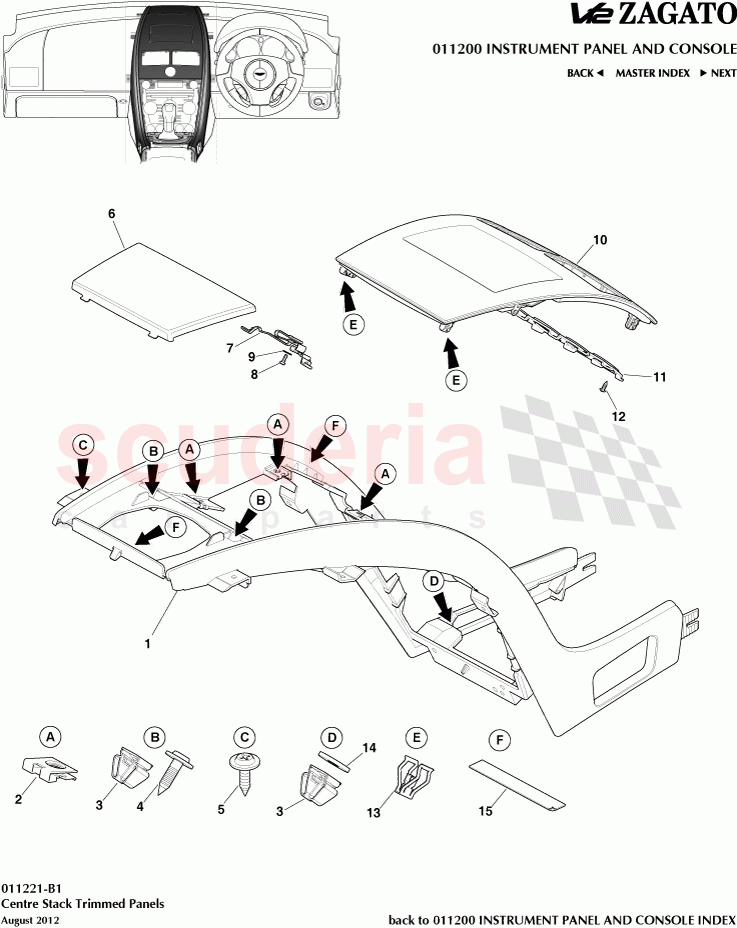

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CG3355210AAW	PANEL ASSEMBLY CENTRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704764	Nut, Push-on, M4.2 x 1.41	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W703268S443	Screw, Self Tapping, 4.8 x 1.59 x 19	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33C046A26AC	Grille Assy, Centre Speaker, Instrument Panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43204A34AB	Clip, Console Tether Strap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707137	SCREW-M4 x 12 PAN HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D3346662AA	Washer, 14mm, 43 ID 14 OD 0.8 Thk	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BD33045J10CC	NAV SRRND BLK CF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3314A462AJ	RETAINER CONTROL SWITCH - VENEER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703178	M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4346662AAPK	WSHR SPACING 2mm(10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9G43C046A26BA	Grille Assy, Centre Speaker, Instrument Panel	9G43C046A26BA Grille Assy, Centre Speaker, Instrument Panel Non B&O	-	1	Enquire
-	CG43045J10PE	NAV SURROUND PIANO	CG43045J10PE NAV SURROUND PIANO	-	1	Enquire
1	CG3355210AAW	PANEL ASSEMBLY CENTRE	CG3355210AAW PANEL ASSEMBLY CENTRE Includes Items 2 and 3	-	1	Enquire
2	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	5	Enquire
3	704764	Nut, Push-on, M4.2 x 1.41	704764 Nut, Push-on, M4.2 x 1.41	-	4	Enquire
4	W703268S443	Screw, Self Tapping, 4.8 x 1.59 x 19	W703268S443 Screw, Self Tapping, 4.8 x 1.59 x 19	-	2	Enquire
5	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) Pack of 10	-	6	Enquire
6	9D33C046A26AC	Grille Assy, Centre Speaker, Instrument Panel	9D33C046A26AC Grille Assy, Centre Speaker, Instrument Panel B&O	-	1	Enquire
7	CG43204A34AB	Clip, Console Tether Strap	CG43204A34AB Clip, Console Tether Strap	-	2	Enquire
8	707137	SCREW-M4 x 12 PAN HD	707137 SCREW-M4 x 12 PAN HD	-	2	Enquire
9	9D3346662AA	Washer, 14mm, 43 ID 14 OD 0.8 Thk	9D3346662AA Washer, 14mm, 43 ID 14 OD 0.8 Thk	-	2	Enquire
10	BD33045J10CC	NAV SRRND BLK CF	BD33045J10CC NAV SRRND BLK CF	-	1	Enquire
11	8D3314A462AJ	RETAINER CONTROL SWITCH - VENEER	8D3314A462AJ RETAINER CONTROL SWITCH - VENEER	-	1	Enquire
12	703178	M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	703178 M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	-	12	Enquire
13	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20) Pack of 20	-	4	Enquire
14	4G4346662AAPK	WSHR SPACING 2mm(10)	4G4346662AAPK WSHR SPACING 2mm(10) RH Side Only	-	1	Enquire
15	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	7G43C2437AAW CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE Roll 50m	-	A/R	Enquire
