Front Floor Trim LHD of Aston Martin Aston Martin V12 Zagato

View All

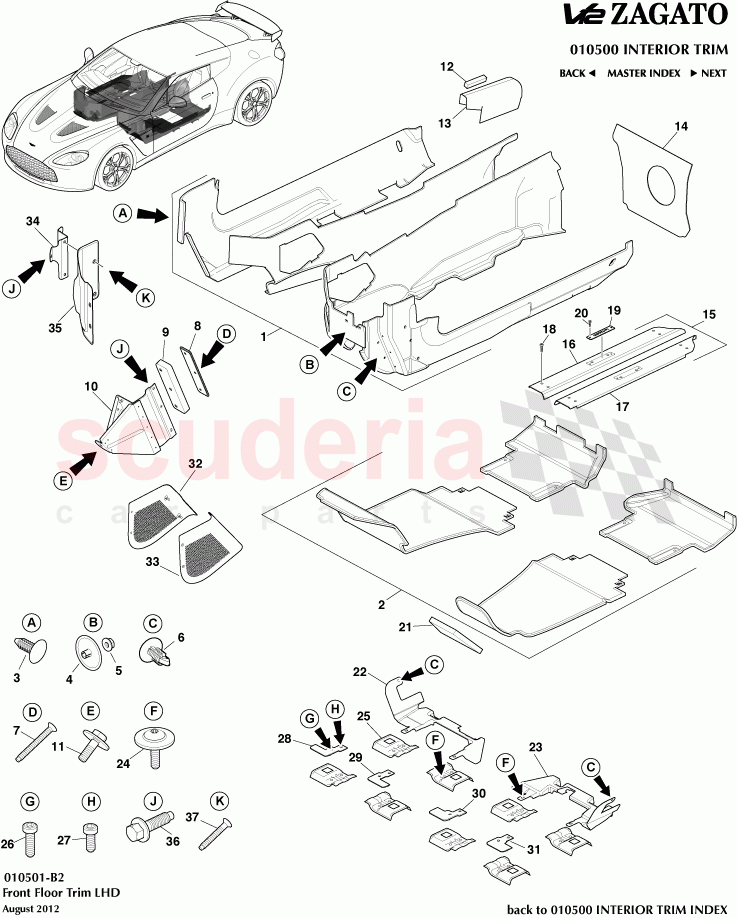

Aston Martin V12 Zagato - Front Floor Trim LHD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AG33281B11CAW	Kit Assembly, Side Carpet, B&O	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3313925AA	Push On Button, M5 x 35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4312020BA	LHD FOOTREST TOP PAD ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43044J09AC	ENERY ABSORBING BLOCK LHD FOOTREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433N328BE	Bracket, Foot Rest	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43M4D4515AA	Foam Strip, Handbrake Gaiter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33831237AAW	HANDBRAKE GAITER ASSY LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310K973ACW	Carpet Assembly, Heelboard, LH, B&O	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3313242AE	Kit, Door Scuff Plate, Graphite	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NSS	Seat Belt Loops Frt/ Rear and Left/Right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NSS	Seat Belt Loops Frt/ Rear and Left/Right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33SS106209AB	Bolt, M6 x 20, Skt Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY83132A50AA	Name Plate, Front Sill Scuff Plate, Zagato	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697687	SCREW No6 x 9.5 CSK BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4311459AB	DASH PANEL FOAM BLOCK LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33100A90AA	Support, Rear Floor, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33100A91AA	Support, Rear Floor, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4325954AC	Screw and washer M5 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33M1H403AA	Cover, Floor Pan	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368D11BA	Screw, M5 x 20, Cap Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368D11AA	Screw, M5 x 12, Cap Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33666A40AB	Finisher, Carpet, Common, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33666A41AB	Finisher, Carpet, Common, LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33666A42AA	Finisher, Carpet, Passenger Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33666A43AA	Finisher, Carpet, Passenger Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33311A76CA	Speaker Grille, Footwell, RH, B&O	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33311A77CA	Speaker Grille, Footwell, LH, B&O	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432B099AD	Mounting Bracket, Accelerator Scuff Plate, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318449BD	ACCELERATOR SCUFF PLATE LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703026	Screw, M5 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433L657AA	Screw, M5 x 20, Countersunk, Black	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9G33281B11DGW	PM KIT ASY SD CP LHD	9G33281B11DGW PM KIT ASY SD CP LHD Heavyweight	-	1	Enquire
-	AD23281B11BCW	Kit Assembly, Side Carpet, Non B&O	AD23281B11BCW Kit Assembly, Side Carpet, Non B&O Lightweight	-	1	Enquire
-	6G33281B11BFW	Kit Assembly, Side Carpet, Non B&O	6G33281B11BFW Kit Assembly, Side Carpet, Non B&O Heavyweight	-	1	Enquire
-	CD3312020CA	Cover Plate, Foot Rest	CD3312020CA Cover Plate, Foot Rest Black Pedals	-	1	Enquire
-	9G3310K973ACW	Carpet Assembly, Heelboard, LH, B&O	9G3310K973ACW Carpet Assembly, Heelboard, LH, B&O Heavyweight	-	1	Enquire
-	BG3313242AD	Kit, Door Scuff Plate, Black	BG3313242AD Kit, Door Scuff Plate, Black	-	1	Enquire
-	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 15	-	1	Enquire
-	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 15	-	1	Enquire
-	4G43132A50AC	Name Plate, Front Sill Scuff Plate, Blank	4G43132A50AC Name Plate, Front Sill Scuff Plate, Blank	-	2	Enquire
-	6G33100N00AA	Adhesive Tape, Double Sided	6G33100N00AA Adhesive Tape, Double Sided	-	A/R	Enquire
1	AG33281B11CAW	Kit Assembly, Side Carpet, B&O	AG33281B11CAW Kit Assembly, Side Carpet, B&O Lightweight	-	1	Enquire
3	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20) Pack of 20	-	1	Enquire
4	6G3313925AA	Push On Button, M5 x 35	6G3313925AA Push On Button, M5 x 35	-	2	Enquire
5	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	2	Enquire
6	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) Pack of 20	-	4	Enquire
7	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK	-	3	Enquire
8	9G4312020BA	LHD FOOTREST TOP PAD ASSY	9G4312020BA LHD FOOTREST TOP PAD ASSY Silver Pedals	-	1	Enquire
9	4G43044J09AC	ENERY ABSORBING BLOCK LHD FOOTREST	4G43044J09AC ENERY ABSORBING BLOCK LHD FOOTREST	-	1	Enquire
10	4G433N328BE	Bracket, Foot Rest	4G433N328BE Bracket, Foot Rest	-	1	Enquire
11	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	1	Enquire
12	4G43M4D4515AA	Foam Strip, Handbrake Gaiter	4G43M4D4515AA Foam Strip, Handbrake Gaiter	-	1	Enquire
13	6G33831237AAW	HANDBRAKE GAITER ASSY LHD	6G33831237AAW HANDBRAKE GAITER ASSY LHD	-	1	Enquire
14	AG3310K973ACW	Carpet Assembly, Heelboard, LH, B&O	AG3310K973ACW Carpet Assembly, Heelboard, LH, B&O Lightweight	-	1	Enquire
15	8G3313242AE	Kit, Door Scuff Plate, Graphite	8G3313242AE Kit, Door Scuff Plate, Graphite	-	1	Enquire
16	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 15	-	1	Enquire
17	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 15	-	1	Enquire
18	6G33SS106209AB	Bolt, M6 x 20, Skt Hd	6G33SS106209AB Bolt, M6 x 20, Skt Hd	-	12	Enquire
19	CY83132A50AA	Name Plate, Front Sill Scuff Plate, Zagato	CY83132A50AA Name Plate, Front Sill Scuff Plate, Zagato	-	2	Enquire
20	697687	SCREW No6 x 9.5 CSK BLACK	697687 SCREW No6 x 9.5 CSK BLACK	-	4	Enquire
21	4G4311459AB	DASH PANEL FOAM BLOCK LH	4G4311459AB DASH PANEL FOAM BLOCK LH	-	1	Enquire
22	6G33100A90AA	Support, Rear Floor, RH	6G33100A90AA Support, Rear Floor, RH	-	1	Enquire
23	6G33100A91AA	Support, Rear Floor, LH	6G33100A91AA Support, Rear Floor, LH	-	1	Enquire
24	7G4325954AC	Screw and washer M5 x 16	7G4325954AC Screw and washer M5 x 16	-	8	Enquire
25	6G33M1H403AA	Cover, Floor Pan	6G33M1H403AA Cover, Floor Pan	-	8	Enquire
26	6G3368D11BA	Screw, M5 x 20, Cap Head	6G3368D11BA Screw, M5 x 20, Cap Head	-	4	Enquire
27	6G3368D11AA	Screw, M5 x 12, Cap Head	6G3368D11AA Screw, M5 x 12, Cap Head	-	4	Enquire
28	6G33666A40AB	Finisher, Carpet, Common, RHS	6G33666A40AB Finisher, Carpet, Common, RHS	-	1	Enquire
29	6G33666A41AB	Finisher, Carpet, Common, LHS	6G33666A41AB Finisher, Carpet, Common, LHS	-	1	Enquire
30	6G33666A42AA	Finisher, Carpet, Passenger Side, RH	6G33666A42AA Finisher, Carpet, Passenger Side, RH	-	1	Enquire
31	6G33666A43AA	Finisher, Carpet, Passenger Side, LH	6G33666A43AA Finisher, Carpet, Passenger Side, LH	-	1	Enquire
32	9D33311A76CA	Speaker Grille, Footwell, RH, B&O	9D33311A76CA Speaker Grille, Footwell, RH, B&O Includes Fixings	-	1	Enquire
33	9D33311A77CA	Speaker Grille, Footwell, LH, B&O	9D33311A77CA Speaker Grille, Footwell, LH, B&O Includes Fixings	-	1	Enquire
34	4G432B099AD	Mounting Bracket, Accelerator Scuff Plate, LH	4G432B099AD Mounting Bracket, Accelerator Scuff Plate, LH	-	1	Enquire
35	4G4318449BD	ACCELERATOR SCUFF PLATE LHD	4G4318449BD ACCELERATOR SCUFF PLATE LHD	-	1	Enquire
36	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head	-	6	Enquire
37	4G433L657AA	Screw, M5 x 20, Countersunk, Black	4G433L657AA Screw, M5 x 20, Countersunk, Black	-	4	Enquire
