Body Rear Environment Trim Assembly

Aston Martin V12 Zagato

Find Your Part

Aston Martin V12 Zagato - Body Rear Environment Trim Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8G33674A09ABW Finisher, Cabin Rear Upper Enquire To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.21 IN STOCK
Photo Part No Description Price (each) Stock
4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) $8.88 To Order
Photo Part No Description Price (each) Stock
701448 Spring Nut, U Type, 4.2 x 2.1 $1.25 IN STOCK
Photo Part No Description Price (each) Stock
CY8360028AAW Trim Panel Assy, Bulkhead Centre Rear, Plain $6,267.53 To Order
Photo Part No Description Price (each) Stock
CY8331470AAW Retention Strap Assy, Bulkhead Rear Enquire To Order
Photo Part No Description Price (each) Stock
CY83431C34AA Buckle Badge $496.87 To Order
Photo Part No Description Price (each) Stock
702522 M5 GRADE 8 HEX FLANGE ALMETTAL LOCKING NUT $0.62 To Order
Photo Part No Description Price (each) Stock
AD2311587AAW Door Assy, Stowage Compartment $1,163.24 To Order
Photo Part No Description Price (each) Stock
6G33674A08AB Finisher, Rear Cabin $121.54 To Order
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) $2.80 IN STOCK
Photo Part No Description Price (each) Stock
6G33314A96AC BRACKET ASSY QTR REAR PANEL $38.85 To Order
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head $1.05 IN STOCK
Photo Part No Description Price (each) Stock
AD23674A06AAW Panel Assy, Rear Heel Board, RH Enquire To Order
Photo Part No Description Price (each) Stock
AD23275A08BAW Cover Assy, Rear Floor Panel, LH $211.20 To Order
Photo Part No Description Price (each) Stock
4G4346660AA Foam Block, Parcel Shelf $23.16 To Order
View All

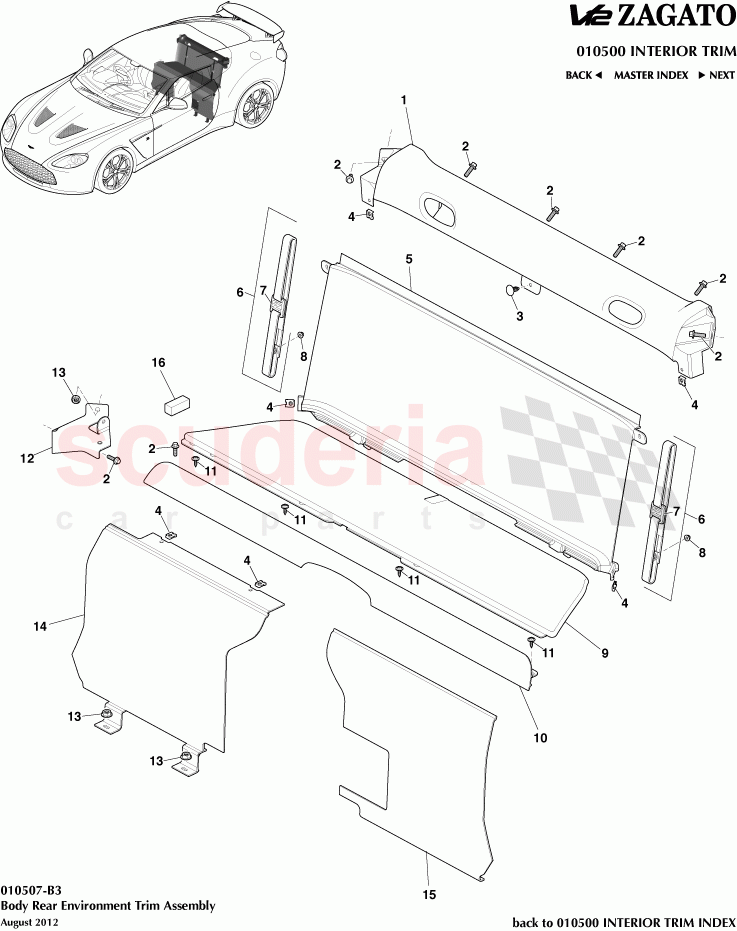

Body Rear Environment Trim Assembly of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CY8360028BAW
Trim Panel Assy, Bulkhead Centre Rear, Quilted
Includes Items 4,6 and 8 		- 1 Enquire
- 6G3311587BDW
DR ASSY STWG CMPT
Heavyweight Carpet 		$655.21 1
- 6G33674A06BCW
PNL ASY RR HL BD RH
Heavyweight Carpet, Includes Item 4 		$519.53 1
- 6G33275A08BBW
CUR ASSY RR FCR TR
Heavyweight Carpet 		$231.65 1
1 8G33674A09ABW
Finisher, Cabin Rear Upper
Includes item 4 		- 1 Enquire
2 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.21 10
3 4G43MXC1800AAPK
Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)
Pack of 20 		$8.88 1
4 701448
Spring Nut, U Type, 4.2 x 2.1
IN STOCK 		$1.25 6
5 CY8360028AAW
Trim Panel Assy, Bulkhead Centre Rear, Plain
Includes Items 4,6 and 8 		$6,267.53 1
6 CY8331470AAW
Retention Strap Assy, Bulkhead Rear 		- 2 Enquire
7 CY83431C34AA
Buckle Badge 		$496.87 2
8 702522
M5 GRADE 8 HEX FLANGE ALMETTAL LOCKING NUT 		$0.62 2
9 AD2311587AAW
Door Assy, Stowage Compartment
Lightweight Carpet 		$1,163.24 1
10 6G33674A08AB
Finisher, Rear Cabin 		$121.54 1
11 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
Pack of 10
IN STOCK 		$2.80 4
12 6G33314A96AC
BRACKET ASSY QTR REAR PANEL 		$38.85 1
13 702944
Nut, M6, Hex Flanged Head
IN STOCK 		$1.05 3
14 AD23674A06AAW
Panel Assy, Rear Heel Board, RH
Lightweight Carpet, Includes Item 4 		- 1 Enquire
15 AD23275A08BAW
Cover Assy, Rear Floor Panel, LH
Lightweight Carpet 		$211.20 1
16 4G4346660AA
Foam Block, Parcel Shelf 		$23.16 1
