Route Guidance- Bluetooth Module

Aston Martin V12 Zagato

Find Your Part

Aston Martin V12 Zagato - Route Guidance- Bluetooth Module

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FD433710167 BLUETOOTH MODULE Enquire To Order
Photo Part No Description Price (each) Stock
703278 Screw, M6 x 10, Flange Hex Head Enquire To Order
Photo Part No Description Price (each) Stock
8D3319A393AB Bracket, Blue Tooth Phone Module, RHD Enquire To Order
Photo Part No Description Price (each) Stock
W703268S443 Screw, Self Tapping, 4.8 x 1.59 x 19 Enquire To Order
View All

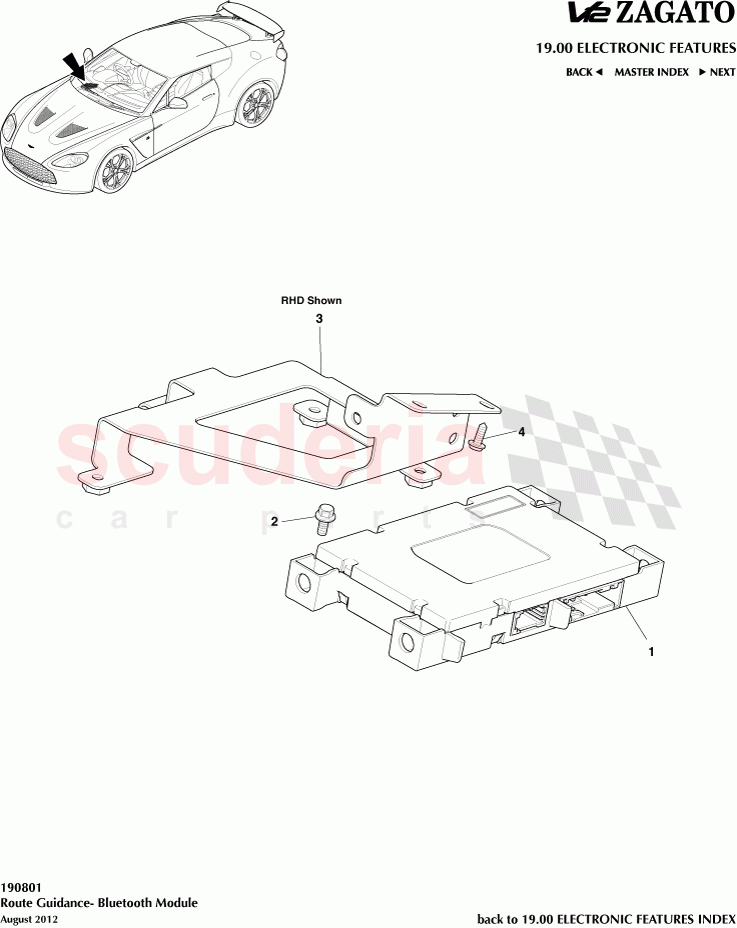

Route Guidance- Bluetooth Module of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D3319A393BB
Bracket, Blue Tooth Phone Module, LHD
LHD 		- 1 Enquire
1 FD433710167
BLUETOOTH MODULE 		- 1 Enquire
2 703278
Screw, M6 x 10, Flange Hex Head 		- 3 Enquire
3 8D3319A393AB
Bracket, Blue Tooth Phone Module, RHD
RHD 		- 1 Enquire
4 W703268S443
Screw, Self Tapping, 4.8 x 1.59 x 19 		- 3 Enquire
