Fusebox Assembly of Aston Martin Aston Martin V12 Zagato

View All

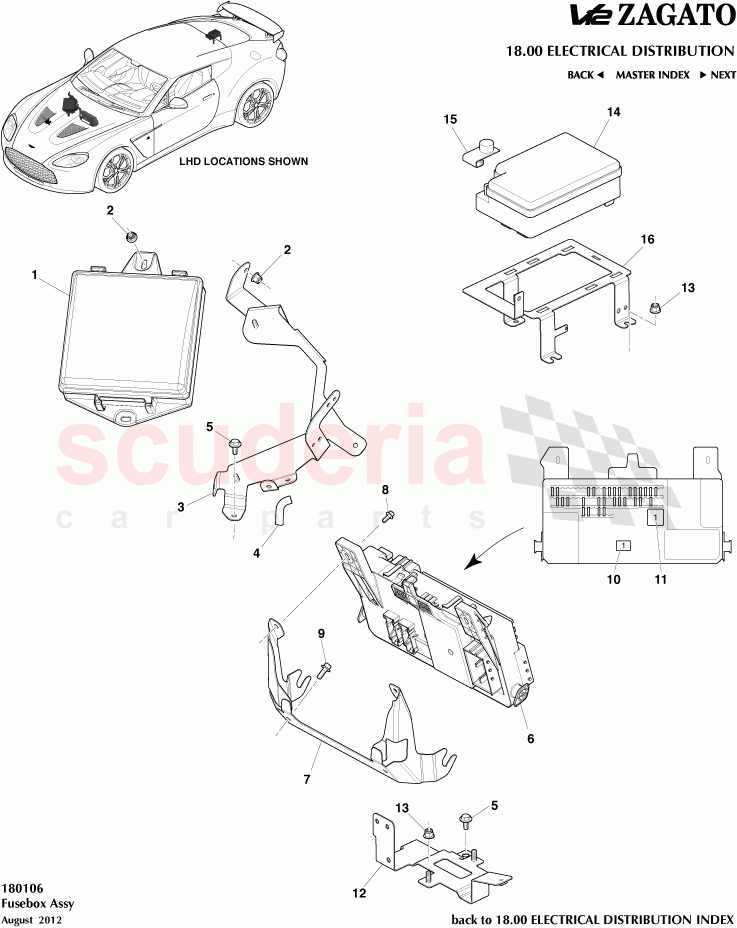

Aston Martin V12 Zagato - Fusebox Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BG3314A173AB	Fuse Box Assembly, Engine Bay	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2314A173CD	ENG BAY FBOX BRKT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L41041AA	Edge Strip, Black 2 x 40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4314C245AA	Central Electronic Module - CEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313B525BG	Bracket, Cabin Fuse Box CEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702299	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3314N072AE	Bracket, Fuse Box, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314A073AJ	Fusebox, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3785236	Protector, Power Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3314A301AD	Bracket, Boot Fusebox	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD2314A173BC	ENG BAY FBOX BRKT RH	AD2314A173BC ENG BAY FBOX BRKT RH RHD	-	1	Enquire
-	8D3314N072BD	Bracket, Fuse Box, RHD	8D3314N072BD Bracket, Fuse Box, RHD RHD	-	1	Enquire
-	4G433710962	FUSE 80 AMP- COOLING FAN MOTOR	4G433710962 FUSE 80 AMP- COOLING FAN MOTOR	-	1	Enquire
-	4G433710264	FUSE 60 AMP-YELLOW COOLING FAN MOTOR	4G433710264 FUSE 60 AMP-YELLOW COOLING FAN MOTOR	-	1	Enquire
-	3723422	Fuse, Midi 5A	3723422 Fuse, Midi 5A	-	1	Enquire
-	3723423	Fuse Midi 7.5A	3723423 Fuse Midi 7.5A	-	1	Enquire
-	3723424	Fuse, Midi 10A	3723424 Fuse, Midi 10A	-	1	Enquire
-	3723425	Fuse, Midi 15A	3723425 Fuse, Midi 15A	-	1	Enquire
-	3723426	Fuse, Midi 20A	3723426 Fuse, Midi 20A	-	1	Enquire
-	3723427	Fuse, Midi 25A	3723427 Fuse, Midi 25A	-	1	Enquire
-	3723428	Fuse, Midi 30A	3723428 Fuse, Midi 30A	-	1	Enquire
-	4G433710578PK	MINI FUSE-5A PK 10	4G433710578PK MINI FUSE-5A PK 10 Pack of 10	-	1	Enquire
-	4G433710579PK	MINI FUSE-7.5A PK 10	4G433710579PK MINI FUSE-7.5A PK 10 Pack of 10	-	1	Enquire
-	4G433710580PK	MINI FUSE-10A PK 10	4G433710580PK MINI FUSE-10A PK 10 Pack of 10	-	1	Enquire
-	4G433710581PK	MINI FUSE-15A PK 10	4G433710581PK MINI FUSE-15A PK 10 Pack of 10	-	1	Enquire
-	4G433710582PK	MINI FUSE-20A PK 10	4G433710582PK MINI FUSE-20A PK 10 Pack of 10	-	1	Enquire
-	4G433710583PK	MINI FUSE-25A PK 10	4G433710583PK MINI FUSE-25A PK 10 Pack of 10	-	1	Enquire
1	BG3314A173AB	Fuse Box Assembly, Engine Bay	BG3314A173AB Fuse Box Assembly, Engine Bay	-	1	Enquire
2	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	2	Enquire
3	AD2314A173CD	ENG BAY FBOX BRKT LH	AD2314A173CD ENG BAY FBOX BRKT LH LHD	-	1	Enquire
4	4G43L41041AA	Edge Strip, Black 2 x 40	4G43L41041AA Edge Strip, Black 2 x 40	-	1	Enquire
5	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	2	Enquire
6	8G4314C245AA	Central Electronic Module - CEM	8G4314C245AA Central Electronic Module - CEM	-	1	Enquire
7	4G4313B525BG	Bracket, Cabin Fuse Box CEM	4G4313B525BG Bracket, Cabin Fuse Box CEM	-	1	Enquire
8	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	697320 SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	-	2	Enquire
9	702299	Screw, M6 x 12, Hex Flange Head	702299 Screw, M6 x 12, Hex Flange Head	-	2	Enquire
12	8D3314N072AE	Bracket, Fuse Box, LHD	8D3314N072AE Bracket, Fuse Box, LHD LHD	-	1	Enquire
13	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	-	5	Enquire
14	4G4314A073AJ	Fusebox, Rear	4G4314A073AJ Fusebox, Rear	-	1	Enquire
15	3785236	Protector, Power Stud	3785236 Protector, Power Stud	-	1	Enquire
16	6G3314A301AD	Bracket, Boot Fusebox	6G3314A301AD Bracket, Boot Fusebox	-	1	Enquire
