Front Seatbelt Assembly of Aston Martin Aston Martin V12 Zagato

View All

Aston Martin V12 Zagato - Front Seatbelt Assembly

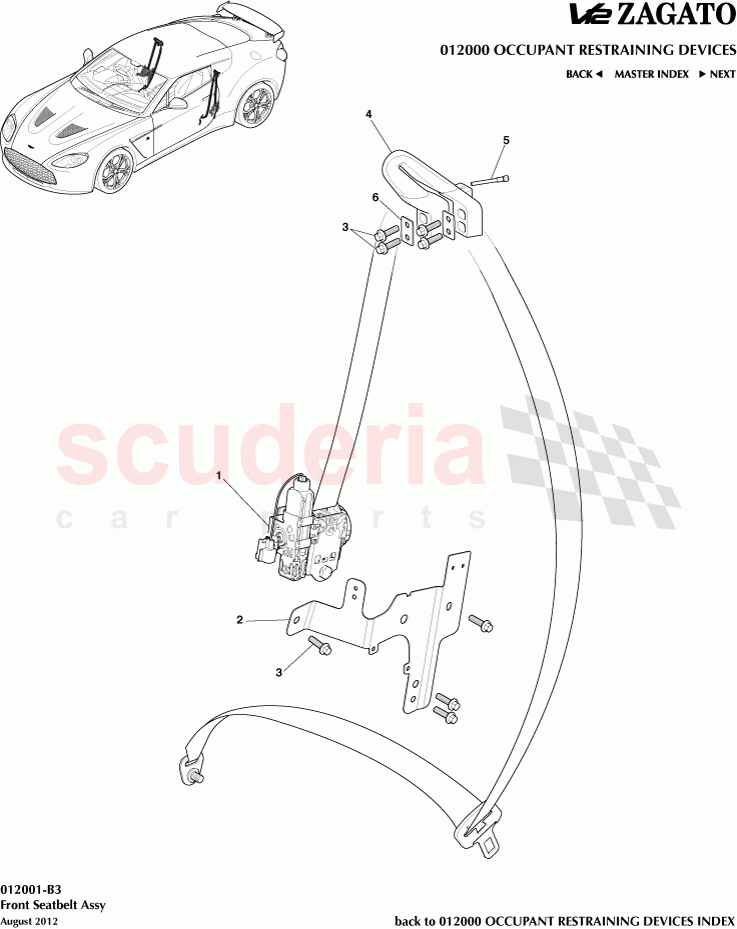

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G33611B71ABW	SEAT BELT ASSY DRIVER RHD (WARM CHARCOAL)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3360258AB	REINF FRT ST BEL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33611B10CA	D LOOP RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335784AA	Pin, Front Seatbelt Guide	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33610D36AA	Plate, Front Seatbelt Anchor Bracket	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6G33611B71BBW	SEATBELT & RETRACTOR AST FRT DRIVER RHD (FLINT)	6G33611B71BBW SEATBELT & RETRACTOR AST FRT DRIVER RHD (FLINT) Flint	-	1	Enquire
-	6G33611B69ACW	FRONT SEATBELT ASSY PASSENGER RHD (WARM CHARCOAL)	6G33611B69ACW FRONT SEATBELT ASSY PASSENGER RHD (WARM CHARCOAL) Warm Charcoal	-	1	Enquire
-	6G33611B69BCW	SEATBELT & RETRACTOR AST FRT PASSENGER RHD (FLINT)	6G33611B69BCW SEATBELT & RETRACTOR AST FRT PASSENGER RHD (FLINT) Flint	-	1	Enquire
-	6G33611B70ACW	FRONT SEATBELT ASSY DRIVER LHD (WARM CHARCOAL)	6G33611B70ACW FRONT SEATBELT ASSY DRIVER LHD (WARM CHARCOAL) Warm Charcoal	-	1	Enquire
-	6G33611B70BCW	Seatbelt Retractor assy, LHD, Driver's	6G33611B70BCW Seatbelt Retractor assy, LHD, Driver's Flint	-	1	Enquire
-	6G33611B68ABW	FRONT SEATBELT ASSY PASSENGER LHD (WARM CHARCOAL)	6G33611B68ABW FRONT SEATBELT ASSY PASSENGER LHD (WARM CHARCOAL) Warm Charcoal	-	1	Enquire
-	6G33611B68BBW	SEATBELT & RETRACTOR AST FRT PASSENGER LHD (FLINT)	6G33611B68BBW SEATBELT & RETRACTOR AST FRT PASSENGER LHD (FLINT) Flint	-	1	Enquire
-	6G3360259AB	REINF FRT ST BEL LH	6G3360259AB REINF FRT ST BEL LH	-	1	Enquire
-	6G33611B11CA	D LOOP LH	6G33611B11CA D LOOP LH	-	1	Enquire
1	6G33611B71ABW	SEAT BELT ASSY DRIVER RHD (WARM CHARCOAL)	6G33611B71ABW SEAT BELT ASSY DRIVER RHD (WARM CHARCOAL) Warm Charcoal	-	1	Enquire
2	6G3360258AB	REINF FRT ST BEL RH	6G3360258AB REINF FRT ST BEL RH	-	1	Enquire
3	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	16	Enquire
4	6G33611B10CA	D LOOP RH	6G33611B10CA D LOOP RH	-	1	Enquire
5	6G335784AA	Pin, Front Seatbelt Guide	6G335784AA Pin, Front Seatbelt Guide	-	2	Enquire
6	6G33610D36AA	Plate, Front Seatbelt Anchor Bracket	6G33610D36AA Plate, Front Seatbelt Anchor Bracket	-	4	Enquire
