Speaker Assembly - B&O of Aston Martin Aston Martin V12 Zagato

View All

Aston Martin V12 Zagato - Speaker Assembly - B&O

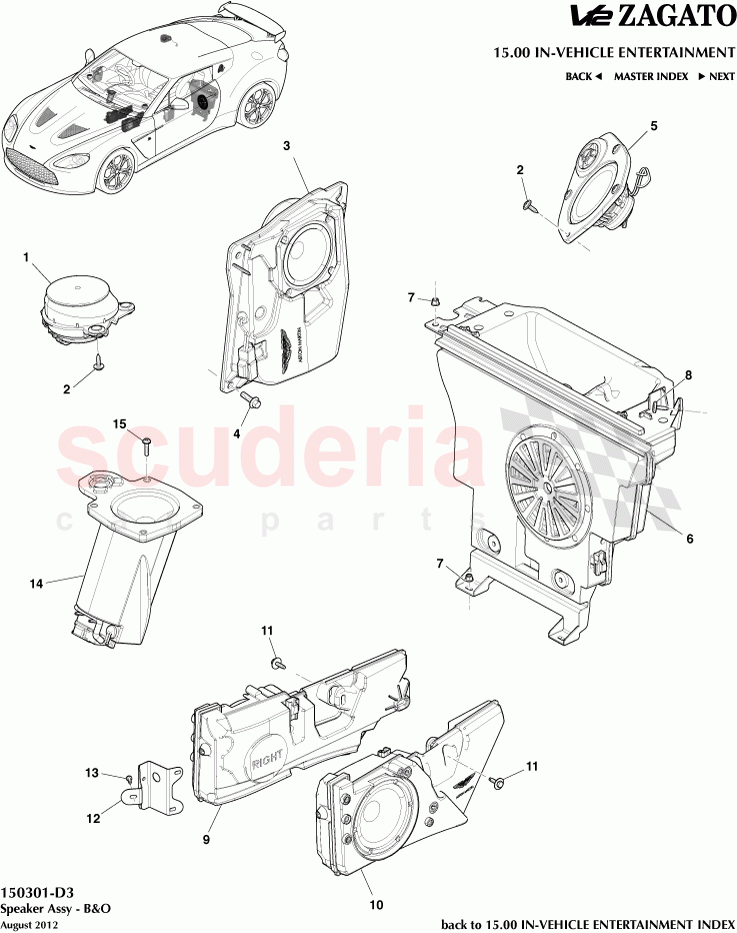

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9D3318D801AB	ACOUSTIC LENS TWEETER-BASALT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D336696XBA	Speaker Box, Front Door, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700607	Screw Hex Flange Head M6 x 16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G3318974AA	Speaker, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G3318C956AA	Sub Woofer & Enclosure	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D336696XAC	Speaker Box, Footwell, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D336696YAC	Speaker Box, Footwell, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D332B100AC	Bracket, Foot Well Speaker Box, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701554	Screw, M5 x 12, Pan Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D3370451AB	Speaker Box Assy, Centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703736	Screw Self Tapping, 4.2 x 19, Washer Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9D336696YBA	Speaker Box, Front Door, LH	9D336696YBA Speaker Box, Front Door, LH	-	1	Enquire
1	9D3318D801AB	ACOUSTIC LENS TWEETER-BASALT	9D3318D801AB ACOUSTIC LENS TWEETER-BASALT	-	2	Enquire
2	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) Pack of 10	-	14	Enquire
3	9D336696XBA	Speaker Box, Front Door, RH	9D336696XBA Speaker Box, Front Door, RH	-	1	Enquire
4	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm	-	8	Enquire
5	9G3318974AA	Speaker, Rear	9G3318974AA Speaker, Rear	-	2	Enquire
6	9G3318C956AA	Sub Woofer & Enclosure	9G3318C956AA Sub Woofer & Enclosure	-	1	Enquire
7	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	-	3	Enquire
8	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	1	Enquire
9	9D336696XAC	Speaker Box, Footwell, RH	9D336696XAC Speaker Box, Footwell, RH	-	1	Enquire
10	9D336696YAC	Speaker Box, Footwell, LH	9D336696YAC Speaker Box, Footwell, LH	-	1	Enquire
11	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) Pack of 10	-	2	Enquire
12	9D332B100AC	Bracket, Foot Well Speaker Box, RH	9D332B100AC Bracket, Foot Well Speaker Box, RH	-	1	Enquire
13	701554	Screw, M5 x 12, Pan Hd	701554 Screw, M5 x 12, Pan Hd	-	3	Enquire
14	9D3370451AB	Speaker Box Assy, Centre	9D3370451AB Speaker Box Assy, Centre	-	1	Enquire
15	703736	Screw Self Tapping, 4.2 x 19, Washer Head	703736 Screw Self Tapping, 4.2 x 19, Washer Head	-	4	Enquire
