Windscreen/ Headlamp Washer Reservoir Assembly of Aston Martin Aston Martin V12 Zagato

View All

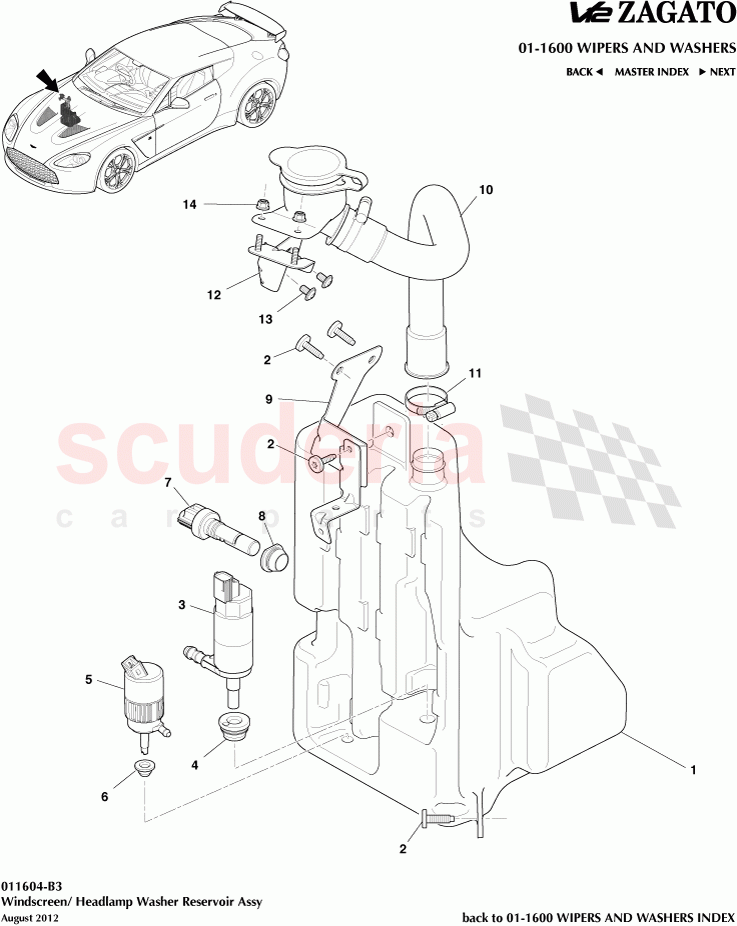

Aston Martin V12 Zagato - Windscreen/ Headlamp Washer Reservoir Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G3317B613APIA001	WASH RESERVOIR ONLY	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110305	Pump Headlight Wash	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1X4313K188AA	Grommet, Sealing Headlamp Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433711549	WINDSCREEN WASHER MOTOR/PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1X4317673AA	Grommet, Sealing Windscreen Wash Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

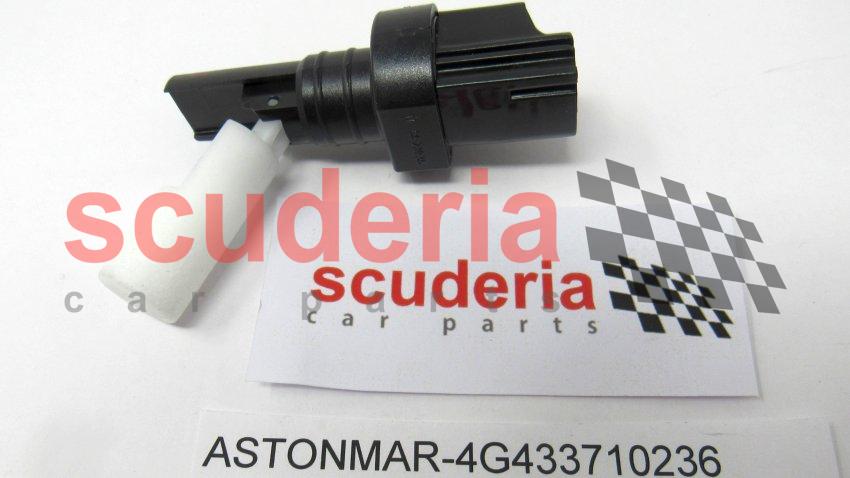

	4G433710236	Water Low Level Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433710237	Seal, Low Level Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317614AB	Bracket Assembly, Windshield Washer Reservoir Mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3313K175BA	Filler Neck Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701562	Clamp, Worm Drive 30-45mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317C625AC	Bracket, Filler Neck	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703266	Screw M6 x 10 Pan Head Torx	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707147	NUT-M5 HEX FLG GRD 8	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G43M8B17BA	Fluid, Windshield Washer, 1.0 Litre	4G43M8B17BA Fluid, Windshield Washer, 1.0 Litre	-	A/R	Enquire
1	6G3317B613APIA001	WASH RESERVOIR ONLY ARRIVING SOON	6G3317B613APIA001 WASH RESERVOIR ONLY ARRIVING SOON	-	1	Enquire
2	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	5	Enquire
3	4G430110305	Pump Headlight Wash	4G430110305 Pump Headlight Wash	-	1	Enquire
4	1X4313K188AA	Grommet, Sealing Headlamp Pump	1X4313K188AA Grommet, Sealing Headlamp Pump	-	1	Enquire
5	4G433711549	WINDSCREEN WASHER MOTOR/PUMP	4G433711549 WINDSCREEN WASHER MOTOR/PUMP	-	1	Enquire
6	1X4317673AA	Grommet, Sealing Windscreen Wash Pump	1X4317673AA Grommet, Sealing Windscreen Wash Pump	-	1	Enquire
7	4G433710236	Water Low Level Sensor	4G433710236 Water Low Level Sensor	-	1	Enquire
8	4G433710237	Seal, Low Level Sensor	4G433710237 Seal, Low Level Sensor	-	1	Enquire
9	4G4317614AB	Bracket Assembly, Windshield Washer Reservoir Mounting	4G4317614AB Bracket Assembly, Windshield Washer Reservoir Mounting	-	1	Enquire
10	6G3313K175BA	Filler Neck Assembly	6G3313K175BA Filler Neck Assembly	-	1	Enquire
11	701562	Clamp, Worm Drive 30-45mm	701562 Clamp, Worm Drive 30-45mm	-	2	Enquire
12	4G4317C625AC	Bracket, Filler Neck	4G4317C625AC Bracket, Filler Neck	-	1	Enquire
13	703266	Screw M6 x 10 Pan Head Torx	703266 Screw M6 x 10 Pan Head Torx	-	2	Enquire
14	707147	NUT-M5 HEX FLG GRD 8	707147 NUT-M5 HEX FLG GRD 8	-	2	Enquire
