Premium Speaker Assembly

Aston Martin Rapide

Find Your Part

Aston Martin Rapide - Premium Speaker Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD4318C956AA VH400 SUB ENCLOSURE $2,773.53 To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) $21.68 IN STOCK
Photo Part No Description Price (each) Stock
6G336C778AA ISOLATOR - OIL COOLER MOUTING $0.86 To Order
Photo Part No Description Price (each) Stock
AD436696XBA FRONT DOOR SPEAKER RH $443.07 To Order
AD436696YBA FRONT DOOR SPEAKER LH $443.07 To Order
Photo Part No Description Price (each) Stock
704701 Screw, M6 x 20, Socket Head Button $3.90 To Order
Photo Part No Description Price (each) Stock
AD4346684AA REAR DOOR WOOFER RH $565.35 To Order
AD4346685AA REAR DOOR WOOFER LH $565.35 To Order
Photo Part No Description Price (each) Stock
AD4346684BA REAR DOOR SPEAKER MID RH $574.41 To Order
AD4346685BA REAR DOOR SPEAKER MID LH $565.35 To Order
Photo Part No Description Price (each) Stock
9D3318D801AB ACOUSTIC LENS TWEETER-BASALT $2,353.16 To Order
Photo Part No Description Price (each) Stock
9D3346662AA Washer, 14mm, 43 ID 14 OD 0.8 Thk $0.11 To Order
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) $2.80 IN STOCK
Photo Part No Description Price (each) Stock
9D3370451AB Speaker Box Assy, Centre $492.38 To Order
Photo Part No Description Price (each) Stock
703736 Screw Self Tapping, 4.2 x 19, Washer Head $0.12 To Order
Photo Part No Description Price (each) Stock
9D336696XAC Speaker Box, Footwell, RH $539.07 To Order
Photo Part No Description Price (each) Stock
9D336696YAC Speaker Box, Footwell, LH $539.07 To Order
Photo Part No Description Price (each) Stock
703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) $5.40 IN STOCK
Photo Part No Description Price (each) Stock
9D3319080AA Mounting Bracket, Loudspeaker $18.68 To Order
Photo Part No Description Price (each) Stock
9D332B100AC Bracket, Foot Well Speaker Box, RH $28.10 To Order
Photo Part No Description Price (each) Stock
4G432B099AD Mounting Bracket, Accelerator Scuff Plate, LH $46.48 To Order
View All

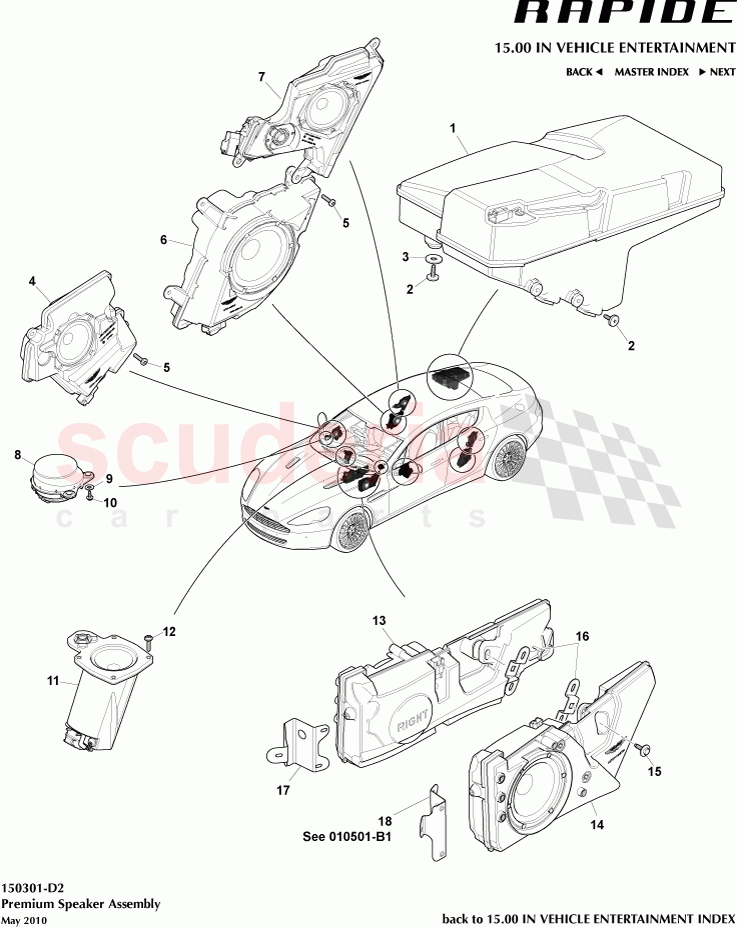

Premium Speaker Assembly of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD4318C956AA
VH400 SUB ENCLOSURE 		$2,773.53 1
2 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
IN STOCK 		$21.68 2
3 6G336C778AA
ISOLATOR - OIL COOLER MOUTING 		$0.86 2
4 AD436696XBA
FRONT DOOR SPEAKER RH
Secured by item 5 (3 per assy) 		$443.07 1
4 AD436696YBA
FRONT DOOR SPEAKER LH
Secured by item 5 (3 per assy) 		$443.07 1
5 704701
Screw, M6 x 20, Socket Head Button 		$3.90 18
6 AD4346684AA
REAR DOOR WOOFER RH
Secured by item 5 (3 per assy) 		$565.35 1
6 AD4346685AA
REAR DOOR WOOFER LH
Secured by item 5 (3 per assy) 		$565.35 1
7 AD4346684BA
REAR DOOR SPEAKER MID RH
Secured by item 5 (3 per assy) 		$574.41 1
7 AD4346685BA
REAR DOOR SPEAKER MID LH
Secured by item 5 (3 per assy) 		$565.35 1
8 9D3318D801AB
ACOUSTIC LENS TWEETER-BASALT 		$2,353.16 2
9 9D3346662AA
Washer, 14mm, 43 ID 14 OD 0.8 Thk 		$0.11 3
10 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
IN STOCK 		$2.80 3
11 9D3370451AB
Speaker Box Assy, Centre 		$492.38 1
12 703736
Screw Self Tapping, 4.2 x 19, Washer Head 		$0.12 1
13 9D336696XAC
Speaker Box, Footwell, RH 		$539.07 1
14 9D336696YAC
Speaker Box, Footwell, LH 		$539.07 1
15 703152PK
Screw & Washer M6 x 20 Hex Head (Pack of 10)
IN STOCK 		$5.40 2
16 9D3319080AA
Mounting Bracket, Loudspeaker 		$18.68 2
17 9D332B100AC
Bracket, Foot Well Speaker Box, RH 		$28.10 1
18 4G432B099AD
Mounting Bracket, Accelerator Scuff Plate, LH 		$46.48 1
