Air Con Lines Fittings (LHD) of Aston Martin Aston Martin Rapide

View All

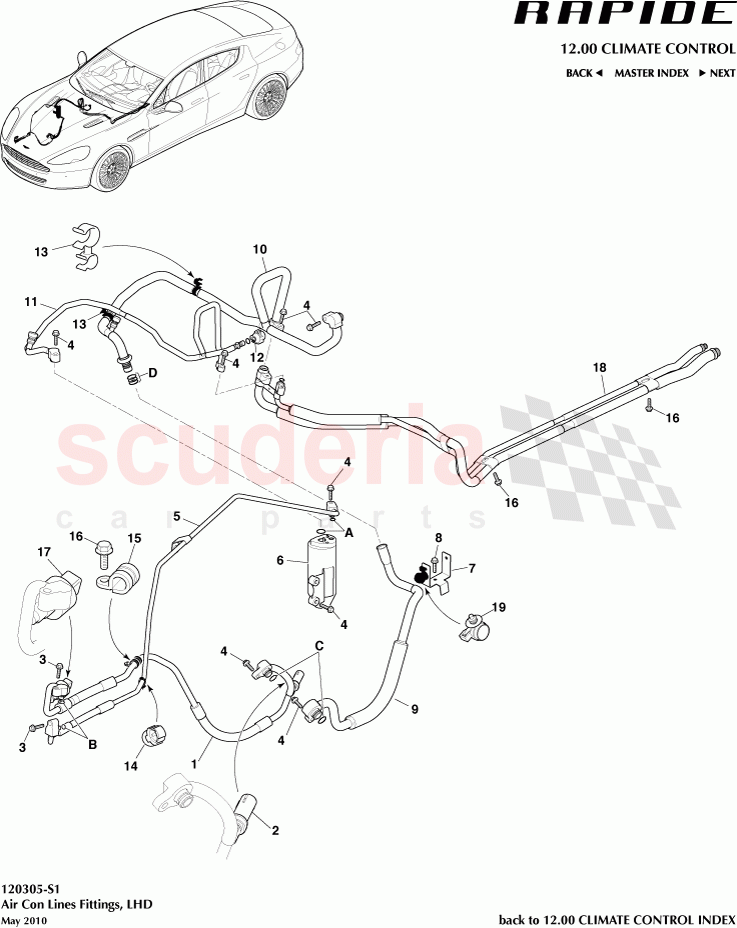

Aston Martin Rapide - Air Con Lines Fittings (LHD)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD4319972AA	COMPRESSOR TO CONDENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG438911295	SW ASY-A/C PRES CTOF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703199	Bolt M6x30 HEX FLG Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4319D719AA	TUBE ASSY - COND TO R/DRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319E891AD	Air Conditioning Drier	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436147XAD	BRACKET - AIRCON / ELECTRICAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4319A705AA	SUCTION LINE-ENGINE BAY TO COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4319A705BA	SUCTION LINE -TUNNEL TO ENGINE BAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4319835AA	REC - DRIER TO FRT/ REAR HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434073AAA	CLAMP - LIQ	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701182	Clip, Pipe Swivel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701180	Clip, 14 x 4, Push In	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699634	P-Clip,13 x 15 x M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R128910192	Switch, A/C High Pressure	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4319A705CC	Tube assy, A/C evaporator outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G438910908PK	O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)	4G438910908PK O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)	-	1	Enquire
-	4G438910910PK	O Rings-DB9 & V8 Condenser (Pack of 2)	4G438910910PK O Rings-DB9 & V8 Condenser (Pack of 2)	-	1	Enquire
-	4G438910909PK	O-Ring Compressor (Pack of 2)	4G438910909PK O-Ring Compressor (Pack of 2)	-	1	Enquire
-	4G438910911PK	O RINGS-DB9 EVAPORATOR-PACK OF 3	4G438910911PK O RINGS-DB9 EVAPORATOR-PACK OF 3	-	1	Enquire
1	AD4319972AA	COMPRESSOR TO CONDENSOR	AD4319972AA COMPRESSOR TO CONDENSOR	-	1	Enquire
2	AG438911295	SW ASY-A/C PRES CTOF	AG438911295 SW ASY-A/C PRES CTOF	-	1	Enquire
3	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	2	Enquire
4	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free	-	7	Enquire
5	AD4319D719AA	TUBE ASSY - COND TO R/DRIER	AD4319D719AA TUBE ASSY - COND TO R/DRIER	-	1	Enquire
6	4G4319E891AD	Air Conditioning Drier	4G4319E891AD Air Conditioning Drier	-	1	Enquire
7	4G436147XAD	BRACKET - AIRCON / ELECTRICAL	4G436147XAD BRACKET - AIRCON / ELECTRICAL	-	1	Enquire
8	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	1	Enquire
9	AD4319A705AA	SUCTION LINE-ENGINE BAY TO COMPRESSOR	AD4319A705AA SUCTION LINE-ENGINE BAY TO COMPRESSOR	-	1	Enquire
10	AD4319A705BA	SUCTION LINE -TUNNEL TO ENGINE BAY	AD4319A705BA SUCTION LINE -TUNNEL TO ENGINE BAY	-	1	Enquire
11	AD4319835AA	REC - DRIER TO FRT/ REAR HVAC	AD4319835AA REC - DRIER TO FRT/ REAR HVAC	-	1	Enquire
12	4G434073AAA	CLAMP - LIQ	4G434073AAA CLAMP - LIQ	-	1	Enquire
13	701182	Clip, Pipe Swivel	701182 Clip, Pipe Swivel	-	4	Enquire
14	701180	Clip, 14 x 4, Push In	701180 Clip, 14 x 4, Push In	-	1	Enquire
15	699634	P-Clip,13 x 15 x M6	699634 P-Clip,13 x 15 x M6	-	1	Enquire
16	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	3	Enquire
17	1R128910192	Switch, A/C High Pressure	1R128910192 Switch, A/C High Pressure	-	1	Enquire
18	AD4319A705CC	Tube assy, A/C evaporator outlet	AD4319A705CC Tube assy, A/C evaporator outlet	-	1	Enquire
19	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	4G436510059PK Firtree Clip, for pad wear lead (Pack of 100)	-	2	Enquire
