Name: Navigation and Audio Input Module (2012)
Rating: 5.0 (1 reviews)

Navigation and Audio Input Module (2012) of Aston Martin Aston Martin Rapide

View All

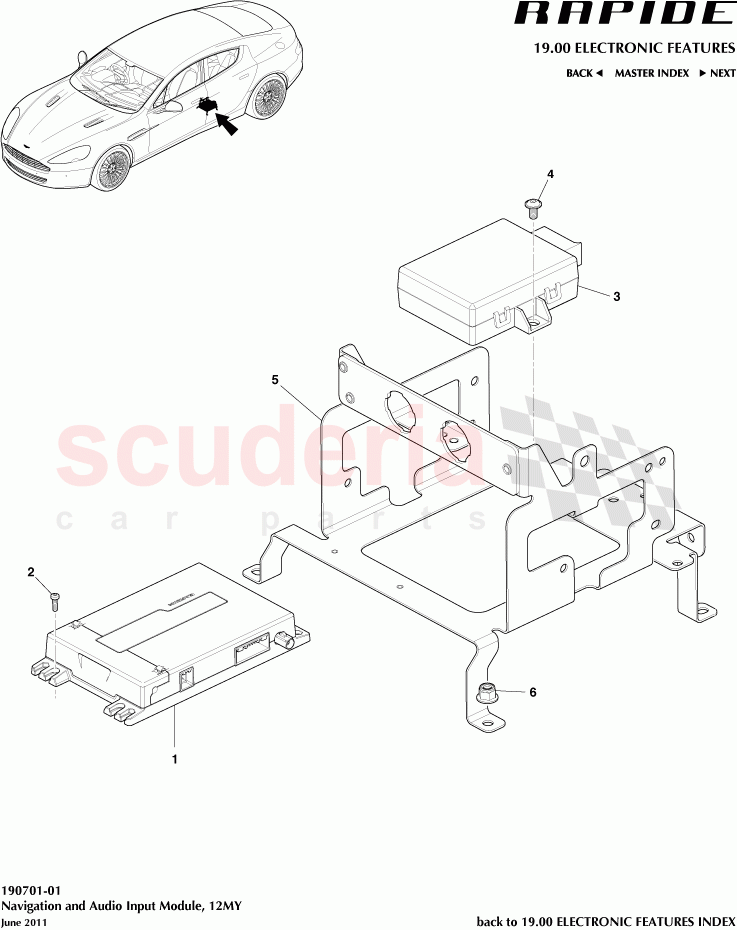

Aston Martin Rapide - Navigation and Audio Input Module (2012)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CG4310E887CA	Module, Garmin Nav Unit, ROW, No SD Card - without software	Enquire	To Order
	CG4310E887HH	GVN54 UNIT M/E	$3,619.60	To Order
	CG4310E887BH	GVN54 UNIT NA	$3,613.43	To Order

...and 10 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CG43505504S437	Screw, M3 x 10, Torx Pan Head	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4319A164AB	Module, Audio Input	$540.96	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3346058AA	Screw, M5 x 10 Pan Head Flange Torx	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4310E887AF	Bracket, Garmin Nav Module	$276.63	To Order

Photo	Part No	Description	Price (each)	Stock
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	$0.50	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG4310E898CH	GV54 MAP	CG4310E898CH GV54 MAP	$340.41	1
-	CG4310E898FJ	GVN54 MAP	CG4310E898FJ GVN54 MAP	$340.41	1
-	CG4310E898BJ	GVN54 MAP N AMERICA	CG4310E898BJ GVN54 MAP N AMERICA	$340.44	1
-	CG4310E898DJ	GVN54 MAP	CG4310E898DJ GVN54 MAP	$343.06	1
-	CG4310E898JJ	GVN54 MAP STH AFRICA	CG4310E898JJ GVN54 MAP STH AFRICA	$343.06	1
-	CG4310E898GJ	GVN 54 MAP	CG4310E898GJ GVN 54 MAP	$340.41	1
-	CG4310E898AL	GVN54 MAP EUROPE	CG4310E898AL GVN54 MAP EUROPE	$973.08	1
-	CG4310E898HJ	GVN54 MAP	CG4310E898HJ GVN54 MAP	$340.41	1
-	CG4310E898LH	GVN 54 MAP	CG4310E898LH GVN 54 MAP	$220.61	1
-	CG4310E898MH	GVN54 MAP	CG4310E898MH GVN54 MAP	$220.61	1
-	CG4310E898EJ	GVN54 MAP	CG4310E898EJ GVN54 MAP	$343.06	1
-	CG4310E898KJ	GVN54 MAP	CG4310E898KJ GVN54 MAP	$343.06	1
1	CG4310E887CA	Module, Garmin Nav Unit, ROW, No SD Card - without software	CG4310E887CA Module, Garmin Nav Unit, ROW, No SD Card - without software No software, without SD-Card	-	1	Enquire
1	CG4310E887HH	GVN54 UNIT M/E	CG4310E887HH GVN54 UNIT M/E	$3,619.60	1
1	CG4310E887BH	GVN54 UNIT NA	CG4310E887BH GVN54 UNIT NA	$3,613.43	1
1	CG4310E887EB	Module, Garmin Nav Unit, S.AMERICA	CG4310E887EB Module, Garmin Nav Unit, S.AMERICA	-	1	Enquire
1	CG4310E887KB	GVN54 UNIT SOUTH AFRICA	CG4310E887KB GVN54 UNIT SOUTH AFRICA	-	1	Enquire
1	CG4310E887PH	GVN54 UNIT AU/NZ	CG4310E887PH GVN54 UNIT AU/NZ	$3,497.22	1
1	CG4310E887GB	Module, Garmin Nav Unit, SE ASIA	CG4310E887GB Module, Garmin Nav Unit, SE ASIA	-	1	Enquire
1	CG4310E887JB	Module, Garmin Nav Unit, RUSSIA	CG4310E887JB Module, Garmin Nav Unit, RUSSIA	-	1	Enquire
1	CG4310E887MH	GVN54 UNIT TAIWAN	CG4310E887MH GVN54 UNIT TAIWAN	$3,619.60	1
1	CG4310E887NB	Module, Garmin Nav Unit, TURKEY	CG4310E887NB Module, Garmin Nav Unit, TURKEY	-	1	Enquire
1	CG4310E887FB	Module, Garmin Nav Unit, CHINA	CG4310E887FB Module, Garmin Nav Unit, CHINA	-	1	Enquire
1	CG4310E887LB	Module, Garmin Nav Unit, JAPAN	CG4310E887LB Module, Garmin Nav Unit, JAPAN	-	1	Enquire
1	CG4310E887AH	GVN54 UNIT EU	CG4310E887AH GVN54 UNIT EU	$4,695.18	1
2	CG43505504S437	Screw, M3 x 10, Torx Pan Head	CG43505504S437 Screw, M3 x 10, Torx Pan Head	$0.29	4
3	CG4319A164AB	Module, Audio Input	CG4319A164AB Module, Audio Input	$540.96	1
4	6G3346058AA	Screw, M5 x 10 Pan Head Flange Torx	6G3346058AA Screw, M5 x 10 Pan Head Flange Torx	$1.91	2
5	AD4310E887AF	Bracket, Garmin Nav Module	AD4310E887AF Bracket, Garmin Nav Module	$276.63	1
6	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	$0.50	4
