Receiver and Audio Media System of Aston Martin Aston Martin Rapide

View All

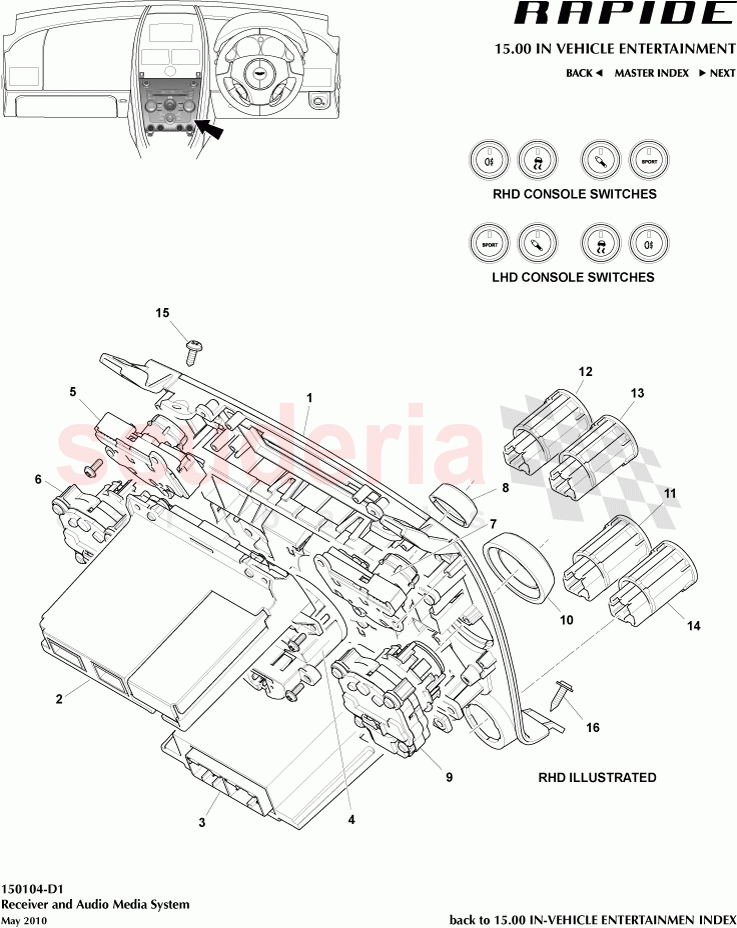

Aston Martin Rapide - Receiver and Audio Media System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G4313D734AC	SWITCH MAIN BODY SILVER	Enquire	To Order
	CG4313D734BA	SWITCH MAIN BODY	Enquire	To Order
	CD3313D734CA	SWITCH MAIN BODY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8D3318K810AA	INFOTAINMENT CONTROL MODULE HARDWARE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3318C612AB	CENTRE CONSOLE MODULE ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3315000BB	Analogue Clock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313D734CB	Switch body, Piano Black surround and Silver lens	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3318C612DA	Module, Temp HVAC Rotary Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313D734BB	Module, Volume / Auto Audio Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3318817AC	AUDIO CONROL KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3318C612EA	Module, Fan Speed HVAC Rotary Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD433710087	SWITCH KIT-GLASS RAPIDE (MADE TO ORDER)	Enquire	To Order
	8D3318783AC	HVAC CONTROL KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3315A860BB	SWITCH-PARKNG SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD3314B626CB	SPORTS MODE SWITCH	Enquire	To Order
	9D3314B626AA	SPORTS MODE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD332C418DA	Switch, DSC Control	Enquire	To Order
	6G332C418AA	DSC CONTROL SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD3315K237BB	FOGLAMP SWITCH	Enquire	To Order
	6G3315K237BB	FOGLAMP SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707263	SCREW 4.2x13 FLG T/F	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD4318C858BA	Centre stack assy	AD4318C858BA Centre stack assy RHD	-	1	Enquire
-	AD4318C858AA	Centre stack assy	AD4318C858AA Centre stack assy LHD	-	1	Enquire
1	9G4313D734AC	SWITCH MAIN BODY SILVER	9G4313D734AC SWITCH MAIN BODY SILVER 11MY	-	1	Enquire
1	CG4313D734BA	SWITCH MAIN BODY	CG4313D734BA SWITCH MAIN BODY 12MY	-	1	Enquire
1	CD3313D734CA	SWITCH MAIN BODY	CD3313D734CA SWITCH MAIN BODY 12MY	-	1	Enquire
1	9G3313D734AC	SWITCH MAIN BODY (GRAPHITE)	9G3313D734AC SWITCH MAIN BODY (GRAPHITE)	-	1	Enquire
2	8D3318K810AA	INFOTAINMENT CONTROL MODULE HARDWARE	8D3318K810AA INFOTAINMENT CONTROL MODULE HARDWARE	-	1	Enquire
3	8D3318C612AB	CENTRE CONSOLE MODULE ECU	8D3318C612AB CENTRE CONSOLE MODULE ECU	-	1	Enquire
4	8D3315000BB	Analogue Clock	8D3315000BB Analogue Clock	-	1	Enquire
5	8D3313D734CB	Switch body, Piano Black surround and Silver lens	8D3313D734CB Switch body, Piano Black surround and Silver lens	-	1	Enquire
6	8D3318C612DA	Module, Temp HVAC Rotary Control	8D3318C612DA Module, Temp HVAC Rotary Control	-	1	Enquire
7	8D3313D734BB	Module, Volume / Auto Audio Control	8D3313D734BB Module, Volume / Auto Audio Control	-	1	Enquire
8	8D3318817AC	AUDIO CONROL KNOB	8D3318817AC AUDIO CONROL KNOB	-	2	Enquire
9	8D3318C612EA	Module, Fan Speed HVAC Rotary Control	8D3318C612EA Module, Fan Speed HVAC Rotary Control	-	1	Enquire
10	AD433710087	SWITCH KIT-GLASS RAPIDE (MADE TO ORDER)	AD433710087 SWITCH KIT-GLASS RAPIDE (MADE TO ORDER) Special order	-	-	Enquire
10	8D3318783AC	HVAC CONTROL KNOB	8D3318783AC HVAC CONTROL KNOB	-	2	Enquire
11	8D3315A860BB	SWITCH-PARKNG SENSOR	8D3315A860BB SWITCH-PARKNG SENSOR	-	1	Enquire
12	AD3314B626CB	SPORTS MODE SWITCH	AD3314B626CB SPORTS MODE SWITCH 11MY, Glass	-	1	Enquire
12	9D3314B626AA	SPORTS MODE SWITCH	9D3314B626AA SPORTS MODE SWITCH	-	1	Enquire
13	AD332C418DA	Switch, DSC Control	AD332C418DA Switch, DSC Control 11MY, Glass	-	1	Enquire
13	6G332C418AA	DSC CONTROL SWITCH	6G332C418AA DSC CONTROL SWITCH	-	1	Enquire
14	AD3315K237BB	FOGLAMP SWITCH	AD3315K237BB FOGLAMP SWITCH 11MY, Glass	-	1	Enquire
14	6G3315K237BB	FOGLAMP SWITCH	6G3315K237BB FOGLAMP SWITCH	-	1	Enquire
15	707263	SCREW 4.2x13 FLG T/F	707263 SCREW 4.2x13 FLG T/F	-	2	Enquire
16	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	2	Enquire
