Fuse Panel, Fuses, Circuit Breakers of Aston Martin Aston Martin Rapide

View All

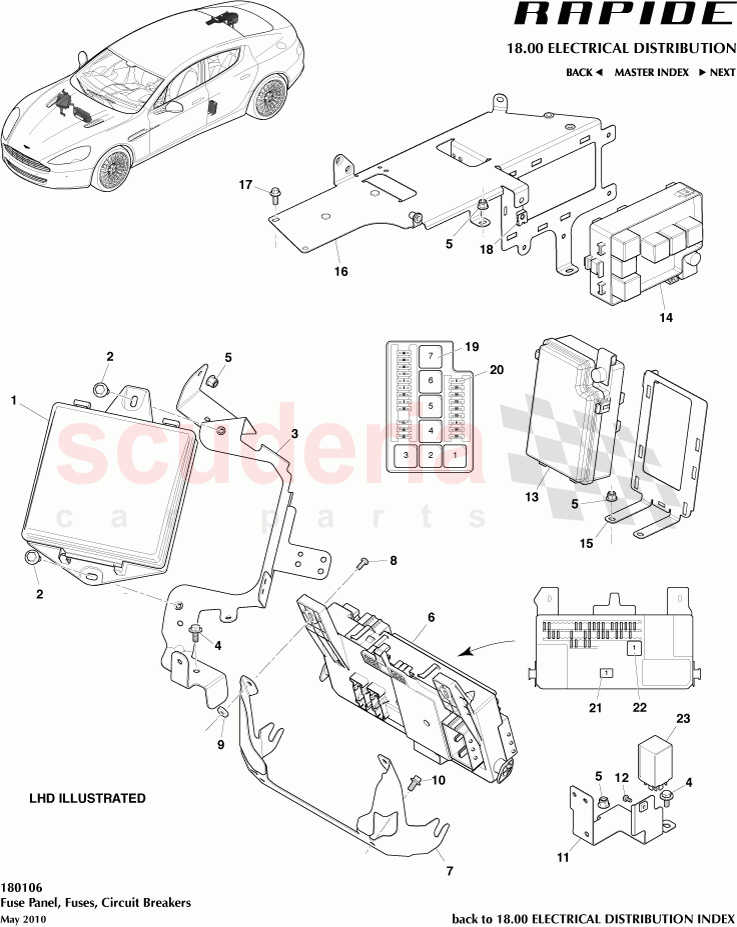

Aston Martin Rapide - Fuse Panel, Fuses, Circuit Breakers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BG3314A173AB	Fuse Box Assembly, Engine Bay	Enquire	To Order
	AD4314A173AB	ENGINE BAY FUSEBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314A173BK	ENGINE BAY FUSEBOX BRACKET RHD	Enquire	To Order
	4G4314A173CH	ENG BAY F/BOX BRKT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4314C245AA	Central Electronic Module - CEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313B525BG	Bracket, Cabin Fuse Box CEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702082	Bolt, Self Locking, M5 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L41041AA	Edge Strip, Black 2 x 40	Enquire	To Order
	8D3314N072AE	Bracket, Fuse Box, LHD	Enquire	To Order
	8D3314N072BD	Bracket, Fuse Box, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4314A073AC	REAR FUSEBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4314A074AA	UNDERSEAT FUSEBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4314A301BB	UNDERSEAT FUSEBOX BRACKET MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4314A301AC	BRACKET REAR FUSEBOX MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200020135PK	Screw, M6 x 16, Flange Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710526	RELAY-CHANGE OVER 40A MAXI	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3723423	Fuse Midi 7.5A	Enquire	To Order
	3723424	Fuse, Midi 10A	Enquire	To Order
	3723425	Fuse, Midi 15A	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G433710526	Relay, micro	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433710526	Relay, micro	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD433F826AA	MODULE - PWR STRG	Enquire	To Order
	3785236	Protector, Power Stud	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	BG3314A173AB	Fuse Box Assembly, Engine Bay	BG3314A173AB Fuse Box Assembly, Engine Bay -12MY	-	1	Enquire
1	AD4314A173AB	ENGINE BAY FUSEBOX	AD4314A173AB ENGINE BAY FUSEBOX	-	1	Enquire
2	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20)	-	2	Enquire
3	4G4314A173BK	ENGINE BAY FUSEBOX BRACKET RHD	4G4314A173BK ENGINE BAY FUSEBOX BRACKET RHD	-	1	Enquire
3	4G4314A173CH	ENG BAY F/BOX BRKT	4G4314A173CH ENG BAY F/BOX BRKT	-	1	Enquire
4	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	3	Enquire
5	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	-	5	Enquire
6	8G4314C245AA	Central Electronic Module - CEM	8G4314C245AA Central Electronic Module - CEM	-	1	Enquire
7	4G4313B525BG	Bracket, Cabin Fuse Box CEM	4G4313B525BG Bracket, Cabin Fuse Box CEM	-	1	Enquire
8	702082	Bolt, Self Locking, M5 x 16	702082 Bolt, Self Locking, M5 x 16	-	2	Enquire
9	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	-	2	Enquire
10	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	2	Enquire
11	4G43L41041AA	Edge Strip, Black 2 x 40	4G43L41041AA Edge Strip, Black 2 x 40 Bracket, Fusebox mounting	-	1	Enquire
11	8D3314N072AE	Bracket, Fuse Box, LHD	8D3314N072AE Bracket, Fuse Box, LHD	-	1	Enquire
11	8D3314N072BD	Bracket, Fuse Box, RHD	8D3314N072BD Bracket, Fuse Box, RHD	-	1	Enquire
12	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	700963 SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	-	1	Enquire
13	AD4314A073AC	REAR FUSEBOX	AD4314A073AC REAR FUSEBOX	-	1	Enquire
14	AD4314A074AA	UNDERSEAT FUSEBOX	AD4314A074AA UNDERSEAT FUSEBOX	-	1	Enquire
15	AD4314A301BB	UNDERSEAT FUSEBOX BRACKET MOUNTING	AD4314A301BB UNDERSEAT FUSEBOX BRACKET MOUNTING	-	1	Enquire
16	AD4314A301AC	BRACKET REAR FUSEBOX MOUNTING	AD4314A301AC BRACKET REAR FUSEBOX MOUNTING	-	1	Enquire
17	200020135PK	Screw, M6 x 16, Flange Hex Head	200020135PK Screw, M6 x 16, Flange Hex Head Rear fusebox bracket	-	4	Enquire
18	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	1	Enquire
19	1R123710526	RELAY-CHANGE OVER 40A MAXI	1R123710526 RELAY-CHANGE OVER 40A MAXI	-	7	Enquire
20	3723423	Fuse Midi 7.5A	3723423 Fuse Midi 7.5A 257 07.5	-	-	Enquire
20	3723424	Fuse, Midi 10A	3723424 Fuse, Midi 10A 257 010	-	-	Enquire
20	3723425	Fuse, Midi 15A	3723425 Fuse, Midi 15A 257 015	-	-	Enquire
20	3723426	Fuse, Midi 20A	3723426 Fuse, Midi 20A 257 020	-	-	Enquire
20	3723427	Fuse, Midi 25A	3723427 Fuse, Midi 25A 257 025	-	-	Enquire
20	3723428	Fuse, Midi 30A	3723428 Fuse, Midi 30A 257 030	-	-	Enquire
20	3723422	Fuse, Midi 5A	3723422 Fuse, Midi 5A 257 005	-	-	Enquire
20	4G433710962	FUSE 80 AMP- COOLING FAN MOTOR	4G433710962 FUSE 80 AMP- COOLING FAN MOTOR	-	-	Enquire
20	4G433710579PK	MINI FUSE-7.5A PK 10	4G433710579PK MINI FUSE-7.5A PK 10	-	-	Enquire
20	4G433710580PK	MINI FUSE-10A PK 10	4G433710580PK MINI FUSE-10A PK 10	-	-	Enquire
20	4G433710581PK	MINI FUSE-15A PK 10	4G433710581PK MINI FUSE-15A PK 10	-	-	Enquire
20	4G433710582PK	MINI FUSE-20A PK 10	4G433710582PK MINI FUSE-20A PK 10	-	-	Enquire
20	4G433710583PK	MINI FUSE-25A PK 10	4G433710583PK MINI FUSE-25A PK 10	-	-	Enquire
20	4G433710578PK	MINI FUSE-5A PK 10	4G433710578PK MINI FUSE-5A PK 10	-	-	Enquire
21	4G433710526	Relay, micro	4G433710526 Relay, micro	-	1	Enquire
22	4G433710526	Relay, micro	4G433710526 Relay, micro	-	1	Enquire
23	DD433F826AA	MODULE - PWR STRG	DD433F826AA MODULE - PWR STRG	-	1	Enquire
23	3785236	Protector, Power Stud	3785236 Protector, Power Stud	-	1	Enquire
