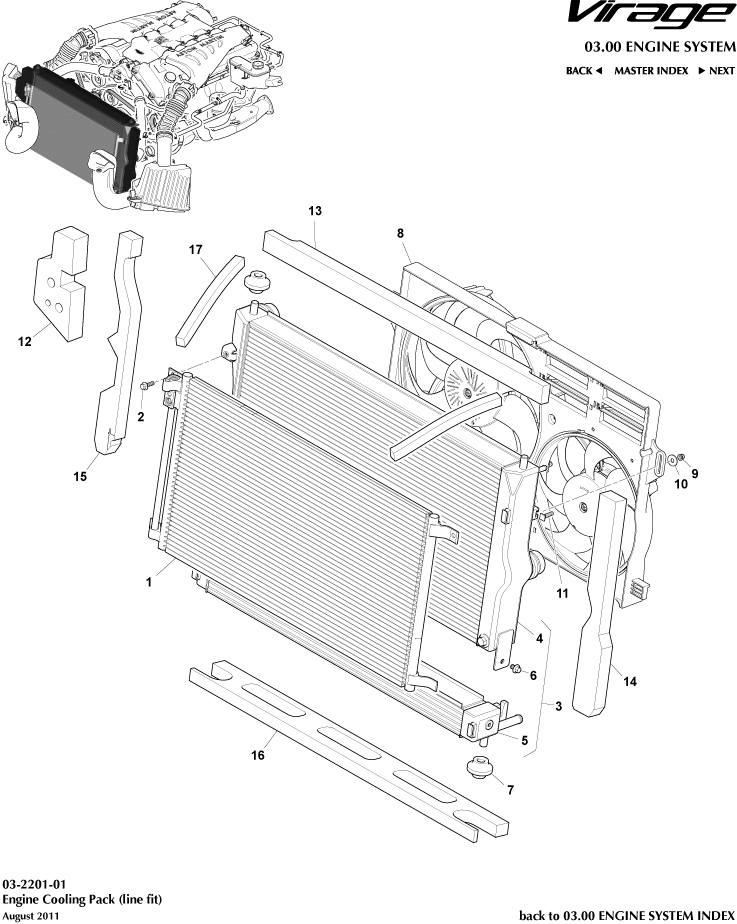

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	1R12322666AA/SPK	COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12	1R12322666AA/SPK COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12 12 Litres Per Pack	-	1	Enquire
1	9G4319710AA	Condenser	9G4319710AA Condenser -	-	1	Enquire
2	703750	Bolt, M6 x 20, Hex Flg Hd	703750 Bolt, M6 x 20, Hex Flg Hd -	-	1	Enquire
4	9D338005AA	RADIATOR ASSY	9D338005AA RADIATOR ASSY -	-	1	Enquire
5	SY9Y10041AA	RR WNG PYLN LH OUTHR	SY9Y10041AA RR WNG PYLN LH OUTHR -	-	1	Enquire
6	703202	Screw, M8 x 12, Flange Hd	703202 Screw, M8 x 12, Flange Hd -	-	2	Enquire
7	3285101PK	Bush Mounting Upper (Pack of 2)	3285101PK Bush Mounting Upper (Pack of 2) 2 Per Pack	-	4	Enquire
8	8D338C607AD	Fan Module	8D338C607AD Fan Module -	-	1	Enquire
9	703168	NUT M6 HF PTM 8	703168 NUT M6 HF PTM 8 -	-	2	Enquire
10	699614	WASHER 22 X 6.8 X 2 STAINLESS	699614 WASHER 22 X 6.8 X 2 STAINLESS -	-	2	Enquire
11	703728	Screw, M6 x 19, Square Head	703728 Screw, M6 x 19, Square Head -	-	2	Enquire
12	4G43C8585BA	Foam Pad	4G43C8585BA Foam Pad -	-	1	Enquire
13	CG438N301AA	Foam Seal - Upper Fan Module	CG438N301AA Foam Seal - Upper Fan Module -	-	1	Enquire
14	CG43F8B171AA	FOAM SEAL-LEFT HAND	CG43F8B171AA FOAM SEAL-LEFT HAND -	-	1	Enquire
15	CG43F8B170AA	FOAM SEAL-R/HAND	CG43F8B170AA FOAM SEAL-R/HAND -	-	1	Enquire
16	CG438C477AD	Foam Seal, Lower	CG438C477AD Foam Seal, Lower -	-	1	Enquire
17	CG43403D62AA	Seal, Upper Panel, Air Vent	CG43403D62AA Seal, Upper Panel, Air Vent -	-	2	Enquire
