Evaporative Emissions of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

Aston Martin GT VIRAGE (2012-2013) - Evaporative Emissions

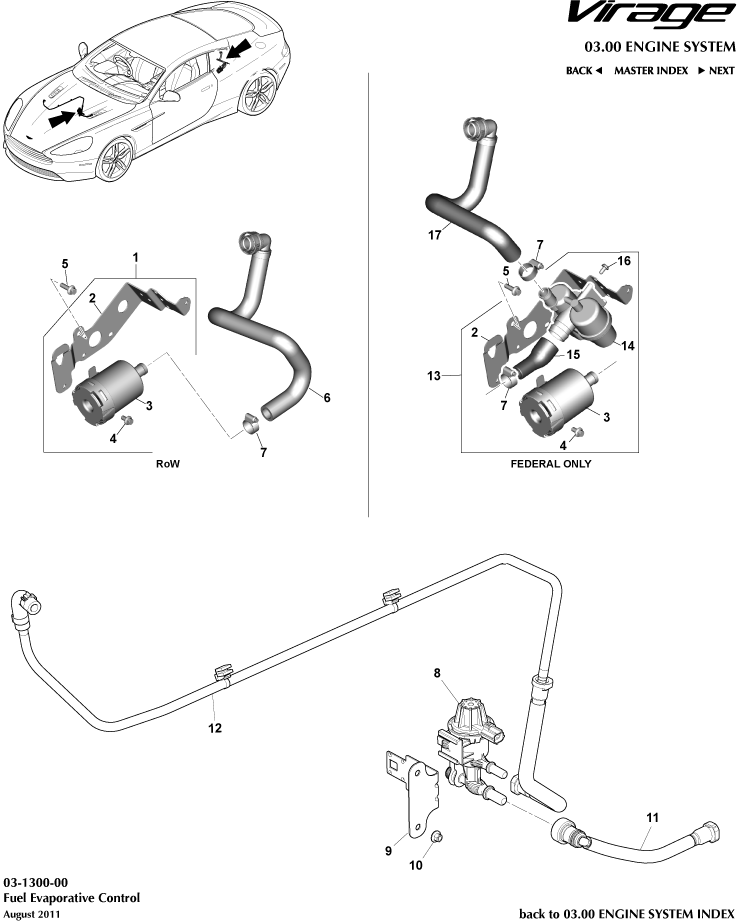

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	BG439F984BB	Hose, Fuel/Vapour Canister Vent Inlet	BG439F984BB Hose, Fuel/Vapour Canister Vent Inlet From VIN G14291, RoW	-	1	Enquire
-	BG439F984AB	Hose, Fuel/Vapour Canister Vent Inlet	BG439F984AB Hose, Fuel/Vapour Canister Vent Inlet From VIN G14291, Federal	-	1	Enquire
2	8D339C177AB	Bracket, Fuel Tank Vent Valve	8D339C177AB Bracket, Fuel Tank Vent Valve -	-	1	Enquire
3	4G439B995AA	Filter, Fuel/Vapour Storage Canister	4G439B995AA Filter, Fuel/Vapour Storage Canister -	-	1	Enquire
4	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	1	Enquire
5	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	3	Enquire
6	8G439F984BA	HOSE FUEL/VAPOUR CANISTER VENT INLET	8G439F984BA HOSE FUEL/VAPOUR CANISTER VENT INLET Up To VIN G14290, RoW	-	1	Enquire
7	699094	Clip, Hose, Spring Loaded, 16-25	699094 Clip, Hose, Spring Loaded, 16-25 2 off, Federal, 1 off, RoW	-	2	Enquire
8	4G433410937	Valve Fuel/ Vapour Purge Electronic	4G433410937 Valve Fuel/ Vapour Purge Electronic -	-	1	Enquire
9	4G439G743AA	Bracket, Electronic Fuel Vapour Management	4G439G743AA Bracket, Electronic Fuel Vapour Management -	-	1	Enquire
10	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head -	-	2	Enquire
11	AD239B051AA	TUBE - PURGE VALVE INLET	AD239B051AA TUBE - PURGE VALVE INLET -	-	1	Enquire
12	CD339D289AC	TUB ASY-FU/VPR TO EN	CD339D289AC TUB ASY-FU/VPR TO EN -	-	1	Enquire
15	7G439G271AA	Hose, DMTL to Filter	7G439G271AA Hose, DMTL to Filter Federal	-	1	Enquire
16	W506961S437	Screw, M5 x 10, Pan Head	W506961S437 Screw, M5 x 10, Pan Head Federal	-	3	Enquire
17	8D339F984AA	HOSE FUEL VAPOUR CANNISTER VENT INLET	8D339F984AA HOSE FUEL VAPOUR CANNISTER VENT INLET Up To VIN G14290, Federal	-	1	Enquire
