Aston Martin GT VIRAGE (2012-2013) - Engine Structure

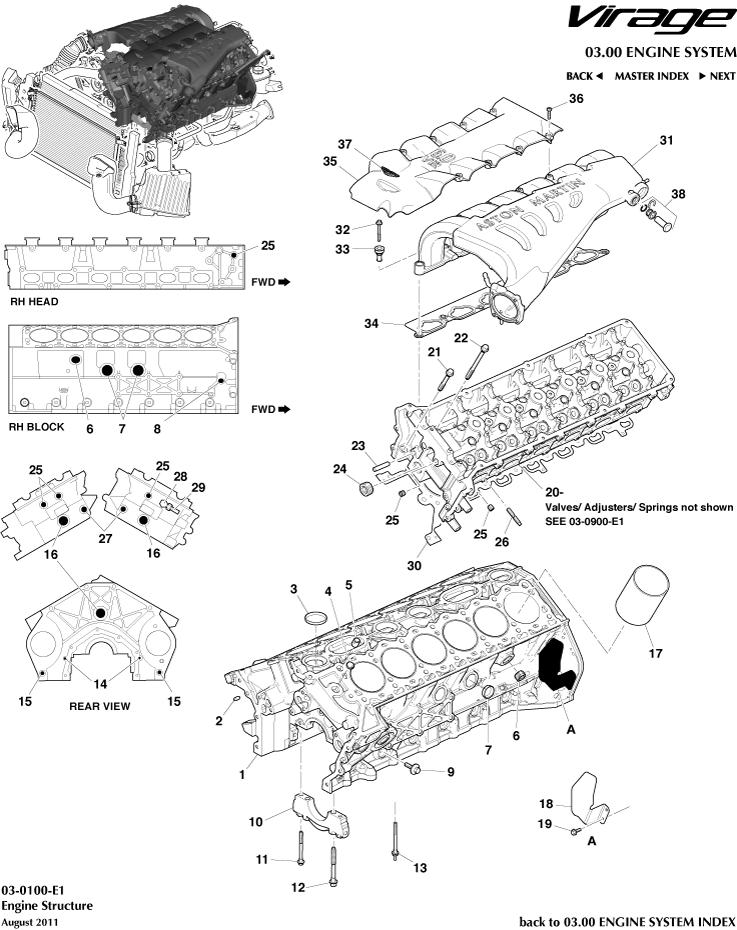

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG436007AA	BASE ENG ASSY	CG436007AA BASE ENG ASSY Not supplied with Pilot Bearing. Order separately	-	1	Enquire
-	8D336049AA	HEAD ASSEMBLY CYLINDER RH	8D336049AA HEAD ASSEMBLY CYLINDER RH Excludes Valves, Adjusters, Springs and Camshafts	-	1	Enquire
-	00RA310	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	00RA310 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS -	-	1	Enquire
2	184995	Dowel, 8 x 18	184995 Dowel, 8 x 18 -	-	2	Enquire
3	185000	Plug, 52.6 dia cup	185000 Plug, 52.6 dia cup -	-	4	Enquire
4	704775	Plug, 19.35, Exp Cup	704775 Plug, 19.35, Exp Cup -	-	1	Enquire
5	W701202S300	Pin, 8 x 18.25	W701202S300 Pin, 8 x 18.25 -	-	4	Enquire
6	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE -	-	2	Enquire
7	184997	Plug 1.26 Cup (32mm)	184997 Plug 1.26 Cup (32mm) -	-	4	Enquire
8	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14 -	-	7	Enquire
9	4G430110819	Bolt Main Bearing Cap	4G430110819 Bolt Main Bearing Cap ALWAYS REPLACE. DO NOT RE-USE	-	14	Enquire
13	185133	Stud Bolt, Bearing Caps ARRIVING SOON	185133 Stud Bolt, Bearing Caps ALWAYS REPLACE. DO NOT RE-USE ARRIVING SOON	-	4	Enquire
14	11A7484CP	CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE	11A7484CP CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE -	-	2	Enquire
15	699134	Dowel, Hollow	699134 Dowel, Hollow -	-	2	Enquire
16	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14 -	-	3	Enquire
18	CD336K342BA	Heat Shield, Crank Sensor	CD336K342BA Heat Shield, Crank Sensor -	-	1	Enquire
19	702542	BOLT M6 x 20 HF PIL 8	702542 BOLT M6 x 20 HF PIL 8 -	-	2	Enquire
20	8D336050AA	HEAD ASSEMBLY CYLINDER HEAD LH	8D336050AA HEAD ASSEMBLY CYLINDER HEAD LH Excludes Valves, Adjusters, Springs and Camshafts	-	1	Enquire
21	703690	Bolt M8 x 63 Hex Flange Head	703690 Bolt M8 x 63 Hex Flange Head ALWAYS REPLACE. DO NOT RE-USE	-	4	Enquire
22	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	686044 Bolt M10 x 1.5 x 151.5, Hex Flange Head ALWAYS REPLACE. DO NOT RE-USE	-	28	Enquire
23	184996	DOWEL-10x49.25	184996 DOWEL-10x49.25 -	-	2	Enquire
24	00RG035	REEVITE - 15.9X3.2X8X82X5.4	00RG035 REEVITE - 15.9X3.2X8X82X5.4 -	-	1	Enquire
26	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head -	-	24	Enquire
27	686441	PLUG-3/8 - 18x 10.8	686441 PLUG-3/8 - 18x 10.8 -	-	2	Enquire
28	685664	ADAPTOR-O/PRESS SWTC	685664 ADAPTOR-O/PRESS SWTC -	-	1	Enquire
29	1R123910532	Switch, Oil Pressure	1R123910532 Switch, Oil Pressure -	-	1	Enquire
31	22AB581GP	CABLE TAILGATE LATCH EXT RELEASE	22AB581GP CABLE TAILGATE LATCH EXT RELEASE -	$35.46	1
32	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	702852 BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8 -	-	14	Enquire
34	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	1R120810077PK Inlet Manifold Head Gasket (Pack of 2) -	-	2	Enquire
35	CG439J444BC	SUPPORT BRACE - INT	CG439J444BC SUPPORT BRACE - INT -	-	1	Enquire
36	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8 -	-	8	Enquire
38	705136	CARTRIDGE ASSY	705136 CARTRIDGE ASSY -	-	1	Enquire
