Engine Lubrication of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

Aston Martin GT VIRAGE (2012-2013) - Engine Lubrication

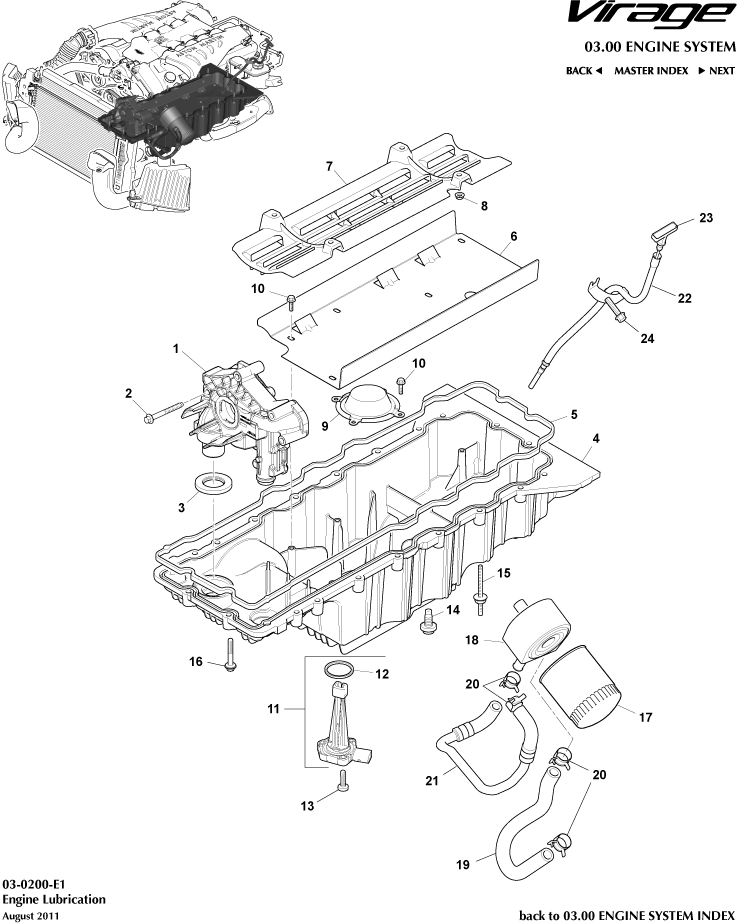

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G436K804AA	DEC ENG OIL LVL IND	4G436K804AA DEC ENG OIL LVL IND Not Illustrated	-	1	Enquire
1	8G430411112	Service Assy - Oil Pump ARRIVING SOON	8G430411112 Service Assy - Oil Pump - ARRIVING SOON	-	1	Enquire
2	702552	BOLT M8 X 70 HF PIL 8	702552 BOLT M8 X 70 HF PIL 8 -	-	4	Enquire
3	4G4E6A731AA	SEAL-OIL PMP PICK UP	4G4E6A731AA SEAL-OIL PMP PICK UP -	-	1	Enquire
4	8D336675DA	OIL PAN ASSEMBLY	8D336675DA OIL PAN ASSEMBLY Includes items 11 and 14	-	1	Enquire
7	AD236B660AC	WINDAGE TRAY	AD236B660AC WINDAGE TRAY -	-	1	Enquire
8	703168	NUT M6 HF PTM 8	703168 NUT M6 HF PTM 8 -	-	4	Enquire
9	22AB238GP	TAILGATE STRIKER	22AB238GP TAILGATE STRIKER -	-	1	Enquire
10	705052	Screw, M6 x 14	705052 Screw, M6 x 14 -	-	9	Enquire
11	4G430410972	Sensor Engine Low Oil Level	4G430410972 Sensor Engine Low Oil Level -	-	1	Enquire
12	22AC186GP	SHIM TAILGATE STRIKER 1.0MM	22AC186GP SHIM TAILGATE STRIKER 1.0MM ALWAYS REPLACE. DO NOT RE-USE	$13.33	1
13	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8 -	-	3	Enquire
14	4G430410205	Plug, Oil Pan Drain	4G430410205 Plug, Oil Pan Drain Minimum order quantity of 8	-	1	Enquire
15	702604	STUD & WASHER M6 x 20 + M8 x 47.5 HF	702604 STUD & WASHER M6 x 20 + M8 x 47.5 HF -	-	5	Enquire
16	702605	BOLT M8 x 45 HEX FLANGE 8	702605 BOLT M8 x 45 HEX FLANGE 8 -	-	15	Enquire
19	4G4E8B451BA	HOSE ASSY - ENGINE OIL COOLER	4G4E8B451BA HOSE ASSY - ENGINE OIL COOLER -	-	1	Enquire
20	3285381	CLAMP	3285381 CLAMP -	-	4	Enquire
21	4G4E6N867BB	TUB & HOS ASY-ENG OIL COOL	4G4E6N867BB TUB & HOS ASY-ENG OIL COOL -	-	1	Enquire
22	4G4E6754AD	TUBE ASSEMBLY - OIL LEVEL ASSEMBLY	4G4E6754AD TUBE ASSEMBLY - OIL LEVEL ASSEMBLY -	-	1	Enquire
23	8D336750CA	OIL LEVEL INDICATOR ASSEMBLY	8D336750CA OIL LEVEL INDICATOR ASSEMBLY -	-	1	Enquire
24	703731	Bolt, M8 x 35, Hex Flange Head	703731 Bolt, M8 x 35, Hex Flange Head -	-	1	Enquire
