Air Charging of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

Aston Martin GT VIRAGE (2012-2013) - Air Charging

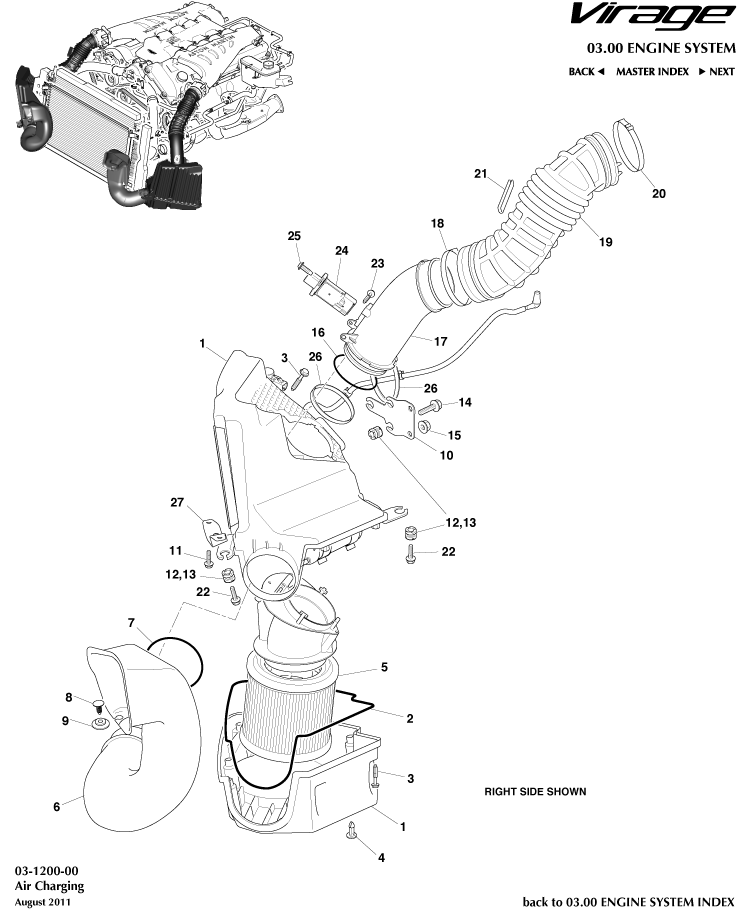

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G439600CD	Air Filter Box LH ARRIVING SOON	4G439600CD Air Filter Box LH - ARRIVING SOON	-	1	Enquire
-	4G439A675CD	Duct - Air Intake LH	4G439A675CD Duct - Air Intake LH -	-	1	Enquire
-	4G439C623DD	DUCT MS AIRFLOW BODY TO THROTTLE BODY, LH	4G439C623DD DUCT MS AIRFLOW BODY TO THROTTLE BODY, LH -	-	1	Enquire
-	7784981	FOAM STRIP ANTI RATT	7784981 FOAM STRIP ANTI RATT -	-	-	Enquire
1	4G439600BD	Airbox RH	4G439600BD Airbox RH -	-	1	Enquire
3	4G430410AA	Screw - 5.2x32 Self Tap	4G430410AA Screw - 5.2x32 Self Tap 9 Per Airbox	-	18	Enquire
4	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	2	Enquire
5	4G439601ABPK	Air Filter (Pack of 2)	4G439601ABPK Air Filter (Pack of 2) 2 Per Pack	-	2	Enquire
6	4G439A675BD	Duct- Air Intake RHS	4G439A675BD Duct- Air Intake RHS -	-	1	Enquire
7	4G436C704AA	O Ring - Engine Duct	4G436C704AA O Ring - Engine Duct -	-	2	Enquire
9	4G439N967AA	Grommet - ENG A/CLNR Tub EXT	4G439N967AA Grommet - ENG A/CLNR Tub EXT -	-	2	Enquire
10	4G439B609AC	BRACKET - AIR CLEANER OUTER	4G439B609AC BRACKET - AIR CLEANER OUTER -	-	2	Enquire
11	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	4	Enquire
12	4G439697CA	Grommet, Engine Airbox	4G439697CA Grommet, Engine Airbox 4 Per Airbox	-	8	Enquire
13	4G435144AA	Spacer, Engine Airbox Isolator	4G435144AA Spacer, Engine Airbox Isolator 4 Per Airbox	-	8	Enquire
14	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head 2 Per Airbox	-	4	Enquire
15	703161	Nut Hex M8 Flanged	703161 Nut Hex M8 Flanged -	-	4	Enquire
16	4G436C704BA	O-Ring Engine Duct Interior ARRIVING SOON	4G436C704BA O-Ring Engine Duct Interior - ARRIVING SOON	-	2	Enquire
17	4G4312B612AB	Body - Engine Electronic Mas Air Flow Sensor	4G4312B612AB Body - Engine Electronic Mas Air Flow Sensor -	-	2	Enquire
18	4G439N832BB	HOSE CLAMP DUCT TO AIRBOX	4G439N832BB HOSE CLAMP DUCT TO AIRBOX -	-	2	Enquire
19	4G439C623CD	DUCT MS AIRFLOW BODY TO THROTTLE BODY, RH	4G439C623CD DUCT MS AIRFLOW BODY TO THROTTLE BODY, RH -	-	1	Enquire
20	4G439N832AA	Clamp - Air Cleaner Hose	4G439N832AA Clamp - Air Cleaner Hose -	-	2	Enquire
21	4G4318K261AA	EDGE PROTECTION STRIP	4G4318K261AA EDGE PROTECTION STRIP -	-	2	Enquire
22	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free -	-	4	Enquire
23	4G430410AA	Screw - 5.2x32 Self Tap	4G430410AA Screw - 5.2x32 Self Tap 1 Per Airbox	-	2	Enquire
24	4G430810933	Mass Air Flow Meter ARRIVING SOON	4G430810933 Mass Air Flow Meter - ARRIVING SOON	-	2	Enquire
25	4G430410BB	Screw, M35 x 12 Self Tap	4G430410BB Screw, M35 x 12 Self Tap 2 Per Airbox	-	4	Enquire
26	8D33ANR1350AA	CABLE TIE HOSE CLIP ASSEMBLY	8D33ANR1350AA CABLE TIE HOSE CLIP ASSEMBLY -	-	2	Enquire
27	4G439B609FB	BRKT - A/CLNR OTR	4G439B609FB BRKT - A/CLNR OTR -	-	2	Enquire
