Aston Martin GT VANQUISH (2025- - Body Closures

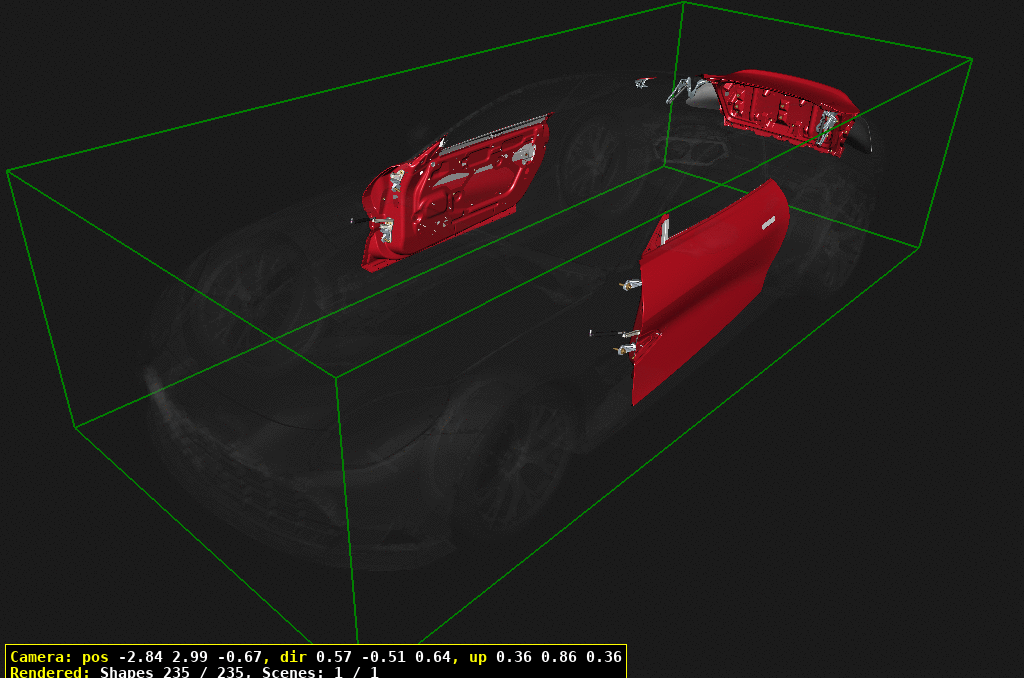

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	SY7Y20123AE	DOOR ASSY LH	SY7Y20123AE DOOR ASSY LH	-	1	Enquire
30	SY7Y20122AE	DOOR ASSY RH	SY7Y20122AE DOOR ASSY RH	-	1	Enquire
40	6485690	BALL STUD-GAS STRUT	6485690 BALL STUD-GAS STRUT	-	2	Enquire
50	HY53483686AB	BOLT & WASHER M12	HY53483686AB BOLT & WASHER M12	-	4	Enquire
60	707166	BOLT & WSHR-M8 x 30	707166 BOLT & WSHR-M8 x 30	-	8	Enquire
70	HY5322801AC	HGE ASY DR UPR LH	HY5322801AC HGE ASY DR UPR LH	-	1	Enquire
80	HY5322800AC	HGE ASY DR UPR RH	HY5322800AC HGE ASY DR UPR RH	-	1	Enquire
90	HY5322811AD	HGE ASY DR LWR LH	HY5322811AD HGE ASY DR LWR LH	-	1	Enquire
100	HY5322810AD	HGE ASY DR LWR RH	HY5322810AD HGE ASY DR LWR RH	-	1	Enquire
110	HY53F23504AD	GAS STRUT DOOR	HY53F23504AD GAS STRUT DOOR	-	2	Enquire
120	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free	-	2	Enquire
130	SY7Y10296AB	C-BKT BOWDEN CABLE	SY7Y10296AB C-BKT BOWDEN CABLE LH Door only	-	2	Enquire
140	SY9Y454B62AB	SIDE PDC ACES PNL RH	SY9Y454B62AB SIDE PDC ACES PNL RH LH Door only	-	2	Enquire
200	SY7YC40626AC	DECKLID ASSY BONDED	SY7YC40626AC DECKLID ASSY BONDED	-	1	Enquire
210	SY7Y40616AD	DECKLID OTR LWR	SY7Y40616AD DECKLID OTR LWR	-	1	Enquire
220	707515	SCREW M5 X 16 PAN HEAD BLACK	707515 SCREW M5 X 16 PAN HEAD BLACK	-	3	Enquire
230	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
240	6G336C778AA	ISOLATOR - OIL COOLER MOUTING	6G336C778AA ISOLATOR - OIL COOLER MOUTING	-	10	Enquire
250	HY5306435BA	TOL COMP FIX	HY5306435BA TOL COMP FIX	-	2	Enquire
260	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	2	Enquire
270	4G4368632BA	Nut Cap, M6 Plastic Black	4G4368632BA Nut Cap, M6 Plastic Black	-	2	Enquire
280	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head	-	4	Enquire
290	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	6	Enquire
300	SY7Y519A24AB	SURFBOARD ASSY	SY7Y519A24AB SURFBOARD ASSY Primed (SFBO/SFB5)	-	1	Enquire
301	SY7Y519A24BB	SURFBOARD ASSY	SY7Y519A24BB SURFBOARD ASSY Jet Black (SFB1)	-	1	Enquire
302	SY7Y519A24CB	SURFBOARD ASSY	SY7Y519A24CB SURFBOARD ASSY Gloss Carbon (SFB2)	-	1	Enquire
303	SY7Y519A24DB	SURFBOARD ASSY	SY7Y519A24DB SURFBOARD ASSY Satin Carbon (SFB4)	-	1	Enquire
304	SY7Y519A24EB	SURFBOARD ASSY	SY7Y519A24EB SURFBOARD ASSY Black Tinted Gloss Carbon(SFB3)	-	1	Enquire
310	SY7YC42701AA	HINGE ASSY LH	SY7YC42701AA HINGE ASSY LH	-	1	Enquire
320	SY7YC42700AA	HINGE ASSY RH	SY7YC42700AA HINGE ASSY RH	-	1	Enquire
330	707136	BLT&WSH-M8 x 25 HEX	707136 BLT&WSH-M8 x 25 HEX	-	4	Enquire
340	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	4	Enquire
350	SY7YC406A10AA	GAS STRUT LH	SY7YC406A10AA GAS STRUT LH	-	2	Enquire
400	SY7YC405A02AA	PNL FU/FILL FLAP	SY7YC405A02AA PNL FU/FILL FLAP	-	1	Enquire
410	RY53C405B96AA	ASY HNGE FU/FL FLAP	RY53C405B96AA ASY HNGE FU/FL FLAP	-	1	Enquire
420	707411	SCREW-M6 x 16 PAN	707411 SCREW-M6 x 16 PAN Black	-	3	Enquire
