Aston Martin GT VANQUISH (2025- - Centre Console

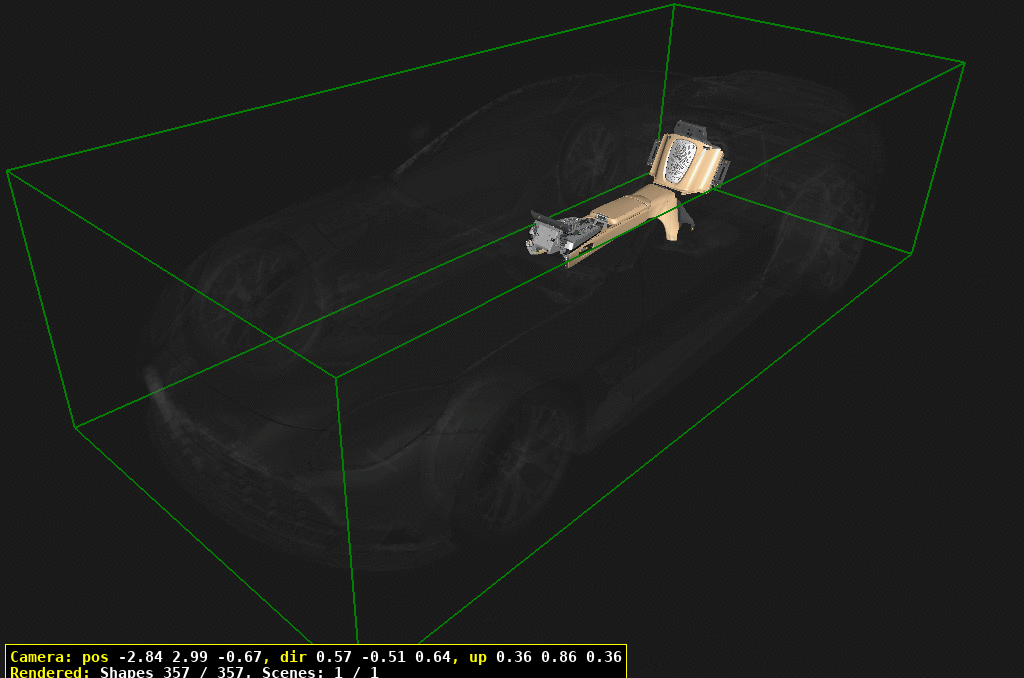

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	22AA481GP	FUEL FILLER FLAP	22AA481GP FUEL FILLER FLAP Semi Aniline	-	1	Enquire
21	14AB389CP	ASSY - FUEL FILLER	14AB389CP ASSY - FUEL FILLER Lightweight Semi Aniline	-	1	Enquire
30	13A3932CP	ACTUATOR - FUEL FILLER	13A3932CP ACTUATOR - FUEL FILLER Semi Aniline	-	1	Enquire
31	13A3933CP	HEATSHIELD - ACTUATOR HELLA	13A3933CP HEATSHIELD - ACTUATOR HELLA Lightweight Semi Aniline	-	1	Enquire
40	13A5208CP	HEATSHIELD - ACTUATOR HELLA	13A5208CP HEATSHIELD - ACTUATOR HELLA Semi Aniline	-	1	Enquire
41	13AA746CP	FOAM SEAL - LUGGAGE TOE - LONG	13AA746CP FOAM SEAL - LUGGAGE TOE - LONG Lightweight Semi Aniline	-	1	Enquire
50	RY6314891AA	CNSL SD FINISHER LHS	RY6314891AA CNSL SD FINISHER LHS Satin Chrome	-	1	Enquire
51	RY6314891BA	CNSL SD FINISHER LHS	RY6314891BA CNSL SD FINISHER LHS Dark Chrome	-	1	Enquire
60	RY6314890AA	CNSL SD FINISHER RHS	RY6314890AA CNSL SD FINISHER RHS Satin Chrome	-	1	Enquire
61	RY6314890BA	CNSL SD FINISHER RHS	RY6314890BA CNSL SD FINISHER RHS Dark Chrome	-	1	Enquire
70	8D3368D11AA	M6 X 20 SOCKET LOW HEAD BOLT STAINLESS STEEL	8D3368D11AA M6 X 20 SOCKET LOW HEAD BOLT STAINLESS STEEL	-	2	Enquire
80	13AA747CP	FOAM SEAL - LUGGAGE TOE - SHORT	13AA747CP FOAM SEAL - LUGGAGE TOE - SHORT Semi Aniline, SatinChrome	-	1	Enquire
81	11C0593CP	TAPE ADHESIVE - COROPLAST - 837X - 19X100MM	11C0593CP TAPE ADHESIVE - COROPLAST - 837X - 19X100MM Semi Aniline, Dark Chrome	-	1	Enquire
82	13AA723CP	LUGGAGE BIN - FRONT - FIRE EXTINGUISHER	13AA723CP LUGGAGE BIN - FRONT - FIRE EXTINGUISHER Lightweight Semi Aniline,Satin Chrome	-	1	Enquire
83	13A5358CP	SHROUD - HVAC FILTER	13A5358CP SHROUD - HVAC FILTER Lightweight Semi Aniline,Dark Chrome	-	1	Enquire
90	RY5313522AA	BRKT STWG CMPT MTNG	RY5313522AA BRKT STWG CMPT MTNG	-	1	Enquire
100	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	4	Enquire
110	7784981	FOAM STRIP ANTI RATT	7784981 FOAM STRIP ANTI RATT	-	2	Enquire
120	RY6313560EAW	CONSOLE CUPHOLDER	RY6313560EAW CONSOLE CUPHOLDER Semi Aniline	-	1	Enquire
121	SY7Y13560FAW	CONSOLE CUPHOLDER	SY7Y13560FAW CONSOLE CUPHOLDER Lightweight Semi Aniline	-	1	Enquire
130	RY6329765AB	CUP HLDR ASSY SATIN	RY6329765AB CUP HLDR ASSY SATIN Satin Chrome	-	1	Enquire
131	RY6329765BB	CUP HLDR ASSY DARK	RY6329765BB CUP HLDR ASSY DARK Dark Chrome	-	1	Enquire
140	RY63044K14EAW	CONSOLE CUP HOLDER C	RY63044K14EAW CONSOLE CUP HOLDER C Semi Aniline	-	1	Enquire
141	SY7Y044K14FAW	CONSOLE CUP HOLDER C	SY7Y044K14FAW CONSOLE CUP HOLDER C Lightweight Semi Aniline	-	1	Enquire
150	703746	SCREW-M6x16 PAN TORX	703746 SCREW-M6x16 PAN TORX	-	2	Enquire
160	PY83SE040K60BA	MAT - CUP HOLDER	PY83SE040K60BA MAT - CUP HOLDER	-	1	Enquire
170	RY5313523AA	RR BRKT STWG CMPT MT	RY5313523AA RR BRKT STWG CMPT MT	-	1	Enquire
180	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	-	4	Enquire
190	703144	Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	703144 Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	-	4	Enquire
200	RY5304558AA	CENTRE CONSOLE SUPPO	RY5304558AA CENTRE CONSOLE SUPPO	-	1	Enquire
220	SY7Y045J11AB	CTR STK VNR LHS	SY7Y045J11AB CTR STK VNR LHS Light Brushed Metal	-	1	Enquire
221	SY7Y045J11BB	CTR STK VNR LHS	SY7Y045J11BB CTR STK VNR LHS Dark Brushed Metal	-	1	Enquire
222	SY7Y045J11DA	CTR STK VNR LHS	SY7Y045J11DA CTR STK VNR LHS Light Ash Burl	-	1	Enquire
223	SY7Y045J11EA	CTR STK VNR LHS	SY7Y045J11EA CTR STK VNR LHS Dark Walnut	-	1	Enquire
224	TY7Y045J11CA	CTR STK VNR LHS	TY7Y045J11CA CTR STK VNR LHS Satin Carbon	-	1	Enquire
225	13A3874CP	HATCH - LUGGAGE BIN - REST OF WORLD	13A3874CP HATCH - LUGGAGE BIN - REST OF WORLD Carbon with Silver Fibres	-	1	Enquire
226	TY7Y045J11EA	CTR STK VNR LHS	TY7Y045J11EA CTR STK VNR LHS Carbon with Copper Fibres	-	1	Enquire
227	13A3882CP	HATCH - LUGGAGE BIN - FEDERAL	13A3882CP HATCH - LUGGAGE BIN - FEDERAL Carbon with Gold Fibres	-	1	Enquire
230	SY7Y045J10AB	CTR STK VNR RHS	SY7Y045J10AB CTR STK VNR RHS Light Brushed Metal	-	1	Enquire
231	SY7Y045J10BB	CT STK VN RHS	SY7Y045J10BB CT STK VN RHS Dark Brushed Metal	-	1	Enquire
232	SY7Y045J10DA	CT STK VN RHS	SY7Y045J10DA CT STK VN RHS Light Ash Burl	-	1	Enquire
233	SY7Y045J10EA	CT STK VN RHS	SY7Y045J10EA CT STK VN RHS Dark Walnut	-	1	Enquire
234	TY7Y045J10CA	CTR STK VNR RHS	TY7Y045J10CA CTR STK VNR RHS Satin Carbon	-	1	Enquire
235	13A5971CP	LAMP - LICENCE PLATE - LUGGAGE BIN	13A5971CP LAMP - LICENCE PLATE - LUGGAGE BIN Carbon with Silver Fibres	-	1	Enquire
236	TY7Y045J10EA	CTR STK VNR RHS	TY7Y045J10EA CTR STK VNR RHS Carbon with Copper Fibres	-	1	Enquire
237	13AA320CP	FOAM - SHROUD - HVAC	13AA320CP FOAM - SHROUD - HVAC Carbon with Gold Fibres	-	1	Enquire
240	SY7Y14861AB	CTR STK SW SURR SD F	SY7Y14861AB CTR STK SW SURR SD F Satin Chrome	-	1	Enquire
241	SY7Y14861BB	CTR STK SW SURR SD F	SY7Y14861BB CTR STK SW SURR SD F Dark Chrome	-	1	Enquire
250	SY7Y14860AB	CENTRE STACK SWITCH	SY7Y14860AB CENTRE STACK SWITCH Satin Chrome	-	1	Enquire
251	SY7Y14860BB	CENTRE STACK SWITCH	SY7Y14860BB CENTRE STACK SWITCH Dark Chrome	-	1	Enquire
260	SY7Y045K69AB	CENTRE STACK LOWER	SY7Y045K69AB CENTRE STACK LOWER	-	1	Enquire
270	SY7Y045K68AB	CENTRE STACK LOWER	SY7Y045K68AB CENTRE STACK LOWER	-	1	Enquire
280	SY7YV513K01AC	IP CENTRE STACK SWIT	SY7YV513K01AC IP CENTRE STACK SWIT	-	1	Enquire
290	00RA584	SCREW - BUTTON - TORX - M6X16	00RA584 SCREW - BUTTON - TORX - M6X16 Semi Aniline	-	1	Enquire
300	6G33104101BA	M4 THRD FORM SCREW	6G33104101BA M4 THRD FORM SCREW	-	4	Enquire
310	707623	Screw and Washer, M4 x 16, Pan Head	707623 Screw and Washer, M4 x 16, Pan Head	-	14	Enquire
320	703144	Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	703144 Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	-	2	Enquire
330	SY7Y04490AC	IP CENTRE STACK SWIT	SY7Y04490AC IP CENTRE STACK SWIT	-	1	Enquire
340	SY7Y04492AB	CTR STK SW SUR C FIN	SY7Y04492AB CTR STK SW SUR C FIN Satin Chrome	-	1	Enquire
341	SY7Y04492BB	IP CENTRE STACK SWIT	SY7Y04492BB IP CENTRE STACK SWIT Dark Chrome	-	1	Enquire
350	RY6311N653AA	CTR STK FLR PNL ASY	RY6311N653AA CTR STK FLR PNL ASY	-	1	Enquire
360	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP	-	26	Enquire
370	SY7Y045R19AB	CENTRE STACK FRONT F	SY7Y045R19AB CENTRE STACK FRONT F	-	1	Enquire
380	RY5311N653AA	CTR STK COUP BLNK	RY5311N653AA CTR STK COUP BLNK	-	1	Enquire
390	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP	-	2	Enquire
400	SY7Y045M880AA	CNSL STWG MAT	SY7Y045M880AA CNSL STWG MAT	-	1	Enquire
410	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw	-	6	Enquire
420	4G43015371AA	CAPTIVE U NUT M4 LOCKING	4G43015371AA CAPTIVE U NUT M4 LOCKING	-	20	Enquire
500	11N2343CP	HOOK - LUGGAGE BIN NET	11N2343CP HOOK - LUGGAGE BIN NET	-	1	Enquire
510	AD43C519A40AA	SCREW-M5x13 PN HD	AD43C519A40AA SCREW-M5x13 PN HD	-	2	Enquire
520	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head	-	2	Enquire
530	13A3439CP	LUGGAGE BIN - FIXING - CAP	13A3439CP LUGGAGE BIN - FIXING - CAP Includes items 540-550	-	1	Enquire
540	RY5318C857AA	SUBWFR SPKR GRL HALO	RY5318C857AA SUBWFR SPKR GRL HALO Silver	-	1	Enquire
541	RY5318C857BA	SUBWFR SPKR GRL HALO	RY5318C857BA SUBWFR SPKR GRL HALO Dark	-	1	Enquire
550	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw	-	4	Enquire
560	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	4	Enquire
