Sealing of Aston Martin Aston Martin GT VANQUISH (2025-

View All

Aston Martin GT VANQUISH (2025- - Sealing

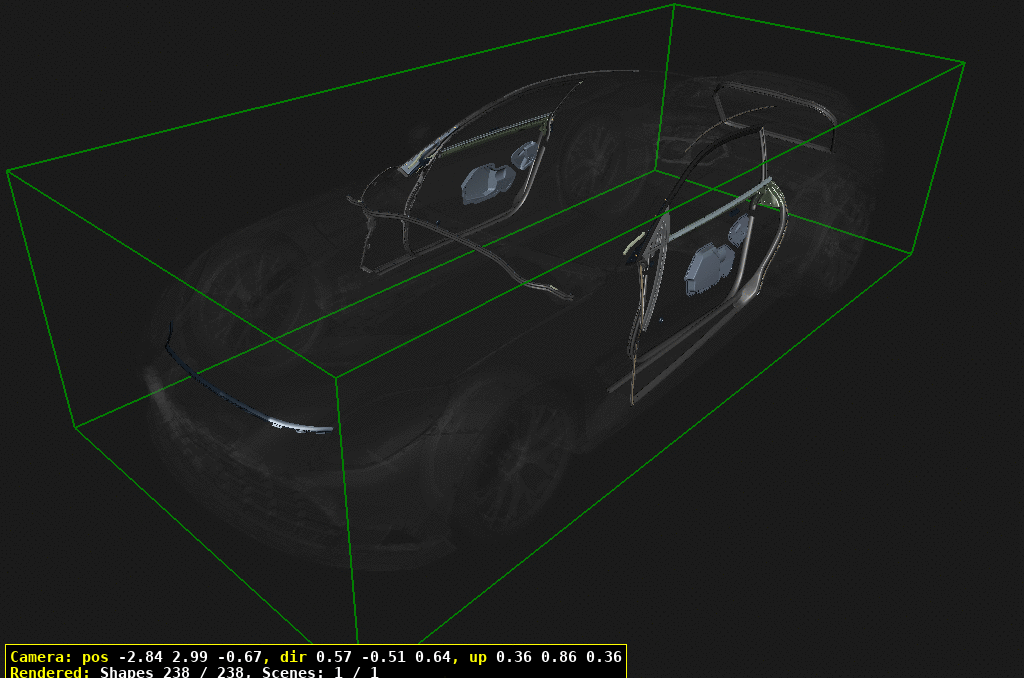

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	SY7Y16C824AA	WSTR EXT HD MARGIN	SY7Y16C824AA WSTR EXT HD MARGIN	-	1	Enquire
30	RY5316K816AB	WSTR EXT HD RR	RY5316K816AB WSTR EXT HD RR	-	1	Enquire
40	SY7YC20709AA	WSTR DR PR FRT UP LH	SY7YC20709AA WSTR DR PR FRT UP LH	-	1	Enquire
50	SY7YC20708AA	WSTR DR PR FRT UP RH	SY7YC20708AA WSTR DR PR FRT UP RH	-	1	Enquire
60	HY53C20708BE	W/STP DR PRM FRT LWR	HY53C20708BE W/STP DR PRM FRT LWR	-	2	Enquire
70	SY7YC25325AA	WSTR DR MAR LWR RR L	SY7YC25325AA WSTR DR MAR LWR RR L	-	1	Enquire
80	SY7YC25324AA	WSTR DR MAR LWR RR R	SY7YC25324AA WSTR DR MAR LWR RR R	-	1	Enquire
90	SY7YC25325CA	WSTR ASSY SILL APP	SY7YC25325CA WSTR ASSY SILL APP	-	1	Enquire
100	SY7YC25324CA	WSTR ASSY SILL APP	SY7YC25324CA WSTR ASSY SILL APP	-	1	Enquire
110	SY7YC25324BA	WSTR DR MAR LWR RR R	SY7YC25324BA WSTR DR MAR LWR RR R	-	2	Enquire
120	SY7YC215K45AA	SL DR WDW OTR LH	SY7YC215K45AA SL DR WDW OTR LH	-	1	Enquire
130	SY7YC215K44AA	SL DR WDW OTR RH	SY7YC215K44AA SL DR WDW OTR RH	-	1	Enquire
140	SY7YC20571AA	WSTR DR INR WST LH	SY7YC20571AA WSTR DR INR WST LH	-	1	Enquire
150	SY7YC20570AA	WSTR DR INR WST RH	SY7YC20570AA WSTR DR INR WST RH	-	1	Enquire
160	SY7YC20291AA	MLDG ASY FR DR TR LH	SY7YC20291AA MLDG ASY FR DR TR LH	-	1	Enquire
170	SY7YC20290AA	MLDG ASY FR DR TR RH	SY7YC20290AA MLDG ASY FR DR TR RH	-	1	Enquire
180	SY7YC20557AA	W/STRP MRGN FRT DR	SY7YC20557AA W/STRP MRGN FRT DR	-	1	Enquire
190	SY7YC20556AA	W/STRP MRGN FRT DR	SY7YC20556AA W/STRP MRGN FRT DR	-	1	Enquire
200	HY53C20563BC	W/STRIP DR OTR WST L	HY53C20563BC W/STRIP DR OTR WST L	-	1	Enquire
210	HY53C20562BC	W/STRIP DR OTR WST R	HY53C20562BC W/STRIP DR OTR WST R	-	1	Enquire
220	HY5316770AA	WSTR MR RF CTRL FSH	HY5316770AA WSTR MR RF CTRL FSH	-	2	Enquire
230	HY5316770BA	W/STRIP MRGN CHMSL	HY5316770BA W/STRIP MRGN CHMSL	-	2	Enquire
240	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	-	2	Enquire
250	HY5323713AA	FIN PNL DR APT LH	HY5323713AA FIN PNL DR APT LH	-	1	Enquire
260	HY5323712AA	FIN PNL DR APT RH	HY5323712AA FIN PNL DR APT RH	-	1	Enquire
270	SY7YC02565AA	WSTR RET ASSY LH	SY7YC02565AA WSTR RET ASSY LH	-	1	Enquire
280	SY7YC02564AA	WSTR RET ASSY RH	SY7YC02564AA WSTR RET ASSY RH	-	1	Enquire
290	AD43C519A40AA	SCREW-M5x13 PN HD	AD43C519A40AA SCREW-M5x13 PN HD	-	6	Enquire
300	703143	BUTTON TORX WASHER CHROME FREE	703143 BUTTON TORX WASHER CHROME FREE	-	2	Enquire
310	SY7YC20562BA	W/STRIP EXT GLS GD	SY7YC20562BA W/STRIP EXT GLS GD	-	2	Enquire
320	4G432273AA	BLACK TPR BODY PLUG 25mm	4G432273AA BLACK TPR BODY PLUG 25mm	-	2	Enquire
330	HY53C47775AA	FOAM STRIP	HY53C47775AA FOAM STRIP	-	4	Enquire
340	6G33451B04AA	LOADSPACE LHS HOLE PLUG 26MM DIA	6G33451B04AA LOADSPACE LHS HOLE PLUG 26MM DIA	-	2	Enquire
350	22AA905GP	HARNESS WITH CONNECTOR - DR MIR RH	22AA905GP HARNESS WITH CONNECTOR - DR MIR RH	-	2	Enquire
360	SY7YC43720AA	W/STRIP LUGG COMPT	SY7YC43720AA W/STRIP LUGG COMPT	-	1	Enquire
370	HY53C237A05AC	DR WTR SHEDDER LH LR	HY53C237A05AC DR WTR SHEDDER LH LR	-	1	Enquire
380	HY53C237A04AC	DR WTR SHEDDER RH LR	HY53C237A04AC DR WTR SHEDDER RH LR	-	1	Enquire
390	HY53C237A05BC	DR WTR SHEDDER LH SM	HY53C237A05BC DR WTR SHEDDER LH SM	-	1	Enquire
400	HY53C237A04BC	DR WTR SHEDDER RH SM	HY53C237A04BC DR WTR SHEDDER RH SM	-	1	Enquire
