Interior Trim - Upper of Aston Martin Aston Martin GT VANQUISH (2025-

View All

Aston Martin GT VANQUISH (2025- - Interior Trim - Upper

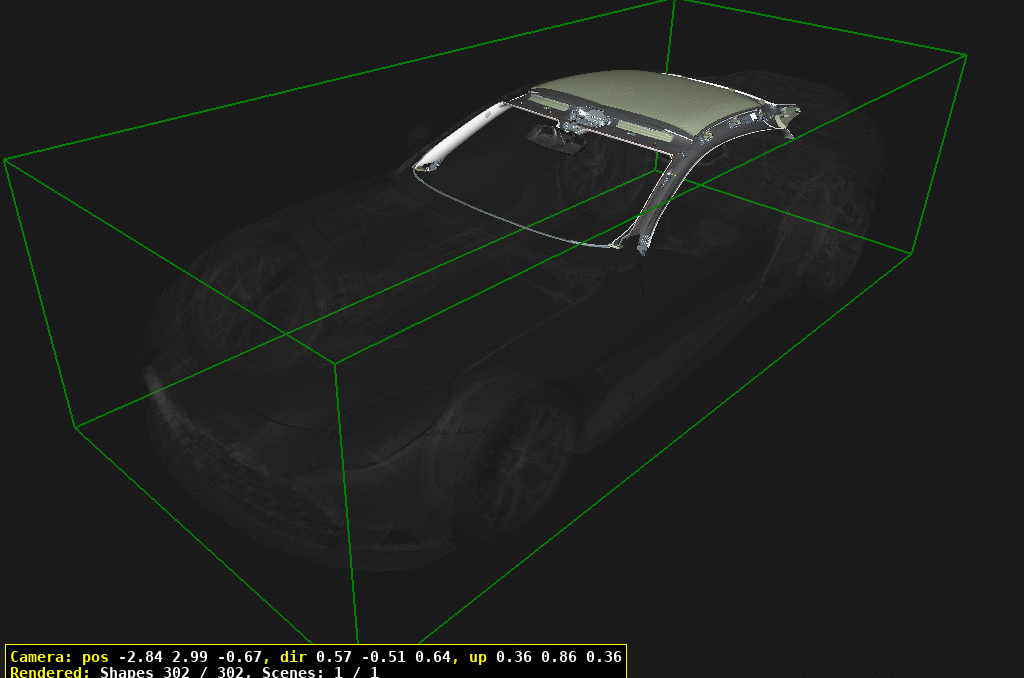

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
20	11A8434CP	MIRROR GLASS ASSEMBLY - CONVEX - LH	11A8434CP MIRROR GLASS ASSEMBLY - CONVEX - LH Includes items 50-110 &Cabin Temperature Sensor.See Section 12-00	-	1	Enquire
30	SY7YN31010AAW	PANO RR HDR ASSY	SY7YN31010AAW PANO RR HDR ASSY Panoramic Roof, Includesitems 40-60	-	1	Enquire
31	708860	P/SMPL-PEARL BLONDE	708860 P/SMPL-PEARL BLONDE Standard Roof, Includesitems 40-60	-	1	Enquire
40	FG43M4D4515AA	FOAM BLOCK SMALL	FG43M4D4515AA FOAM BLOCK SMALL	-	6	Enquire
50	AD4303722AA	CLIP TRIM	AD4303722AA CLIP TRIM ALWAYS REPLACE. DO NOTREUSE	-	6	Enquire
60	HY53103500AA	GASKET	HY53103500AA GASKET	-	6	Enquire
80	RY5319G379AA	HAVAC BEZEL	RY5319G379AA HAVAC BEZEL	-	1	Enquire
90	RY5304651BB	FRT HDR TWEETER ASSY	RY5304651BB FRT HDR TWEETER ASSY B&W Audio	-	1	Enquire
100	RY5304650BB	FRT HDR TWEETER ASSY	RY5304650BB FRT HDR TWEETER ASSY B&W Audio	-	1	Enquire
110	4G4380899AA	SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	4G4380899AA SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	-	4	Enquire
120	RY53519A60AA	MPC CVR	RY53519A60AA MPC CVR Includes item 140	-	1	Enquire
130	RY5317D550AA	MPC HARNESS CVR	RY5317D550AA MPC HARNESS CVR	-	1	Enquire
140	MY8315N402AA	U CLIP SIDE FEATURE	MY8315N402AA U CLIP SIDE FEATURE	-	4	Enquire
150	NY6369321EBW	SUNVISOR ASSY LH	NY6369321EBW SUNVISOR ASSY LH Leather	-	1	Enquire
151	MY6369321DCW	SUNVISOR ASSY LH	MY6369321DCW SUNVISOR ASSY LH Alcantara	-	1	Enquire
152	SY7Y69321JAW	SUNVISOR ASSY LH	SY7Y69321JAW SUNVISOR ASSY LH Cashmere	-	1	Enquire
160	NY6369320EBW	SUNVISOR ASSY RH	NY6369320EBW SUNVISOR ASSY RH Leather	-	1	Enquire
161	MY6369320DCW	SUNVISOR ASSY RH	MY6369320DCW SUNVISOR ASSY RH Alcantara	-	1	Enquire
162	SY7Y69320JAW	SUNVISOR ASSY RH	SY7Y69320JAW SUNVISOR ASSY RH Cashmere	-	1	Enquire
180	702138	SCREW M6x16 PAN INT	702138 SCREW M6x16 PAN INT	-	1	Enquire
190	MY83SE19G379AA	BEZEL-MICROPHONE	MY83SE19G379AA BEZEL-MICROPHONE	-	2	Enquire
200	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5) Pack of 5	-	2	Enquire
210	11A8438CP	MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - FLAT - LH	11A8438CP MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - FLAT - LH Standard Roof, Alcantara,Quilted	-	1	Enquire
211	11A8442CP	MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - LH	11A8442CP MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - LH Standard Roof, SemiAniline, Quilted	-	1	Enquire
220	HY53B43686AB	RF DMPG PNL	HY53B43686AB RF DMPG PNL Standard Roof	-	1	Enquire
230	SY7Y51918DBW	HDLING ASSY COMP ALC	SY7Y51918DBW HDLING ASSY COMP ALC Panoramic Roof	-	1	Enquire
500	SY7YC025B39AAW	A PLR CANT ASSY COMP	SY7YC025B39AAW A PLR CANT ASSY COMP Includes items 520 & 530	-	1	Enquire
510	SY7YC025B38AAW	A PLR CANT ASSY COMP	SY7YC025B38AAW A PLR CANT ASSY COMP Includes items 520 & 530	-	1	Enquire
520	AD4303722AA	CLIP TRIM	AD4303722AA CLIP TRIM ALWAYS REPLACE. DO NOTREUSE	-	8	Enquire
530	HY53103500AA	GASKET	HY53103500AA GASKET	-	8	Enquire
540	11A8446CP	ACTUATOR - DOOR MIRROR GLASS	11A8446CP ACTUATOR - DOOR MIRROR GLASS Includes items 560 & 570	-	1	Enquire
550	11A8453CP	FRAME - DOOR MIRROR GLASS - RH	11A8453CP FRAME - DOOR MIRROR GLASS - RH Includes items 560 & 570	-	1	Enquire
560	AD4303722AA	CLIP TRIM	AD4303722AA CLIP TRIM ALWAYS REPLACE. DO NOTREUSE	-	4	Enquire
570	HY53103500AA	GASKET	HY53103500AA GASKET	-	4	Enquire
580	702629	SCREW-M6x19 PAN HEAD TORX PILOT	702629 SCREW-M6x19 PAN HEAD TORX PILOT	-	10	Enquire
590	NY5323747AAW	AIRBAG LOGO SRS INSE	NY5323747AAW AIRBAG LOGO SRS INSE	-	4	Enquire
600	703085	Screw M6x12 PC TI8	703085 Screw M6x12 PC TI8	-	2	Enquire
610	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	2	Enquire
620	HY5352070AA	TPE ANTI-SQ	HY5352070AA TPE ANTI-SQ	-	A/R	Enquire
630	AG4346660BA	Foam Block	AG4346660BA Foam Block	-	2	Enquire
640	HY5323020AA	NITTO FOAM STRIP	HY5323020AA NITTO FOAM STRIP	-	1	Enquire
