Bumpers of Aston Martin Aston Martin GT VANQUISH (2025-

View All

Aston Martin GT VANQUISH (2025- - Bumpers

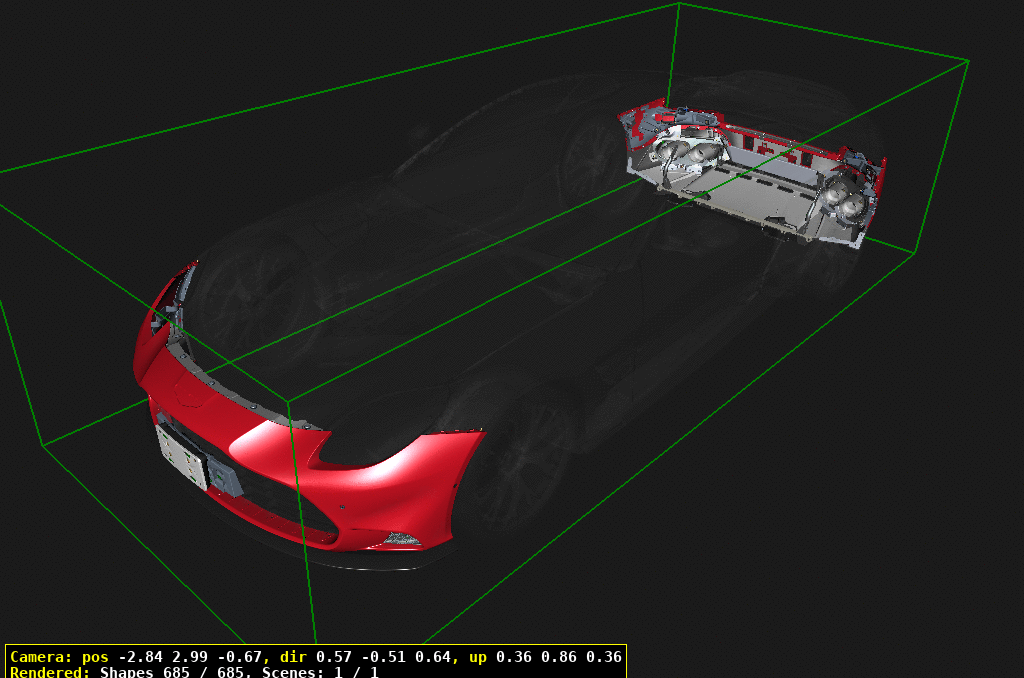

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	SY7Y17D957AB	FRT BMPR ASSY ROW	SY7Y17D957AB FRT BMPR ASSY ROW RoW	-	1	Enquire
21	SY7Y17D957BB	FRT BMPR ASSY FED	SY7Y17D957BB FRT BMPR ASSY FED Federal	-	1	Enquire
30	SY7Y17626AA	SPLITTER	SY7Y17626AA SPLITTER Gloss Black	-	1	Enquire
31	SY7Y17626BA	SPLITTER	SY7Y17626BA SPLITTER Gloss Carbon	-	1	Enquire
32	SY7Y17626CA	SPLITTER	SY7Y17626CA SPLITTER Satin Carbon	-	1	Enquire
33	SY7Y17626DA	SPLITTER	SY7Y17626DA SPLITTER Black Tint Carbon	-	1	Enquire
40	SY7Y018B71AB	SIDE BMPR DUCT LH	SY7Y018B71AB SIDE BMPR DUCT LH	-	1	Enquire
50	SY7Y018B70AB	SIDE BMPR DUCT RH	SY7Y018B70AB SIDE BMPR DUCT RH	-	1	Enquire
60	SY7Y8157AA	FRT BMPR MESH LH	SY7Y8157AA FRT BMPR MESH LH	-	1	Enquire
70	SY7Y8156AA	FRT BMPR MESH RH	SY7Y8156AA FRT BMPR MESH RH	-	1	Enquire
80	RY53MA046AAA	CAMERA BEZEL - FRONT	RY53MA046AAA CAMERA BEZEL - FRONT	-	1	Enquire
90	RY6319J219AA	HLDR CMR FRT FACING	RY6319J219AA HLDR CMR FRT FACING	-	1	Enquire
100	SY7Y16G032AA	FRT BUMPER GOP FOAM	SY7Y16G032AA FRT BUMPER GOP FOAM	-	2	Enquire
110	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	5	Enquire
120	13A5186CP	COVER - RESERVOIR - RH	13A5186CP COVER - RESERVOIR - RH	-	8	Enquire
130	HY53N623361AA	EDGE CLIP	HY53N623361AA EDGE CLIP	-	8	Enquire
140	707623	Screw and Washer, M4 x 16, Pan Head	707623 Screw and Washer, M4 x 16, Pan Head	-	1	Enquire
150	4G43015371AA	CAPTIVE U NUT M4 LOCKING	4G43015371AA CAPTIVE U NUT M4 LOCKING	-	1	Enquire
160	FD43E830667AB	WASHER 25MM X 6.4MM BLACK	FD43E830667AB WASHER 25MM X 6.4MM BLACK	-	5	Enquire
180	RY5317F773AA	AR GRL RET	RY5317F773AA AR GRL RET For Carbon Splitters only	-	12	Enquire
190	HY5388276AC	WST FINISHER BSH	HY5388276AC WST FINISHER BSH	-	1	Enquire
200	SY7Y17K835AA	CVR RR BMP ROW	SY7Y17K835AA CVR RR BMP ROW RoW	-	1	Enquire
201	SY7Y17K835BA	CVR RR BMP FED	SY7Y17K835BA CVR RR BMP FED Federal (Illustrated)	-	1	Enquire
202	SY7Y17K835CA	CVR RR BMP CHN	SY7Y17K835CA CVR RR BMP CHN China	-	1	Enquire
210	SY7Y17C870AB	DIFF CTR DUCT GL BLK	SY7Y17C870AB DIFF CTR DUCT GL BLK Gloss Black	-	1	Enquire
211	SY7Y17C870BB	DIFF CTR DUCT GL CF	SY7Y17C870BB DIFF CTR DUCT GL CF Gloss Carbon	-	1	Enquire
212	SY7Y17C870CB	DIFF CTR DUCT STN CF	SY7Y17C870CB DIFF CTR DUCT STN CF Satin Carbon	-	1	Enquire
213	SY7Y17C870DB	DIFF CTR DUCT BLK	SY7Y17C870DB DIFF CTR DUCT BLK Black Tinted Gloss Carbon	-	1	Enquire
220	SY7Y17E955AD	DIFF RR BMPR GL BLK	SY7Y17E955AD DIFF RR BMPR GL BLK Gloss Black	-	1	Enquire
221	SY7Y17E955BD	DIFF RR BMPR GL CF	SY7Y17E955BD DIFF RR BMPR GL CF Gloss Carbon	-	1	Enquire
222	SY7Y17E955CD	DIFF RR BMPR STN CF	SY7Y17E955CD DIFF RR BMPR STN CF Satin Carbon	-	1	Enquire
223	SY7Y17E955DD	DIFF RR BMPR BLK TNT	SY7Y17E955DD DIFF RR BMPR BLK TNT Black Tinted Gloss Carbon	-	1	Enquire
230	KY7317E968AC	DIFF BRKT CENTRE	KY7317E968AC DIFF BRKT CENTRE	-	1	Enquire
240	KY7317C815AC	DIFF BRKT LH	KY7317C815AC DIFF BRKT LH	-	1	Enquire
250	KY7317C814AC	DIFF BRKT RH	KY7317C814AC DIFF BRKT RH	-	1	Enquire
260	RY53278G14AA	RADAR BRACKET	RY53278G14AA RADAR BRACKET	-	2	Enquire
270	SY7Y01949AC	MESH RR BMR LH	SY7Y01949AC MESH RR BMR LH	-	1	Enquire
280	SY7Y01948AC	MESH RR BMR RH	SY7Y01948AC MESH RR BMR RH	-	1	Enquire
290	SY7Y17A826AA	RR DIFF SUP BKT	SY7Y17A826AA RR DIFF SUP BKT	-	2	Enquire
300	SY7Y5K239AC	EXH FIN LH BRIGHT	SY7Y5K239AC EXH FIN LH BRIGHT Bright	-	2	Enquire
301	SY7Y5K239CB	EXH FIN LH GLS BLK	SY7Y5K239CB EXH FIN LH GLS BLK Gloss Black	-	2	Enquire
302	SY7Y5K239EB	EXH FIN LH MAT BLK	SY7Y5K239EB EXH FIN LH MAT BLK Matt Black	-	2	Enquire
310	SY7Y5K238AB	EXH FIN RH BRIGHT	SY7Y5K238AB EXH FIN RH BRIGHT Bright	-	2	Enquire
311	SY7Y5K238CB	EXH FIN RH GLS BLK	SY7Y5K238CB EXH FIN RH GLS BLK Gloss Black	-	2	Enquire
312	SY7Y5K238EB	EXH FIN RH MAT BLK	SY7Y5K238EB EXH FIN RH MAT BLK Matt Black	-	2	Enquire
320	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	8	Enquire
330	HY535B282AA	EXH INSUL WSHR	HY535B282AA EXH INSUL WSHR	-	16	Enquire
340	SY7YF17B681AC	TLS TO REAR BUMPER B	SY7YF17B681AC TLS TO REAR BUMPER B	-	1	Enquire
350	6G3351756AA	SC M5X13 PN HD	6G3351756AA SC M5X13 PN HD	-	4	Enquire
360	SY7Y17A899AB	DIFF SCOOP LH	SY7Y17A899AB DIFF SCOOP LH	-	1	Enquire
370	SY7Y17A898AB	DIFF SCOOP RH	SY7Y17A898AB DIFF SCOOP RH	-	1	Enquire
380	703742	Fastener, Push In, 6.5 x 6.0	703742 Fastener, Push In, 6.5 x 6.0	-	12	Enquire
390	13A5186CP	COVER - RESERVOIR - RH	13A5186CP COVER - RESERVOIR - RH	-	8	Enquire
400	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	38	Enquire
410	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	38	Enquire
420	703152	SCREW/WSHR M6x20 HEX PILOT CHROME FREE	703152 SCREW/WSHR M6x20 HEX PILOT CHROME FREE	-	4	Enquire
430	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	12	Enquire
440	FD43E830667AB	WASHER 25MM X 6.4MM BLACK	FD43E830667AB WASHER 25MM X 6.4MM BLACK	-	6	Enquire
450	4G4313520AB	REAR LAMP FIX SEAL	4G4313520AB REAR LAMP FIX SEAL	-	6	Enquire
460	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm	-	4	Enquire
470	707614	BOLT-M4 PAN HD	707614 BOLT-M4 PAN HD	-	8	Enquire
480	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	2	Enquire
490	HY53N800888AA	WASHER-6IDx18ODx1.6	HY53N800888AA WASHER-6IDx18ODx1.6	-	4	Enquire
500	703198	Bolt, M6 x 40, Chrome Free	703198 Bolt, M6 x 40, Chrome Free	-	6	Enquire
510	707515	SCREW M5 X 16 PAN HEAD BLACK	707515 SCREW M5 X 16 PAN HEAD BLACK	-	2	Enquire
520	DD330816AA	Screw, M4 x 20, Pan Hd, Patch Lock	DD330816AA Screw, M4 x 20, Pan Hd, Patch Lock Fog Lamp to Rear Bumper	-	2	Enquire
530	699123	Screw, No.6 x 9.5 Countersunk Head	699123 Screw, No.6 x 9.5 Countersunk Head	-	2	Enquire
540	SY7Y17C910AA	OVERRIDER CVR RR BMP	SY7Y17C910AA OVERRIDER CVR RR BMP Federal	-	1	Enquire
550	SY7Y17C911AA	OVERRIDER CVR RR BMP	SY7Y17C911AA OVERRIDER CVR RR BMP Federal	-	1	Enquire
560	11A5697CP	OUTLET - 12V	11A5697CP OUTLET - 12V Federal	-	2	Enquire
570	HY53E603123AA	4X12 TRX PN HD DT PT	HY53E603123AA 4X12 TRX PN HD DT PT Federal	-	4	Enquire
580	SY7Y10140AA	RR BUMPER HEATSHIELD	SY7Y10140AA RR BUMPER HEATSHIELD	-	1	Enquire
590	SY7Y17G953AA	DIFF SIDE HEATSHLD L	SY7Y17G953AA DIFF SIDE HEATSHLD L	-	1	Enquire
600	SY7Y17G952AA	DIFF SIDE HEATSHLD R	SY7Y17G952AA DIFF SIDE HEATSHLD R	-	1	Enquire
700	SY7Y17A835AB	FRT PLT PLNTH	SY7Y17A835AB FRT PLT PLNTH RoW	-	1	Enquire
710	707163	SCREW-4.8 x 25	707163 SCREW-4.8 x 25	-	2	Enquire
720	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	2	Enquire
730	8G438979BA	WASHER M5X20X1.5 THK	8G438979BA WASHER M5X20X1.5 THK	-	2	Enquire
740	KY7317A835BA	FRT PLT PLNTH FED	KY7317A835BA FRT PLT PLNTH FED Federal	-	1	Enquire
750	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	4	Enquire
760	6G430516BBA	Screw, M6 x 16, Self Tapping	6G430516BBA Screw, M6 x 16, Self Tapping	-	6	Enquire
770	RY5317A835CA	FRT PLT PLNTH	RY5317A835CA FRT PLT PLNTH Swiss, GCC	-	1	Enquire
780	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	2	Enquire
790	707163	SCREW-4.8 x 25	707163 SCREW-4.8 x 25	-	2	Enquire
800	RY5317A835DA	FRT PLT PLNTH	RY5317A835DA FRT PLT PLNTH China	-	1	Enquire
810	707163	SCREW-4.8 x 25	707163 SCREW-4.8 x 25	-	2	Enquire
820	RY5317A835EA	FRT PLT PLNTH	RY5317A835EA FRT PLT PLNTH Japan	-	1	Enquire
830	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	2	Enquire
840	707163	SCREW-4.8 x 25	707163 SCREW-4.8 x 25	-	2	Enquire
900	6G3317B389AE	LICENCE PLT BRKT-FED	6G3317B389AE LICENCE PLT BRKT-FED Federal, Swiss	-	1	Enquire
910	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	6	Enquire
920	707629	SCREW-S/TAP-4.8	707629 SCREW-S/TAP-4.8	-	2	Enquire
930	CD3317B389DD	LICENCE PLT BRKT CHI	CD3317B389DD LICENCE PLT BRKT CHI China	-	1	Enquire
940	707629	SCREW-S/TAP-4.8	707629 SCREW-S/TAP-4.8	-	2	Enquire
950	AD4313418BA	Bracket, Number Plate, Rear	AD4313418BA Bracket, Number Plate, Rear	-	2	Enquire
960	702943	Rivet, 3.2 x 12.5, Blind Al Dome Head	702943 Rivet, 3.2 x 12.5, Blind Al Dome Head	-	4	Enquire
