Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Air Cleaner and Emissions

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

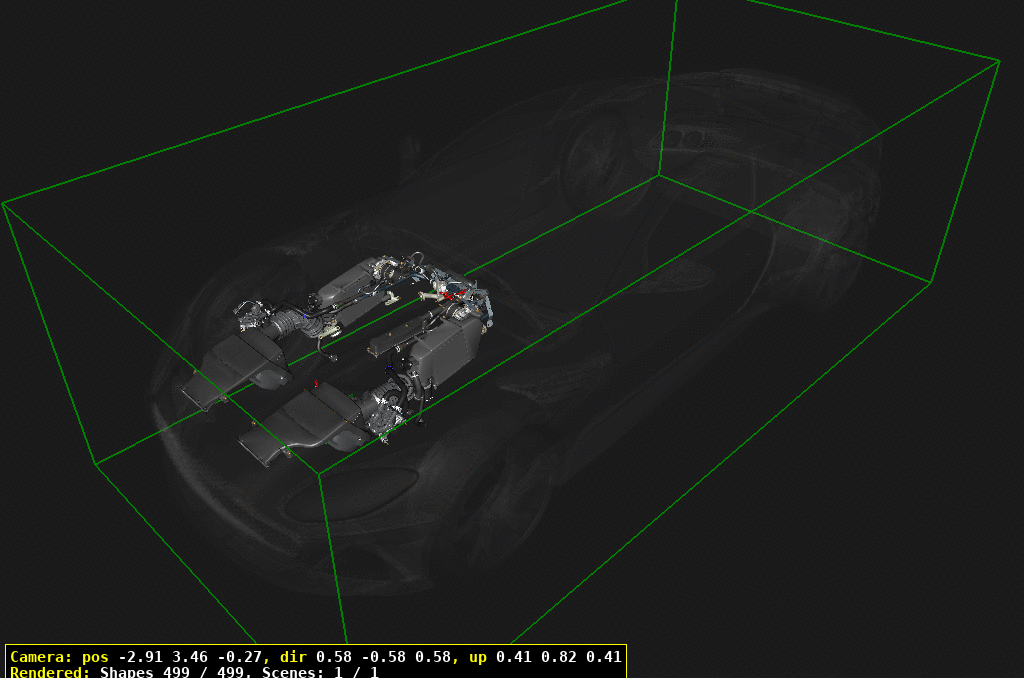

Air Cleaner and Emissions of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
10 HY53401101BA
WRM DRV CLMP 		- 2 Enquire
20 HY539G823AA
GROMMET - AIRBOX MTG 		- 4 Enquire
30 HY539C622AC
RH CLEAN AIR DUCTS 		- 1 Enquire
40 HY539C623AC
LH CLEAN AIR DUCTS 		- 1 Enquire
50 HY5352081AC
LH AIRBOX ASSY
Includes items 60-100 		- 1 Enquire
60 HY539S449AB
PUMP INLET HOSE LH 		- 1 Enquire
70 HY539601AA
AIR FILTER 		- 2 Enquire
80 HY5312B579AA
MAF SENSOR 		- 1 Enquire
90 HY5319214AA
O-RING 5MMX86MM ID 		- 1 Enquire
100 702944
Nut, M6, Hex Flanged Head 		- 2 Enquire
110 HY5352080AB
RH AIRBOX ASSY
Includes items 120-160 		- 1 Enquire
120 HY539S464AB
PUMP INLET HOSE RH 		- 1 Enquire
130 702944
Nut, M6, Hex Flanged Head 		- 2 Enquire
140 HY5312B579AA
MAF SENSOR 		- 1 Enquire
150 HY5319214AA
O-RING 5MMX86MM ID 		- 1 Enquire
160 HY539N832AA
BAND CLAMPS 		- 2 Enquire
170 HY5317Z606AA
CABLE CLIP 		- 2 Enquire
180 HY539A317AA
CABLE CLIP 		- 1 Enquire
190 55030362
VALIGIA 48H BDGE F167RHT 		- 4 Enquire
200 55030360
TROLLEY BDGE F167RHT 		- 4 Enquire
210 4G430410AA
Screw - 5.2x32 Self Tap 		- 12 Enquire
220 55030361
VALIGIA 24H BDGE F167RHT 		- 4 Enquire
300 HY539C441AB
SCNDRY AIR PMP LH 		- 1 Enquire
310 HY539C440AB
SCNDRY AIR PMP RH 		- 1 Enquire
320 703196PK
BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)
Pack of 10 		- 4 Enquire
330 704328
Screw, M5 x 20, Torx Pan Head 		- 8 Enquire
340 HY539B449BB
FEED TUBE LH 		- 1 Enquire
350 702544
BOLT M6 x 50 HF PIL 8 		- 2 Enquire
360 HY539B448BB
FEED TUBE RH 		- 1 Enquire
370 HY539F491AA
AIR CONTROL VALVE 		- 2 Enquire
380 HY536G089BA
GASKET 		- 4 Enquire
390 HY539S476BA
PUMP DEL HOSE RH 		- 1 Enquire
395 HY539S476CA
FRONTRHSAIENGINEHOSE 		- 1 Enquire
400 HY539S477BA
PUMP DEL HOSE LH 		- 1 Enquire
405 HY539S477CA
FRONTLHSAIENGINEHOSE 		- 1 Enquire
410 HY539G491AD
BRACKET WIRE HRNS 		- 1 Enquire
430 HY530810210
VACUUM SOLENOID 		- 2 Enquire
440 55031037
COMPL. POCKET CHANGE TRAY LINER 		- 2 Enquire
450 HY539D438AA
VAC HARNESS-MAIN 		- 1 Enquire
460 HY539D438BA
VAC HARNESS LH 		- 1 Enquire
470 HY539D438CA
VAC HARNESS RH 		- 1 Enquire
480 702298
BOLT M8x16 HEX FLG 		- 2 Enquire
490 HY533678AAAA
CABLE TIE 		- 2 Enquire
500 HY536B673AD
SEPARATOR ASY OIL 		- 1 Enquire
510 HY536B752AA
FRONT OIL SPRTR GSKT 		- 1 Enquire
515 HY536B752BA
REAR OIL SPRTR GSKT 		- 1 Enquire
520 707155
BOLT-M6 x 65 		- 2 Enquire
530 HY536N66NAB
HOSE ASY CRNKCS BRTH 		- 1 Enquire
540 HY5313447BA
OETIKER (34.4-37.6) 		- 1 Enquire
550 HY539E498AB
CONN ASY EMS VAC CNT 		- 1 Enquire
560 HY539E498BB
CONN ASY EMS VAC CNT 		- 1 Enquire
570 HY539E498EA
CONN ASY EMS VAC CNT 		- 1 Enquire
580 HY539E498DB
CONN ASY EMS VAC CNT 		- 1 Enquire
590 HY5313447AA
OETIKER (23.9-27.1) 		- 2 Enquire
600 702534
SCREW M6x25 HEX FLG 		- 4 Enquire
700 HY539B051AD
PURGE VALVE
Clip On Isolator 		- 1 Enquire
710 HY539S331BC
THROTTLE CUFF 		- 2 Enquire
720 HY539W541AA
ADPT A/INTK CHG 		- 2 Enquire
730 HY539E926AA
T/BODY ASY - LH 		- 1 Enquire
740 HY539E927AA
T/BODY ASSY - RH 		- 1 Enquire
750 HY536K808CA
SUPT-ENG CHG AIR BRK 		- 1 Enquire
760 HY536K808BA
SUPT-ENG CHG AIR BRK 		- 1 Enquire
780 55031109
COMPL. LH ROOF LINKAGE COVER PANEL 		- 1 Enquire
800 HY539W549FA
INT MAN AD RH 		- 1 Enquire
820 HY53F9793AB
SEAL DCT TO THRTLE 		- 2 Enquire
830 703141
SCREW M8 x 16 CHROME FREE 		- 4 Enquire
840 HY53F9793AB
SEAL DCT TO THRTLE 		- 2 Enquire
850 55035832
PANTINA DX GDX OPT PELLE 		- 8 Enquire
860 707129
BOLT-M6x1x30 HEX FLG 		- 8 Enquire
870 HY539E936AA
O-RING-69 x 2 mm 		- 2 Enquire
900 HY536K775CB
WCAC ASSY LH 		- 1 Enquire
910 HY536K775DB
WCAC ASSY RH 		- 1 Enquire
920 HY532976CB
TUB-MANF TO A/COMPLH 		- 1 Enquire
930 HY532976DB
TUB-MANF TO A/COM-RH 		- 1 Enquire
940 HY539K308CB
TUBE-AIR BYP V/INL-L 		- 1 Enquire
950 HY539K308DB
TUBE-AIR BYP V/INL-R 		- 1 Enquire
960 HY536K767BB
BRKT FR WCAC 		- 2 Enquire
970 55036988
PANTINA SX OPT PELLE USA 		- 1 Enquire
980 55040768
RH SIDE SEATS 		- 1 Enquire
990 HY536790AA
BUSH 		- 2 Enquire
1000 HY535144AA
SPACER 		- 2 Enquire
1010 702573
BOLT M8 X 35 		- 2 Enquire
1020 702844
BOLT-M8 x 30 HF 8 		- 8 Enquire
1030 SY9Y14A280BB
ANT GND LINK 		- 2 Enquire
1040 HY536790BA
BUSH (REAR) 		- 2 Enquire
1050 55040797
RH SEAT CUSHION 		- 2 Enquire
1060 702565
BOLT M6 X 16 		- 2 Enquire
1070 702637
SCREW M6X20 SKT HD 		- 6 Enquire
1080 HY53223035AA
RECIRC VALVE TR BCH 		- 2 Enquire
