Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Sump and Lubrication

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

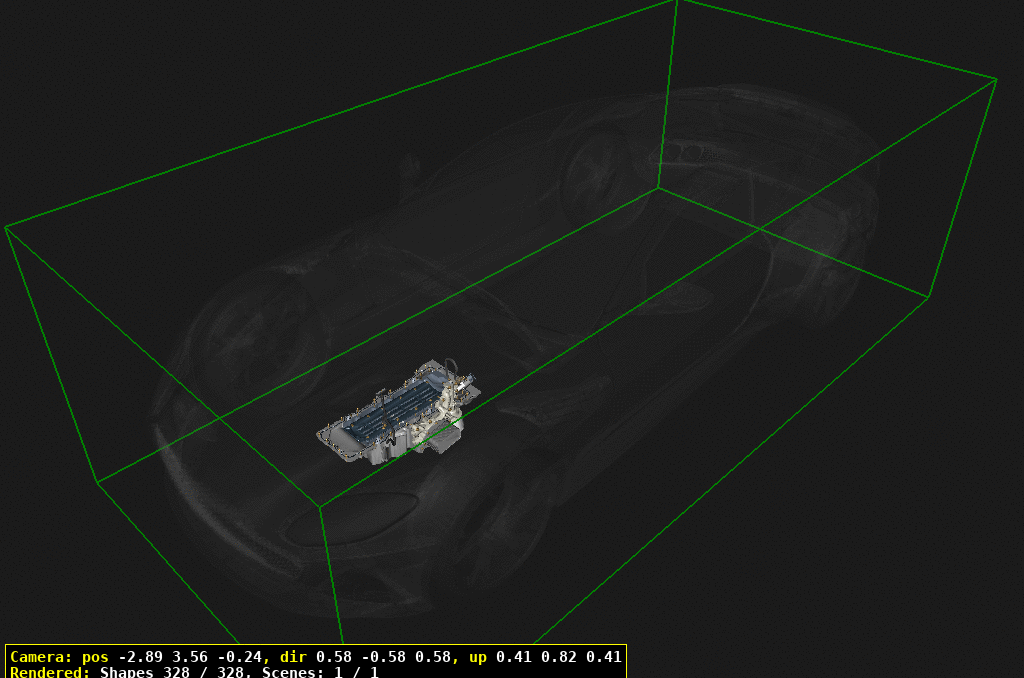

Sump and Lubrication of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
10 NY738B512AA
OIL COOL FILTER ASSY
Includes items 20-40 &520 		- 1 Enquire
20 HY5361J17AA
OIL CLR MDL O-RING 		- 4 Enquire
30 702542
BOLT M6 x 20 HF PIL 8 		- 6 Enquire
40 HY536A642AB
ENGINE OIL COOLER 		- 1 Enquire
60 HY536675AD
AM31 OIL PAN ASSY
No Longer Available 		- 1 Enquire
61 HY536675AE
AM31 OIL PAN ASSY
Includes items 70-100 		- 1 Enquire
70 702847
SCREW-M6x25 PAN INT LOB 8 		- 3 Enquire

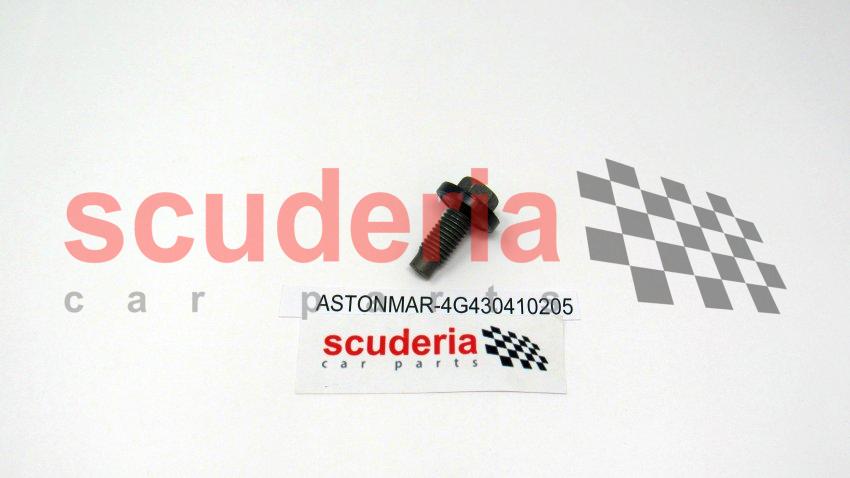

80 4G430410205
Plug, Oil Pan Drain
Minimum order quantity of8. Not to be used withSump HY53-6675-AE 		- 1 Enquire

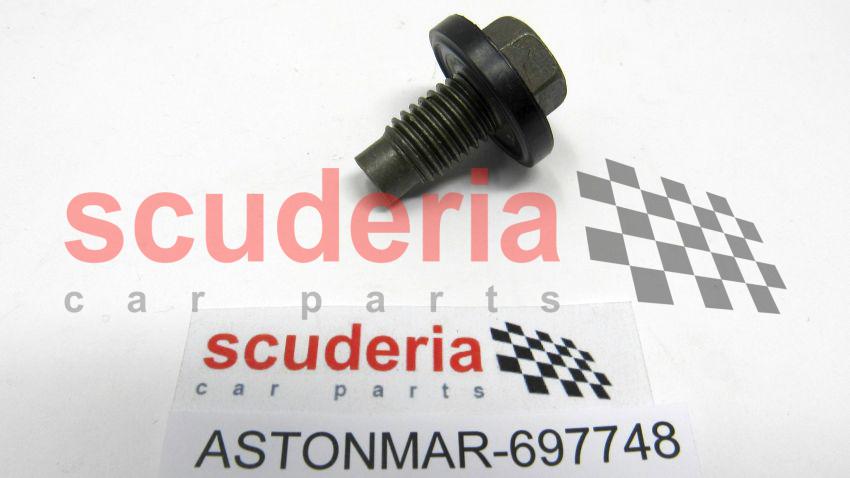

81 697748
Plug-Oil Pan Drain
Use only with SumpHY53-6675-AE 		- 1 Enquire
90 4G430410972
Sensor Engine Low Oil Level
Includes item 100 		- 1 Enquire
100 8W9387030BA
O Ring, Engine Low Oil Level Sensor
ALWAYS REPLACE. DO NOTRE-USE 		- 1 Enquire
110 702542
BOLT M6 x 20 HF PIL 8 		- 12 Enquire
120 HY536722CA
O RING OIL PAN SEAL
200mm 		- 1 Enquire
130 HY536L623AA
SC-OIL PMP RET 		- 1 Enquire
140 702844
BOLT-M8 x 30 HF 8 		- 4 Enquire
150 702565
BOLT M6 X 16 		- 1 Enquire
160 HY536632AA
SHLD OIL PMP PICKUP 		- 1 Enquire
170 HY536617AB
ASSY OIL PICKUP 		- 1 Enquire
180 HY536B677AB
BTHR DRAIN PIP RH 		- 1 Enquire
190 HY536B677BB
BRTHR DRAIN PIP LH 		- 1 Enquire
200 HY536A895AA
AM31 OIL PMP DRV CHN 		- 1 Enquire
210 HY539G441BB
TUB ASY TRBCH OIL RT 		- 1 Enquire
220 HY539G441DB
TUB ASY TRBCH OIL 		- 1 Enquire
230 HY539G441EB
TUB OIL RTN IN RH LW 		- 1 Enquire
240 HY539G441FB
TUB OIL RTN IN LH LW 		- 1 Enquire
250 703145
M6 x 30 WSHR HO BOLT ASSY CHROME FREE 		- 1 Enquire
260 HY535144AA
SPACER 		- 1 Enquire
270 HY536790AA
BUSH 		- 1 Enquire
280 HY536D603AA
NRV BREATHER SYSTEM 		- 4 Enquire
290 HY536621AB
AM31 OIL PMP 		- 1 Enquire
300 HY536C880AA
SOLENOID OIL VALVE 		- 1 Enquire
310 HY536C747AA
BDY VLV PMP 		- 1 Enquire
320 701553
Screw, M6 x 16, Pan Head 		- 2 Enquire
330 707160
BOLT-M8 x 140 HF 8 		- 2 Enquire
340 SY9Y10677AA
SD DR ELATCH CAB COV 		- 21 Enquire
350 HY536W601AA
GSKT-OIL CLR ADPT 		- 1 Enquire
360 HY536710BA
SUMP TO BLOCK GASKET 		- 1 Enquire
370 HY537527LEGAA
FIR TREE CON INSRT 		- 1 Enquire
380 HY5317443AA
O-RING 33X3.5 		- 1 Enquire
390 HY5332603AA
OIL PUMP SLND BRKT 		- 1 Enquire
400 702532
BOLT M8 x 50 HEX FLNG PIL.8 		- 6 Enquire
410 HY536686AC
BAF OIL PAN 		- 1 Enquire
420 HY536B634AA
BRKT ASY OIL COOL 		- 1 Enquire
430 55020698
WATER RETURN PIPE FROM RH TURBO
Before ordering areplacement Dipstick,please refer to PartsBulletin I_PSB_2024_499V2 		- 1 Enquire
440 HY536754AA
TUB IND ASSY OIL LVL 		- 1 Enquire
450 4G436K804AA
DEC ENG OIL LVL IND 		- 1 Enquire
451 HY536K804AA
DEC OIL LEV IND
GOLD, Jewellery Pack 		- 1 Enquire
460 702565
BOLT M6 X 16 		- 3 Enquire
470 702573
BOLT M8 X 35 		- 1 Enquire
480 702542
BOLT M6 x 20 HF PIL 8 		- 11 Enquire
500 HY536B660AB
WND OIL TRAY 		- 1 Enquire
510 HY53116632AA
CLIP-SPRING 		- 1 Enquire
520 HY536K829AA
PLUG-TAPPED OIL 		- 1 Enquire
