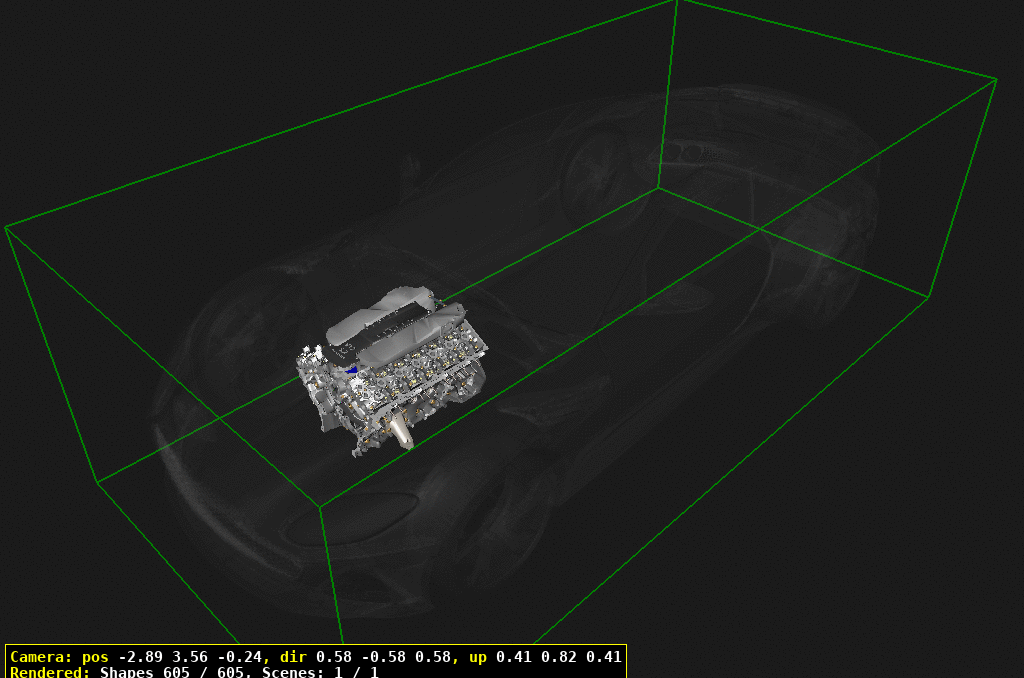

Engine Structure of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023)

View All

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Engine Structure

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
10	HY536007AA	AE31 ENGINE ASSY	HY536007AA AE31 ENGINE ASSY -> VIN T02727. IncludesAncillaries & WCAC notillustrated	-	1	Enquire
11	HY536007AB	AE31 ENGINE ASSY	HY536007AB AE31 ENGINE ASSY VIN T02728->. IncludesAncillaries & WCAC notillustrated	-	1	Enquire
20	12515B3B3F6	Add. wiring harness, temperature sensor	12515B3B3F6 Add. wiring harness, temperature sensor -> VIN T02727. Includesitems 40-140	-	1	Enquire
21	SY9YC025B38CBW	A PILLAR ASSY RH ROW	SY9YC025B38CBW A PILLAR ASSY RH ROW VIN T02728->. Includesitems 40-140	-	1	Enquire
30	4G430110203	Bolt, M10 x 1.5 x 91	4G430110203 Bolt, M10 x 1.5 x 91 Main Bearing Cap Inner.ALWAYS REPLACE. DO NOTRE-USE	-	14	Enquire
40	4G430110819	Bolt Main Bearing Cap	4G430110819 Bolt Main Bearing Cap Crankcase. ALWAYSREPLACE. DO NOT RE-USE	-	14	Enquire
50	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head ARRIVING SOON	4G430110202 Bolt, M8 x 1.25 x 82, Hex Head Main Bearing Cap Outer.ALWAYS REPLACE. DO NOTRE-USE ARRIVING SOON	-	14	Enquire
60	HY53205029AA	ANTI DRAIN VALVE	HY53205029AA ANTI DRAIN VALVE	-	2	Enquire
70	184997	Plug 1.26 Cup (32mm)	184997 Plug 1.26 Cup (32mm)	-	4	Enquire
80	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE	-	5	Enquire
90	707150	PIN	707150 PIN	-	2	Enquire
100	707151	PIN-6x16 DWL CHMFR H	707151 PIN-6x16 DWL CHMFR H	-	5	Enquire
110	699134	Dowel, Hollow	699134 Dowel, Hollow	-	2	Enquire
120	185000	Plug, 52.6 dia cup	185000 Plug, 52.6 dia cup	-	1	Enquire
130	704775	Plug, 19.35, Exp Cup	704775 Plug, 19.35, Exp Cup	-	1	Enquire
140	707161	DOWEL-HOLLOW-16.4	707161 DOWEL-HOLLOW-16.4	-	4	Enquire
150	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Pack of 10	-	8	Enquire
160	HY536031AA	ENGINE MOUNT BRACKET	HY536031AA ENGINE MOUNT BRACKET	-	2	Enquire
170	HY536869BB	FRT CVR CRKC VENT	HY536869BB FRT CVR CRKC VENT	-	1	Enquire
180	HY536869AB	RR CVR CRKC VENT	HY536869AB RR CVR CRKC VENT	-	1	Enquire
190	HY536B752BA	REAR OIL SPRTR GSKT	HY536B752BA REAR OIL SPRTR GSKT	-	1	Enquire
200	702565	BOLT M6 X 16	702565 BOLT M6 X 16	-	3	Enquire
210	HY536B752AA	FRONT OIL SPRTR GSKT	HY536B752AA FRONT OIL SPRTR GSKT	-	1	Enquire
220	HY536M099AA	CYLINDER HEAD ASY-LH	HY536M099AA CYLINDER HEAD ASY-LH AE31, With Valves,Adjusters & Springs	-	1	Enquire
221	286894	RIVETTO PERFORANTE D.5,3X5	286894 RIVETTO PERFORANTE D.5,3X5 AE31, Less Valves,Adjusters, Springs &Camshafts	-	1	Enquire
222	294928	GEARBOX BOX	294928 GEARBOX BOX AE31a, With Valves,Adjusters & Springs	-	1	Enquire
223	294930	REAR BOX HIBRYD DCT	294930 REAR BOX HIBRYD DCT AE31a, Less Valves,Adjusters, Springs &Camshafts	-	1	Enquire
230	HY536F093AA	CYL HEAD RH	HY536F093AA CYL HEAD RH AE31, With Valves,Adjusters & Springs	-	1	Enquire
231	364024647	PELLE BORDEAUX 4481	364024647 PELLE BORDEAUX 4481 AE31, Less Valves,Adjusters, Springs &Camshafts	-	1	Enquire
232	55013534	OIL DELIVERY PIPE TO RH TURBO	55013534 OIL DELIVERY PIPE TO RH TURBO AE31a, With Valves,Adjusters & Springs	-	1	Enquire
233	55015770	FLOOR MAT KIT	55015770 FLOOR MAT KIT AE31a, Less Valves,Adjusters, Springs &Camshafts	-	1	Enquire
235	HY536065AA	HEAD BOLT M12	HY536065AA HEAD BOLT M12 ALWAYS REPLACE. DO NOTRE-USE	-	28	Enquire
240	186452	Plug, 1/4-18 x 10.8	186452 Plug, 1/4-18 x 10.8	-	10	Enquire
245	HY536K799AA	OIL RSTRCTR TO C/SHT	HY536K799AA OIL RSTRCTR TO C/SHT Camshaft oil feed	-	4	Enquire
250	707130	BOLT-M6x1.06x40 HEX	707130 BOLT-M6x1.06x40 HEX	-	56	Enquire
260	686441	PLUG-3/8 - 18x 10.8	686441 PLUG-3/8 - 18x 10.8	-	2	Enquire
280	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE	-	2	Enquire
290	707152	PIN-10 x 49.25 DWL	707152 PIN-10 x 49.25 DWL	-	2	Enquire
300	707153	PLUG-INT HEX DRYSEAL	707153 PLUG-INT HEX DRYSEAL	-	2	Enquire
310	HY533823AC	STUD (EXH MANIFOLD)	HY533823AC STUD (EXH MANIFOLD) ALWAYS REPLACE. DO NOTRE-USE	-	24	Enquire
320	703690	Bolt M8 x 63 Hex Flange Head	703690 Bolt M8 x 63 Hex Flange Head ALWAYS REPLACE. DO NOTRE-USE	-	4	Enquire
330	HY5312K530AB	BRKT ENG SP KN SNS C	HY5312K530AB BRKT ENG SP KN SNS C	-	1	Enquire
340	HY536083BA	CYL HD GSKT LH	HY536083BA CYL HD GSKT LH	-	1	Enquire
350	HY536051BA	CYL HD GSKT RH	HY536051BA CYL HD GSKT RH	-	1	Enquire
360	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	1R120810077PK Inlet Manifold Head Gasket (Pack of 2) Pack of 2	-	1	Enquire
370	4G430810002	Isolator, Intake, Manifold	4G430810002 Isolator, Intake, Manifold	-	14	Enquire
380	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	702852 BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	-	14	Enquire
390	HY539J444AB	VALLEY BRACE	HY539J444AB VALLEY BRACE	-	1	Enquire
400	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD	-	8	Enquire
410	HY539E360AA	FU/VPR PURGE BRACKET	HY539E360AA FU/VPR PURGE BRACKET	-	1	Enquire
420	702565	BOLT M6 X 16	702565 BOLT M6 X 16	-	2	Enquire
430	702542	BOLT M6 x 20 HF PIL 8	702542 BOLT M6 x 20 HF PIL 8	-	1	Enquire
440	HY539425BD	MANF INTK UPR LH	HY539425BD MANF INTK UPR LH	-	1	Enquire
450	HY539425AC	MANF INTK UPR RH	HY539425AC MANF INTK UPR RH	-	1	Enquire
460	HY536N078AA	OIL SQUIRT JET	HY536N078AA OIL SQUIRT JET	-	12	Enquire
470	707149	SCREW-M6x10 EXTR LOB	707149 SCREW-M6x10 EXTR LOB	-	12	Enquire
480	MY6Y9S447AA	PLG ASY INTK MANF	MY6Y9S447AA PLG ASY INTK MANF Includes item 490	-	1	Enquire
490	HY53532387AA	O RING	HY53532387AA O RING	-	1	Enquire
500	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	1	Enquire
