Engine Ancillaries of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023)

View All

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Engine Ancillaries

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

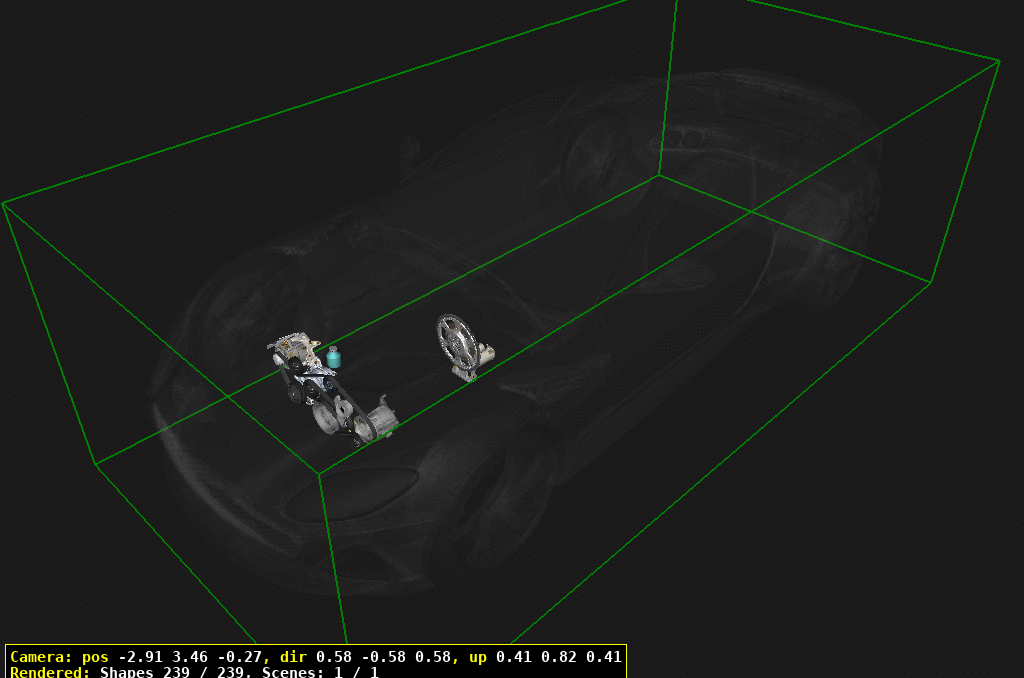

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	702557	BOLT M8 X 100 HF 8	702557 BOLT M8 X 100 HF 8	-	3	Enquire
30	HY5319D629AB	COMPR & CL ASY A/C	HY5319D629AB COMPR & CL ASY A/C -> 22MY	-	1	Enquire
31	HY5319D629AC	COMPRESSOR & CL ASSEMBLY AIR CONDITIONING	HY5319D629AC COMPRESSOR & CL ASSEMBLY AIR CONDITIONING 22MY->	-	1	Enquire
40	HY538620AA	FEAD BELT	HY538620AA FEAD BELT	-	1	Enquire

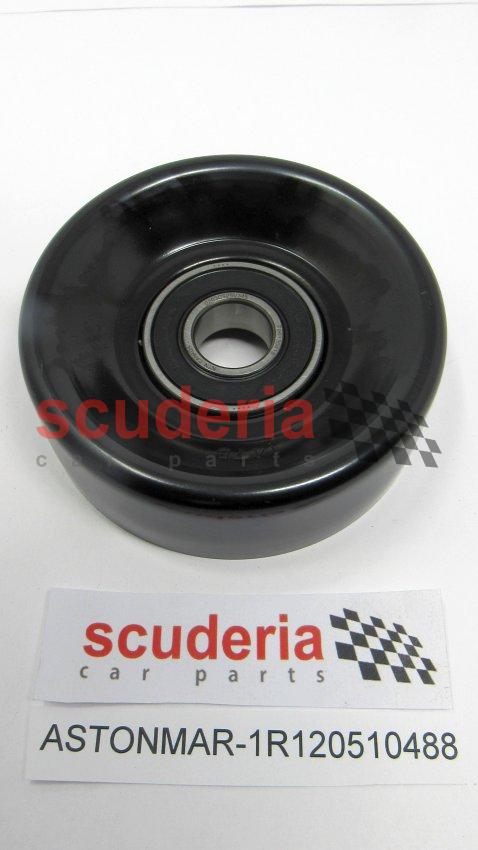

50	1R120510488	Pulley, Engine Idler	1R120510488 Pulley, Engine Idler	-	3	Enquire

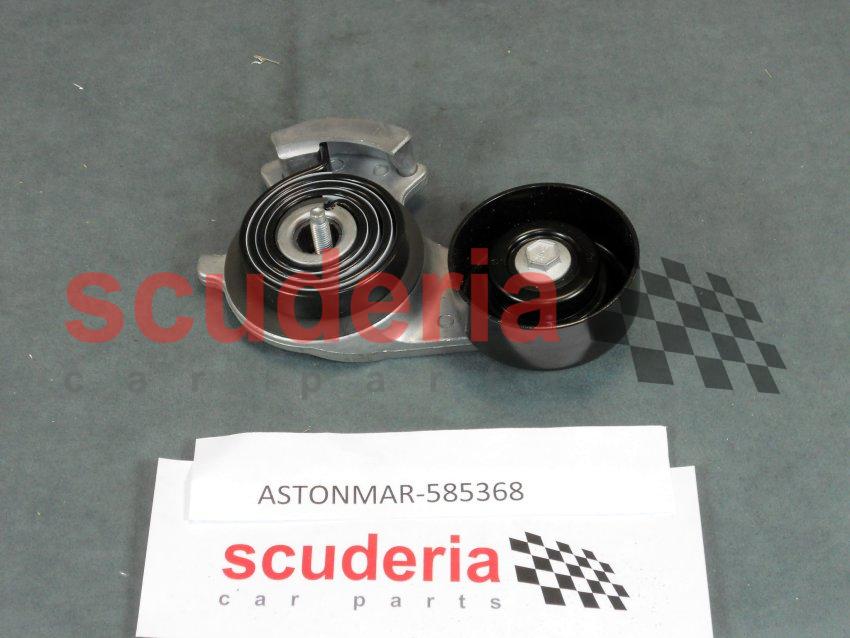

60	585368	Tensioner Drive Belt	585368 Tensioner Drive Belt	-	1	Enquire
70	703702	BOLT M8x1.25x24.5	703702 BOLT M8x1.25x24.5	-	4	Enquire
80	702573	BOLT M8 X 35	702573 BOLT M8 X 35	-	2	Enquire
90	HY538B616AB	BRKT ASY ISL SPT	HY538B616AB BRKT ASY ISL SPT	-	1	Enquire
100	702856	BOLT&WASHER-M10x97.5	702856 BOLT&WASHER-M10x97.5	-	2	Enquire
110	703192	SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE	703192 SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE	-	4	Enquire
120	HY5310300AC	ALTERNATOR 220A	HY5310300AC ALTERNATOR 220A	-	1	Enquire
130	HY5310239AB	ALT BRKT MTG	HY5310239AB ALT BRKT MTG	-	1	Enquire
140	HY5310C792AA	WATER SHEDDER-ALT	HY5310C792AA WATER SHEDDER-ALT	-	1	Enquire

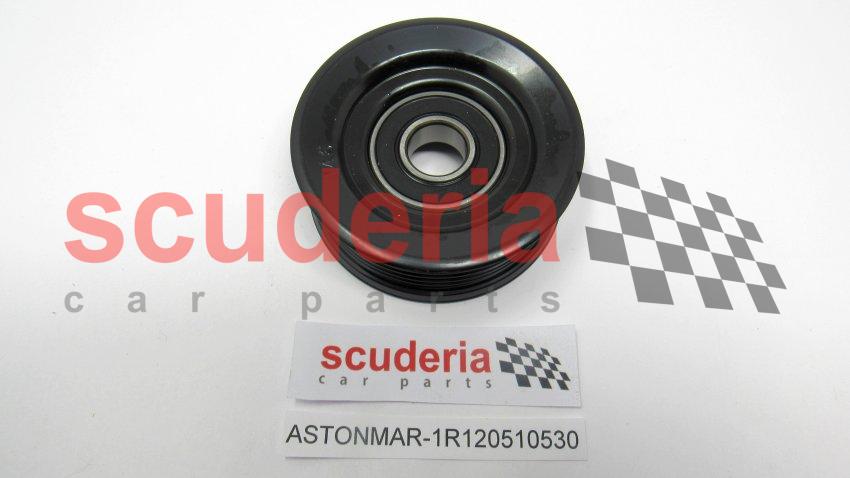

150	1R120510530	Idler Pulley Grooved	1R120510530 Idler Pulley Grooved	-	1	Enquire
160	HY5319A501AA	PAG OIL SP-A2	HY5319A501AA PAG OIL SP-A2 250ml	-	A/R	Enquire

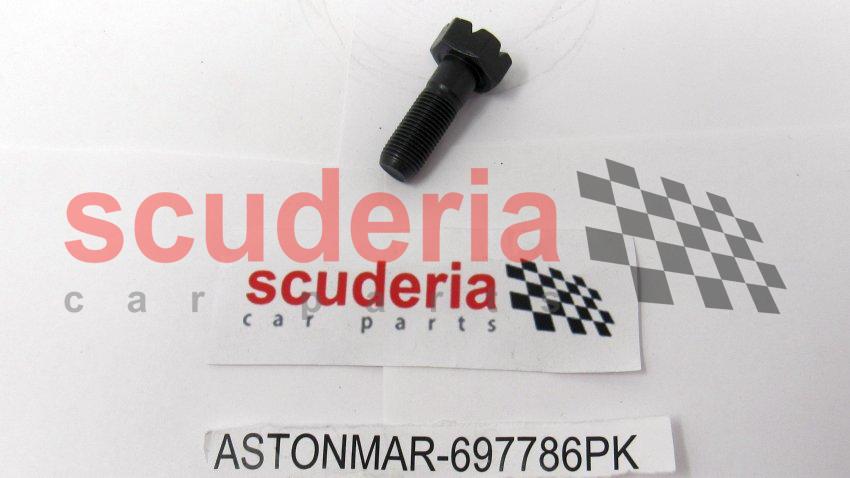

200	697786PK	Bolt-M10 x 1 x 30 HEX HD Locking Pack of 5	697786PK Bolt-M10 x 1 x 30 HEX HD Locking Pack of 5 -> VIN R01686/T02734.ALWAYS REPLACE. DO NOTRE-USE. Pack of 5	-	8	Enquire
201	LY63611B74AC	BOLT-M10x1.00x28.5	LY63611B74AC BOLT-M10x1.00x28.5 VIN R01687/T02735->.ALWAYS REPLACE. DO NOTRE-USE	-	8	Enquire
210	FD33405073AA	AUTO FLYWHEEL ASY	FD33405073AA AUTO FLYWHEEL ASY	-	1	Enquire
220	700036S447	Bolt, M8 x 1.25 x 25, Hex Flg Hd	700036S447 Bolt, M8 x 1.25 x 25, Hex Flg Hd ALWAYS REPLACE. DO NOTRE-USE	-	6	Enquire
230	HY5311000CB	STARTER MOTOR	HY5311000CB STARTER MOTOR -> VIN R01861	-	1	Enquire
231	HY5311000CC	STARTER MOTOR	HY5311000CC STARTER MOTOR VIN R01862->	-	1	Enquire
240	1R120210061	Bearing Assembly Pilot ARRIVING SOON	1R120210061 Bearing Assembly Pilot ARRIVING SOON	-	1	Enquire
250	HY536W366AC	DRIVELINE COUPLING	HY536W366AC DRIVELINE COUPLING Remove Transit Bolt onInstallation	-	1	Enquire
260	11AA108CP	BOLLHOFF RIVNUT M6 1.50 - 3.00 2330-706	11AA108CP BOLLHOFF RIVNUT M6 1.50 - 3.00 2330-706	$2.92	1
270	703192	SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE	703192 SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE	-	2	Enquire
