Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Cooling System

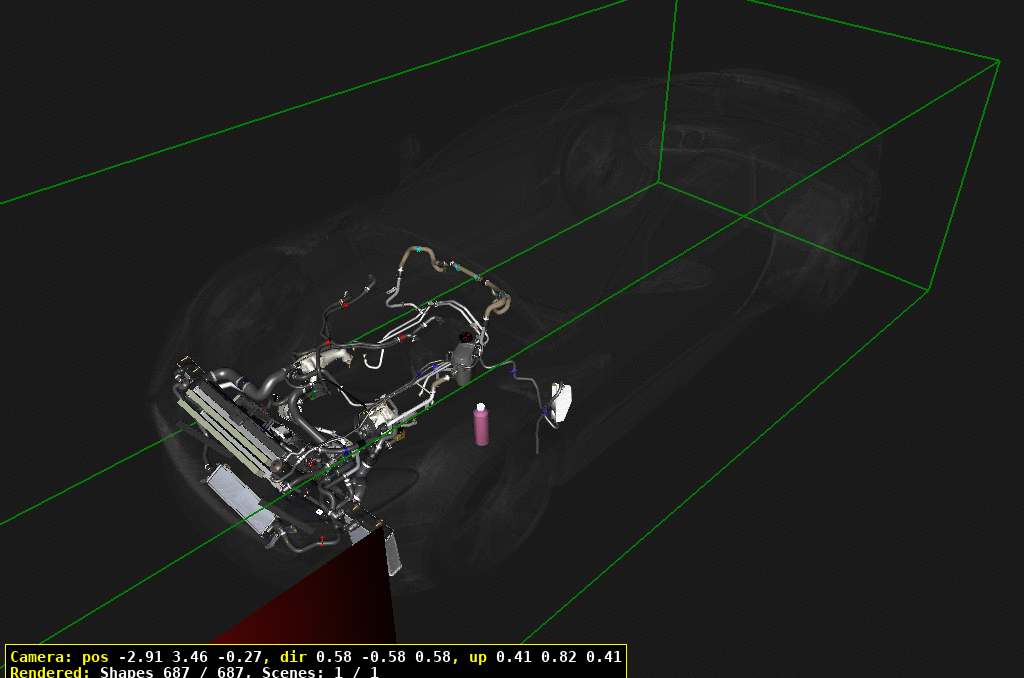

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
10	HY5361520AA	CTRL CL MOD HX ASSY	HY5361520AA CTRL CL MOD HX ASSY Includes items 570 & 870	-	1	Enquire
20	JY53322666AAPK	COOLANT-(1.5 LTR)-10	JY53322666AAPK COOLANT-(1.5 LTR)-10 1 Litre, Pack of 10	-	A/R	Enquire
30	KY738D048AB	CNTR RAD ASY AUX	KY738D048AB CNTR RAD ASY AUX Centre	-	1	Enquire
50	KY738084AA	BRKT RAD MTNG LH AUX	KY738084AA BRKT RAD MTNG LH AUX LH	-	1	Enquire
60	KY738083AA	BRKT RAD MTNG RH AUX	KY738083AA BRKT RAD MTNG RH AUX RH	-	1	Enquire
70	HY538C363AA	CNTR HX DGS HOS ASY	HY538C363AA CNTR HX DGS HOS ASY Radiator	-	1	Enquire
80	HY538063AB	BS ENG DGS HOS ASY	HY538063AB BS ENG DGS HOS ASY Engine Harness	-	4	Enquire
90	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) Pack of 10	-	2	Enquire
100	KY7361J31AA	BOTTOM HOSE ASSY	KY7361J31AA BOTTOM HOSE ASSY Engine to Radiator	-	1	Enquire
110	6G33TBD2BA	Reservoir, Coolant Expansion	6G33TBD2BA Reservoir, Coolant Expansion	-	1	Enquire
120	HY538N029AA	OVERFLOW HOSE	HY538N029AA OVERFLOW HOSE	-	1	Enquire
130	HY538B081AA	HOSE SUPPLY TANK	HY538B081AA HOSE SUPPLY TANK	-	1	Enquire
140	HY5319B518AD	COOLANT RESERVOIR	HY5319B518AD COOLANT RESERVOIR Includes item 150	-	1	Enquire
150	HY538101AA	PRSR CAP ASY 180KPA	HY538101AA PRSR CAP ASY 180KPA	-	1	Enquire
170	HY538556AC	BYPASS HOSE ASSY	HY538556AC BYPASS HOSE ASSY	-	1	Enquire
190	KY738D050AB	AUX OTLT HOS ASY RH	KY738D050AB AUX OTLT HOS ASY RH	-	1	Enquire
200	HY538C350AC	DEGAS M/UP HOS ASY	HY538C350AC DEGAS M/UP HOS ASY	-	1	Enquire
210	HY53482907AA	C-CLIP D8MM	HY53482907AA C-CLIP D8MM	-	2	Enquire
220	KY738333AA	TOP HOSE ASSY	KY738333AA TOP HOSE ASSY	-	1	Enquire
230	HY5318D506AA	AUX HX ASY RH HTS	HY5318D506AA AUX HX ASY RH HTS	-	1	Enquire
240	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	3	Enquire
250	HY536C681AA	ISOLATOR CONTROL COOLER MODULE	HY536C681AA ISOLATOR CONTROL COOLER MODULE Cooling Pack	-	4	Enquire
260	HY5318C553AA	HOS TUB ASY HTR	HY5318C553AA HOS TUB ASY HTR Heater Inlet	-	1	Enquire
270	HY536B850AC	HOS ASY ENG OIL OTLT	HY536B850AC HOS ASY ENG OIL OTLT Includes item 275	-	1	Enquire
275	HY53SE9E936BA	O RING	HY53SE9E936BA O RING	-	1	Enquire
280	HY5318674AC	TUB HTR WTR OLET	HY5318674AC TUB HTR WTR OLET Heater Return	-	1	Enquire
290	HY5398659AB	TUB ASY CROSSOVER	HY5398659AB TUB ASY CROSSOVER To RH Turbocharger	-	1	Enquire
300	HY539U468AA	HOS ASY TRB INLT LH	HY539U468AA HOS ASY TRB INLT LH LH	-	1	Enquire
310	HY539U468BA	HOS ASY TRB INLT RH	HY539U468BA HOS ASY TRB INLT RH RH	-	1	Enquire
320	HY539U469AA	HOS ASY TRB OLET LH	HY539U469AA HOS ASY TRB OLET LH LH	-	1	Enquire
330	HY539U469BA	HOS ASY TRB OLET RH	HY539U469BA HOS ASY TRB OLET RH RH	-	1	Enquire
340	HY538A595AB	HOS ASY ENG THERMO C	HY538A595AB HOS ASY ENG THERMO C To Run On Coolant Pump	-	1	Enquire
350	702565	BOLT M6 X 16	702565 BOLT M6 X 16	-	2	Enquire
360	HY538A583AA	BRKT AUX COOL PMP	HY538A583AA BRKT AUX COOL PMP	-	1	Enquire
370	HY538B552AA	COOLANT RUN ON PUMP	HY538B552AA COOLANT RUN ON PUMP Auxiliary Run On Pump	-	1	Enquire
380	HY538A586AB	THERMOSTAT ASSEMBLY	HY538A586AB THERMOSTAT ASSEMBLY Includes items 390-470	-	1	Enquire
390	HY539YA90AA	STUDBOLT M6X40+M6X20	HY539YA90AA STUDBOLT M6X40+M6X20	-	1	Enquire
400	HY5312A648AA	SNS ASY COOL	HY5312A648AA SNS ASY COOL Coolant	-	1	Enquire
410	CD338575AA	Thermostat	CD338575AA Thermostat Bare	-	1	Enquire
430	HY5325081AA	CLIP TEMP SENS	HY5325081AA CLIP TEMP SENS	-	1	Enquire

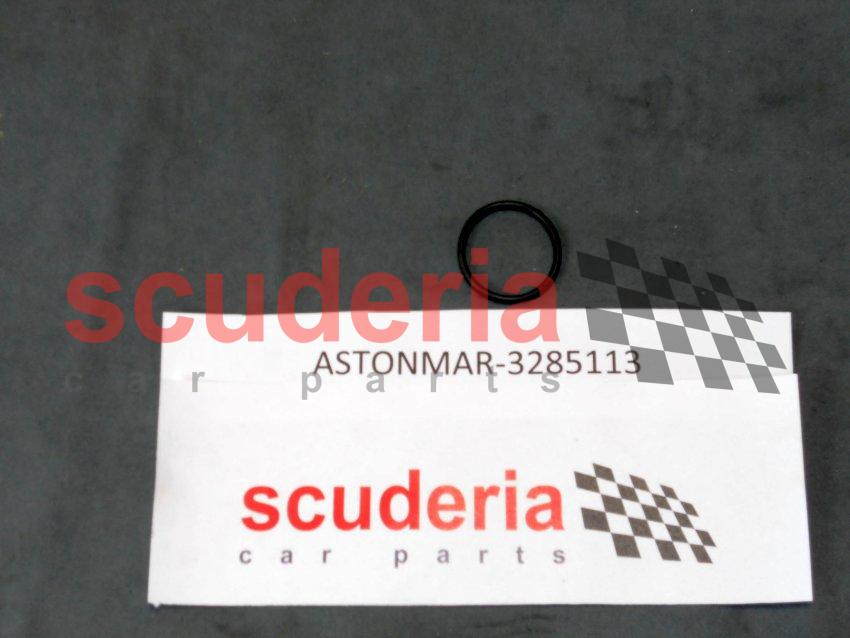

440	3285113	O RING SEAL ARRIVING SOON	3285113 O RING SEAL Thermostat to Engine ARRIVING SOON	-	1	Enquire

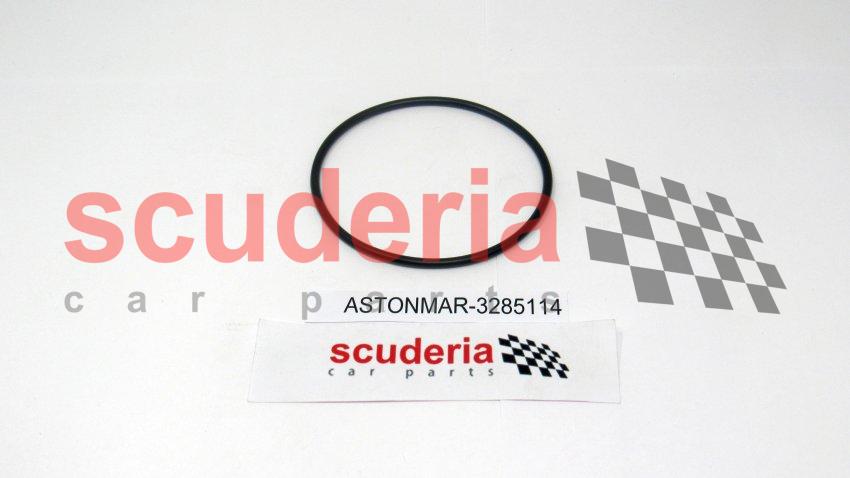

450	3285114	O Ring - Seal Housing	3285114 O Ring - Seal Housing	-	1	Enquire

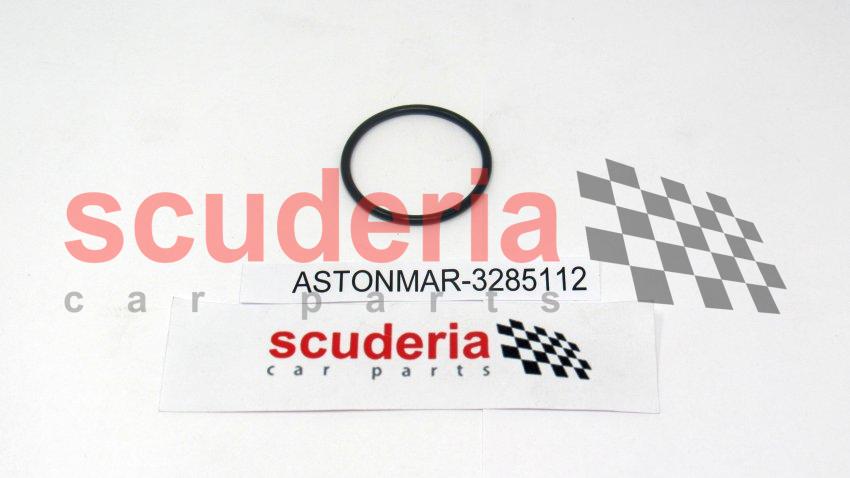

460	3285112	O Ring - Water Outlet	3285112 O Ring - Water Outlet Thermostat to Engine	-	1	Enquire
470	702525	BOLT M6 X 35 HEX	702525 BOLT M6 X 35 HEX	-	2	Enquire
480	HY538274AB	TUB ASY WTR PMP INLT	HY538274AB TUB ASY WTR PMP INLT Includes item 490	-	1	Enquire
490	HY539E936DA	O-RING 46X3	HY539E936DA O-RING 46X3 Pipe to Water Pump	-	1	Enquire
500	HY538K168AA	WATER PUMP	HY538K168AA WATER PUMP Complete	-	1	Enquire

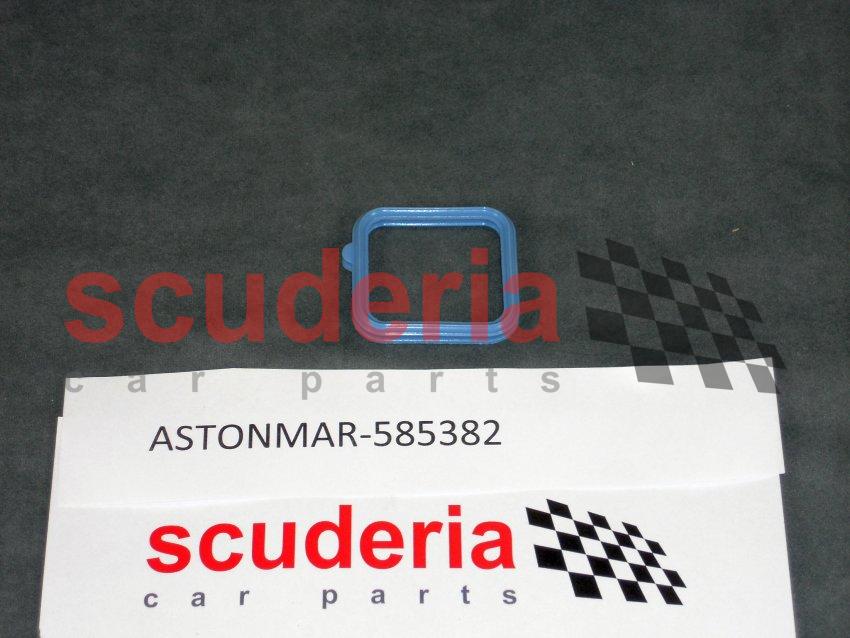

510	585382	Gasket, Water Pump	585382 Gasket, Water Pump To Engine	-	1	Enquire
520	702542	BOLT M6 x 20 HF PIL 8	702542 BOLT M6 x 20 HF PIL 8	-	3	Enquire
530	HY536N867AD	PIPE OIL COOLER FEED	HY536N867AD PIPE OIL COOLER FEED Includes items 535	-	1	Enquire
535	HY53SE9E936AA	O RING	HY53SE9E936AA O RING	-	2	Enquire
540	HY53116632AA	CLIP-SPRING	HY53116632AA CLIP-SPRING	-	1	Enquire
550	702855	BOLT &WASHER-M6x30 HEX FLG PIL	702855 BOLT &WASHER-M6x30 HEX FLG PIL	-	3	Enquire
560	702565	BOLT M6 X 16	702565 BOLT M6 X 16	-	3	Enquire
570	HY538005AA	CNTRL HX ASSY HTS	HY538005AA CNTRL HX ASSY HTS High Temperature System	-	1	Enquire
580	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
590	KY53W704533AA	HOSE RETENTION CLIP	KY53W704533AA HOSE RETENTION CLIP	-	1	Enquire
600	702573	BOLT M8 X 35	702573 BOLT M8 X 35	-	4	Enquire
610	HY53232046AA	COPPER WASHER M14	HY53232046AA COPPER WASHER M14 ALWAYS REPLACE. DO NOTRE-USE	-	4	Enquire
620	HY53100079AA	BANJO BOLT M14	HY53100079AA BANJO BOLT M14	-	4	Enquire
630	HY5361J05AA	CL MOD FOAM SL	HY5361J05AA CL MOD FOAM SL Cooling Pack	-	2	Enquire
640	KY7361J05AB	LH RAD SEAL	KY7361J05AB LH RAD SEAL LHD, Cooling Pack	-	1	Enquire
641	KY7361J05BA	RH RAD SEAL	KY7361J05BA RH RAD SEAL RHD, Cooling Pack	-	1	Enquire
710	HY538N502AA	STRAP BRKT EPUMP	HY538N502AA STRAP BRKT EPUMP	-	2	Enquire
720	HY538B590AB	ELEC WATER PUMP	HY538B590AB ELEC WATER PUMP Auxiliary, Electric, RH	-	1	Enquire
740	HY538B591AB	ELEC WATER PUMP	HY538B591AB ELEC WATER PUMP Auxiliary, Electric, LH	-	1	Enquire
750	HY538N503AC	BASE BRKT EPUMP COMM	HY538N503AC BASE BRKT EPUMP COMM	-	2	Enquire
760	HY5318D603AA	AUXILIARY HEAT EXCHANGER LH	HY5318D603AA AUXILIARY HEAT EXCHANGER LH	-	1	Enquire
770	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	3	Enquire
780	HY5315167AA	CNTRL HX INLET HOSE	HY5315167AA CNTRL HX INLET HOSE	-	1	Enquire
790	KY739H298AA	WACAC OTLT HS ASY LH	KY739H298AA WACAC OTLT HS ASY LH	-	1	Enquire
800	HY538K276AA	DGS HOSE ASY DCS<S	HY538K276AA DGS HOSE ASY DCS<S	-	1	Enquire
810	HY539H299AA	WACAC INLT HS ASY RH	HY539H299AA WACAC INLT HS ASY RH	-	1	Enquire
820	KY738K101AA	AUX HX OLET H ASY LH	KY738K101AA AUX HX OLET H ASY LH Pump to LH Radiator	-	1	Enquire
830	HY5318K582AA	CNT HX OTLET HOS ASY	HY5318K582AA CNT HX OTLET HOS ASY Centre Radiator to RHPump	-	1	Enquire
840	HY539N491BA	PIPE ASSY WCAC RTN	HY539N491BA PIPE ASSY WCAC RTN	-	1	Enquire
850	13A4984CP	COVER - DOOR - GAS STRUT - RH	13A4984CP COVER - DOOR - GAS STRUT - RH See 03-12 Air Intake	-	1	Enquire
860	HY539N491AB	PIPE ASSY WCAC FD	HY539N491AB PIPE ASSY WCAC FD	-	1	Enquire
870	HY534190AA	CONTROL HEAT EXCHANGE LH	HY534190AA CONTROL HEAT EXCHANGE LH Low Temperature System	-	1	Enquire
880	HY53F8B170AA	SL CNTRL RUB CL MOD	HY53F8B170AA SL CNTRL RUB CL MOD Radiator Pack	-	2	Enquire
890	HY538N301AA	GOP RUB SL	HY538N301AA GOP RUB SL Ducting, 400mm	-	2	Enquire
900	KY53W704533AA	HOSE RETENTION CLIP	KY53W704533AA HOSE RETENTION CLIP	-	1	Enquire
910	HY538A588AC	BRKT ENG ECAC HOSE	HY538A588AC BRKT ENG ECAC HOSE	-	1	Enquire
1000	HY5318D359BB	HT OTLT HOS ASY RH	HY5318D359BB HT OTLT HOS ASY RH RHD	-	1	Enquire
1010	HY5318D334BA	HT INLT HOS ASY RH	HY5318D334BA HT INLT HOS ASY RH RHD	-	1	Enquire
1020	HY5318D359AB	HT OTLT HOS ASY LHD	HY5318D359AB HT OTLT HOS ASY LHD LHD	-	1	Enquire
1030	HY5318D334AC	HT INLT HOS ASY LH	HY5318D334AC HT INLT HOS ASY LH LHD	-	1	Enquire
1040	HY53359568AA	C CLIP D23MM	HY53359568AA C CLIP D23MM	-	4	Enquire
1100	HY538C607AB	CNTRL FAN MOD ASSY	HY538C607AB CNTRL FAN MOD ASSY Radiator Pack	-	1	Enquire
1110	HY53482907AA	C-CLIP D8MM	HY53482907AA C-CLIP D8MM 8mm	-	3	Enquire
1120	HY5390781AA	PATCH BOLT&WSHR	HY5390781AA PATCH BOLT&WSHR Patchlocked	-	2	Enquire
1130	KY53W704533AA	HOSE RETENTION CLIP	KY53W704533AA HOSE RETENTION CLIP	-	4	Enquire
