Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Handles and Lock Mechanisms

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

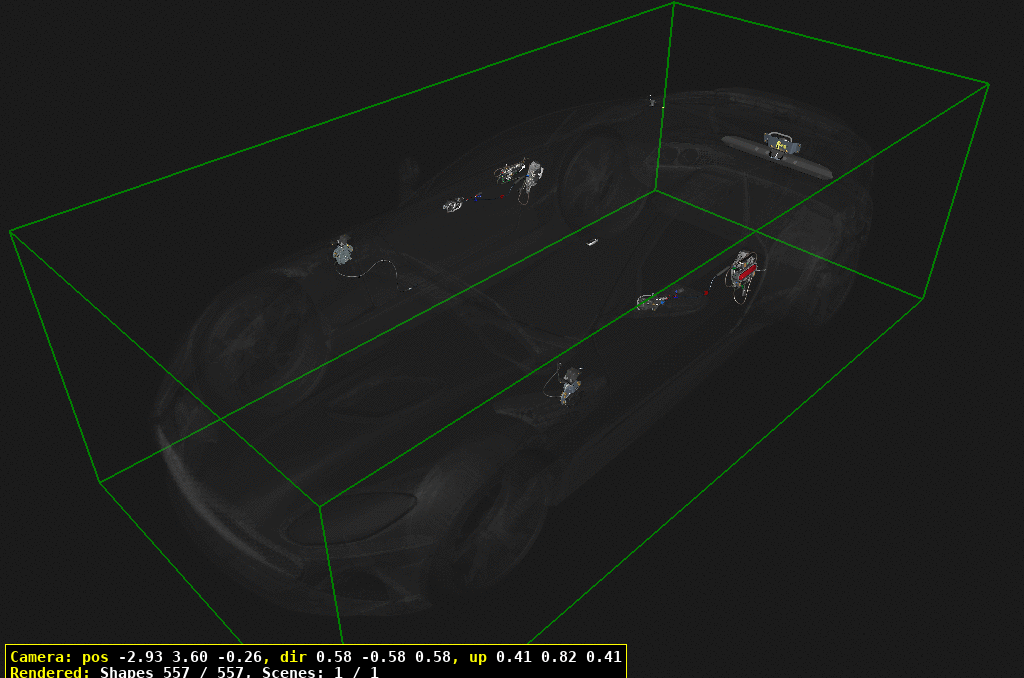

Handles and Lock Mechanisms of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
10 HY5316700AG
ASSY HOOD LATCH 		- 2 Enquire
20 HY5316K689AB
STRIKER BONNET LH 		- 1 Enquire
30 HY5316K688AA
STRIKER BONNET RH 		- 1 Enquire
40 703169
NUT - M6 HEX FLANGE CHROME FREE 		- 4 Enquire
60 HY5311748AA
BRKT BON LATCH REINF 		- 2 Enquire
70 700610
SCREW M8x25 FLAT CSK PIL 10.9 		- 10 Enquire
80 703163
Nut, M6, Hex Flange Head, Locking 		- 6 Enquire
100 HY53F22050AF
LOCKSET
Includes Item 111 		- 1 Enquire
110 HY53654024AC
EMR KEY BLADE
-> 22MY 		- 1 Enquire
111 MY83654024AB
EMR KEY BLADE
22MY-> 		- 1 Enquire
120 JY53226A14BA
BZL INT HNDL
Satin Silver 		- 2 Enquire
121 JY53226A14CA
BZL INT HNDL
Dark Chrome 		- 2 Enquire
130 HY5322615AH
HND MCH DR IN FRT LH
Satin Silver 		- 1 Enquire
131 HY5322615BH
HND MC DR FRT INT
Dark Chrome 		- 1 Enquire
140 HY5322614AH
HND MCH DR IN FRT RH
Satin Silver 		- 1 Enquire
141 HY5322614BH
HND MC DR IN FRT DK
Dark Chrome 		- 1 Enquire
150 HY5321813AD
LATCH ASSY FRT DOOR
Includes Item 170 		- 1 Enquire
160 HY5321812AD
LATCH ASSY FRT DOOR
Includes Item 170 		- 1 Enquire
170 HY53F218A01AB
CABLE INT HNDL REL 		- 2 Enquire
180 703149
SCREW M6x16 PAN FLG TORX CHROME FRE 		- 6 Enquire
190 HY5321982AB
STRIKER DOOR 		- 2 Enquire
200 HY53226A29AE
HNDLE DR EXT FRT LH 		- 1 Enquire
210 HY53226A28AF
HNDLE DR EXT FRT RH 		- 1 Enquire
220 SY9Y9142DA
HTS BRKT 		- 2 Enquire
221 CD3322405AC
Handle Blade Assy, LH
Carbon 		- 1 Enquire
222 CD3322404AC
Handle Blade Assy, RH
Carbon 		- 1 Enquire
230 4G43224A68AA
Pivot Pin, Outside Handle 		- 2 Enquire
240 4G43224A72AH
DUMMY LIGHT LENS 		- 2 Enquire
250 703612
Nut & Washer, M6, HVAC to XCB 		- 6 Enquire
260 6G3351756AAPK
Screw M5 x 13 Pan Head Pack (10)
Pack of 10. Standard Trim 		- 6 Enquire
280 HY53A17N409AA
NUT M5 THUMB 		- 6 Enquire
290 GG43AA0231AA
SCW M8X34 CSK FLAT 		- 4 Enquire
300 707004
BOLT & WSHR M6x16 HX 		- 2 Enquire
310 22AA797GP
ASSY BRKT RR FENDER FRT RH
See Section 191200-20 		- - Enquire
320 704443
Clip, Plastic, 5 x 6.5 x 2 		- 2 Enquire
330 6G33239600AA
CLIP CABLE 5.2 SEALD 		- 2 Enquire
340 HY53F16346AA
DOOR STRIKER SHIM
1mm. 		- A/R Enquire
410 707624
BOLT-M8 x 14 		- 5 Enquire
430 6G436710237
Handle, Emergency Release, Deck Lid Latch 		- 1 Enquire
440 700610
SCREW M8x25 FLAT CSK PIL 10.9 		- 1 Enquire
450 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 4 Enquire
460 HY53F442A66AF
POWER LATCH 		- 1 Enquire
480 HY5311028AA
22MM BLK DMD BDY PG 		- 6 Enquire
490 HY5342626BD
EXT RR STRIKER BLACK
Coupe, Black 		- 1 Enquire
491 KY5342626BA
EXT RR STRIKER BLACK
Volante, Black 		- 1 Enquire
500 6G436710235
Striker, Deck Lid Latch 		- 1 Enquire
510 KY7344462AB
DCKLD LTCH MTG BRKT 		- 1 Enquire
520 703265
Screw, M6 x 16, Hex Flange Head 		- 4 Enquire
530 707624
BOLT-M8 x 14 		- 3 Enquire
700 HY539N287AB
FU FIL LPP TAPPET
ARRIVING SOON 		- 1 Enquire
710 HY539E917AB
FUEL FILLER MECH
ARRIVING SOON 		- 1 Enquire
720 HY5370312AA
FU FIL EMER REL 		- 1 Enquire
