Glass And Regulators - Volante

Aston Martin GT DBS SUPERLEGGERA (2019-2023)

Find Your Part

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Glass and Regulators - Volante

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

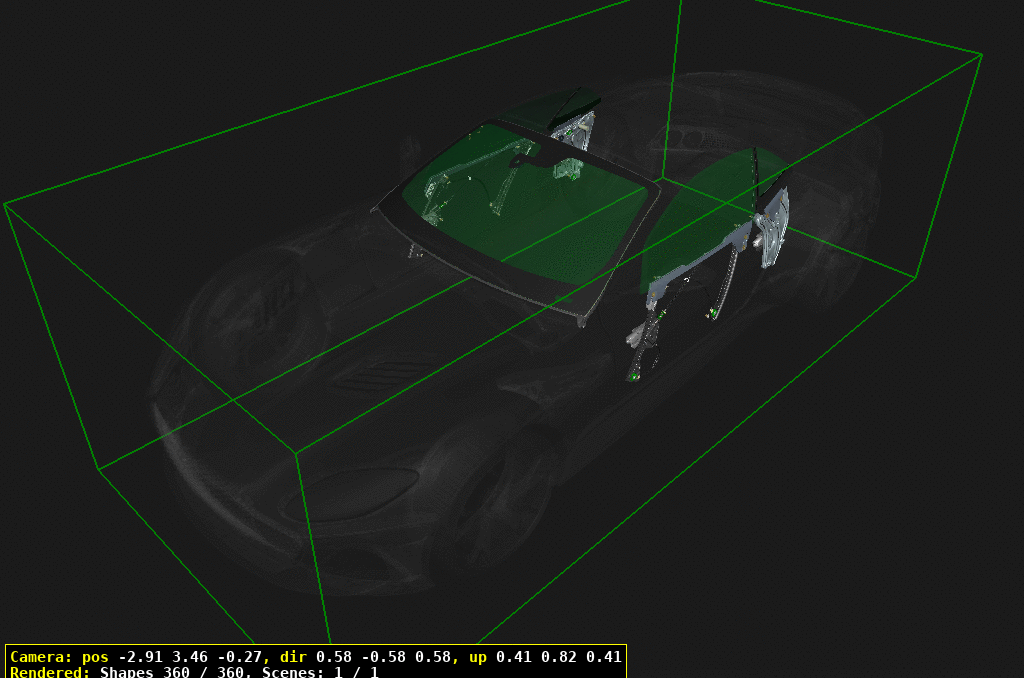

Glass and Regulators - Volante of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 22AB201GP
ASSY PNL RR FENDER SUPPORT UPR LH 		- - Enquire
20 KY53L03804BB
FRT W/SCREEN-LHD
LHD, Less Weatherstrips 		- 1 Enquire
21 KY53L03804AB
FRT W/SCREEN-RHD
RHD, Less Weatherstrips 		- 1 Enquire
30 KY53L03296AB
W/STRIPS FRT GLASS
Does not include item 60.Order separately 		- 1 Enquire
40 4G4303836ABPK
Bumpon Black GTI (Pack of 10)
Pack of 10 		- 3 Enquire
50 HY53030A44AA
W/STRP EXT FR W/SHLD 		- 1 Enquire
60 6G33C03102AP1A04
Foam Strip Front WindShield - V8 Coupe 		- 1 Enquire
100 KY53L21411AC
GLASS ASSY FRT DR LH 		- 1 Enquire
110 KY53L21410AC
GLASS ASSY FRT DR RH 		- 1 Enquire
150 KY53L29751AB
RR QTR DROP GLASS LH 		- 1 Enquire
160 KY53L29750AB
RR QTR DROP GLASS RH 		- 1 Enquire
200 HY53F23201AF
FRT WDW REG ASY LH 		- 1 Enquire
210 HY53F23200AF
FRONT WINDOW REGULATOR RH 		- 1 Enquire
220 703216PK
NUT M8 HEXAGON FLANGED (PACK OF 10)
Pack of 10 		- 10 Enquire
300 KY53F27001AC
RR QTR REGUL LH 		- 1 Enquire
310 KY53F27000AC
RR QTR REGUL RH 		- 1 Enquire
320 KY5373198AA
FOAM PLUG 		- 2 Enquire
330 KY53E890456AA
RUBBER GROMMET 		- 2 Enquire
340 703216PK
NUT M8 HEXAGON FLANGED (PACK OF 10)
Pack of 10 		- 6 Enquire
