Body Structure - Volante of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023)

View All

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Body Structure - Volante

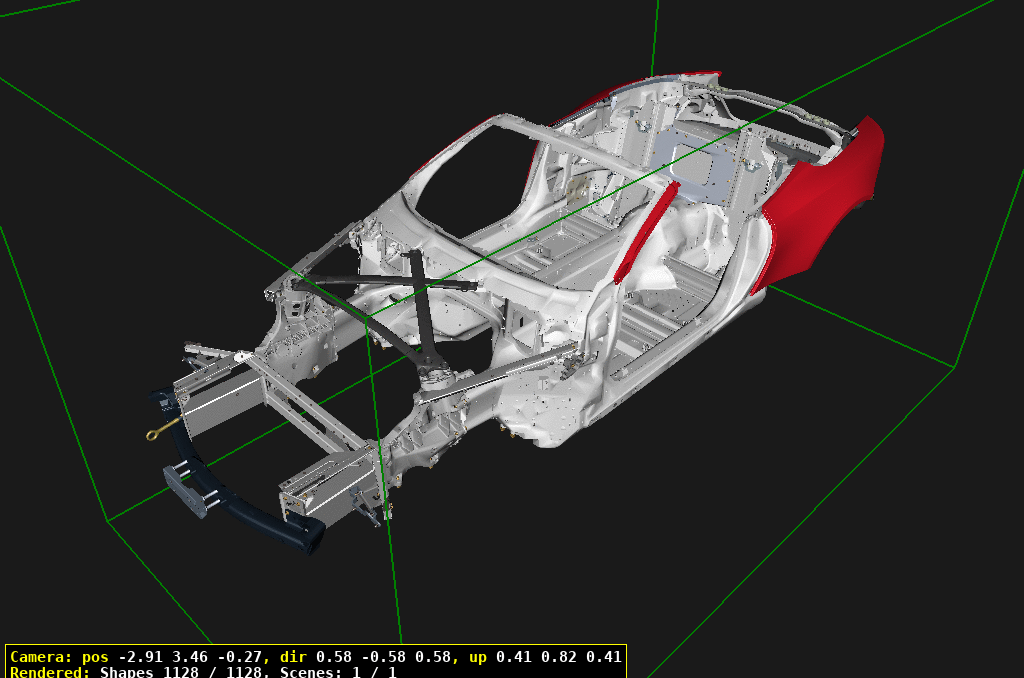

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
10	LY736310023	B/SHELL-DBS SUPR-VOL	LY736310023 B/SHELL-DBS SUPR-VOL Cat A. Less Bonnet,Doors, Boot Lid, CrashStructure & Front Wings	-	1	Enquire
20	HY53N103218AB	M12X45 W/PILOT	HY53N103218AB M12X45 W/PILOT Grade 10.9	-	10	Enquire
30	HY53N103218AB	M12X45 W/PILOT	HY53N103218AB M12X45 W/PILOT Grade 10.9	-	6	Enquire
40	LY73L101A70AA	CR MBR FRT UPR CONV	LY73L101A70AA CR MBR FRT UPR CONV Cat A	-	1	Enquire
50	703120	Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	703120 Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	-	8	Enquire
60	HY53V17N801AE	FRT CRSH CAN LH	HY53V17N801AE FRT CRSH CAN LH	-	1	Enquire
70	HY53V17N800AE	FRT CRUSH CAN RH	HY53V17N800AE FRT CRUSH CAN RH	-	1	Enquire
80	704440	Screw, M10 x 35	704440 Screw, M10 x 35	-	8	Enquire
90	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE IN STOCK	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE IN STOCK	-	4	Enquire
100	HY5316B859AA	BRKT HD HGE MNTG LW	HY5316B859AA BRKT HD HGE MNTG LW Lower	-	1	Enquire
110	HY5316B858AA	BRKT HD HGE MNTG LW	HY5316B858AA BRKT HD HGE MNTG LW Lower	-	1	Enquire
120	HY5316A734AB	NUTPLT HD HNG MNT BD	HY5316A734AB NUTPLT HD HNG MNT BD	-	2	Enquire
130	HY536367912AB	NTPLT FRT CRSH CAN	HY536367912AB NTPLT FRT CRSH CAN	-	2	Enquire
140	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	4	Enquire
150	HY5316A681AG	BRKT HD HINGE MNT RH	HY5316A681AG BRKT HD HINGE MNT RH Upper	-	1	Enquire
160	HY5316A682AB	BRKT HD HINGE MNT LH	HY5316A682AB BRKT HD HINGE MNT LH Upper	-	1	Enquire
170	703120	Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	703120 Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	-	6	Enquire
180	HY53100A05AD	HSNG FRT SUS MNTG LH	HY53100A05AD HSNG FRT SUS MNTG LH Cat A	-	1	Enquire
190	HY53100A04AD	HSNG FRT SUS MNTG RH	HY53100A04AD HSNG FRT SUS MNTG RH Cat A	-	1	Enquire
200	HY53045J72AA	NITTO FOAM GASKET FR	HY53045J72AA NITTO FOAM GASKET FR	-	2	Enquire
210	HY53E802299AA	M12 SHOULDER BOLT	HY53E802299AA M12 SHOULDER BOLT	-	6	Enquire
220	HY5313B060AA	HEADLAMP ADJ BRKT	HY5313B060AA HEADLAMP ADJ BRKT Cat A	-	1	Enquire
230	HY5313B059AA	HEADLAMP ADJ BRKT	HY5313B059AA HEADLAMP ADJ BRKT Cat A	-	1	Enquire
240	703203	Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	703203 Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	-	4	Enquire
250	KY738D068AC	RAD ADAPTER BRKT	KY738D068AC RAD ADAPTER BRKT	-	1	Enquire
260	KY738D067AC	RAD ADAPTER BRKT	KY738D067AC RAD ADAPTER BRKT	-	1	Enquire
270	703585	Screw, M8 x 25, Torx Drive	703585 Screw, M8 x 25, Torx Drive	-	4	Enquire
300	LY73L27847AB	PNL BDYSD LH	LY73L27847AB PNL BDYSD LH Cat A	-	1	Enquire
310	LY73L27846AB	PNL BDYSD RH	LY73L27846AB PNL BDYSD RH Cat A	-	1	Enquire
330	4G43023A50BBPK	External Fender Clip (Pack of 5)	4G43023A50BBPK External Fender Clip (Pack of 5) Pack of 5	-	2	Enquire
340	KY53L02623AC	PNL CTRL CR LH CONV	KY53L02623AC PNL CTRL CR LH CONV Cat A	-	1	Enquire
350	KY53L02622AC	PNL CTRL CR RH CONV	KY53L02622AC PNL CTRL CR RH CONV Cat A	-	1	Enquire
400	HY53108A75BA	ASY BRA ENG CMPT	HY53108A75BA ASY BRA ENG CMPT Black	-	1	Enquire
410	707497PK	BOLT-M10 x1.5x30(10	707497PK BOLT-M10 x1.5x30(10 Pack of 10. ALWAYSREPLACE. DO NOT REUSE	-	8	Enquire
460	KY53611B34AA	SPACER ST BLT PRT	KY53611B34AA SPACER ST BLT PRT	-	2	Enquire
470	HY53111C60AD	PANEL TOE BOARD RH	HY53111C60AD PANEL TOE BOARD RH	-	1	Enquire
480	HY53111C61AD	PANEL TOE BOARD LH	HY53111C61AD PANEL TOE BOARD LH	-	1	Enquire
490	703203	Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	703203 Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	-	16	Enquire
500	703161	Nut Hex M8 Flanged IN STOCK	703161 Nut Hex M8 Flanged IN STOCK	-	2	Enquire
510	KY53L111D38AB	RR BLKHD CLR PNL	KY53L111D38AB RR BLKHD CLR PNL	-	1	Enquire
520	703121	Screw, M8 x 25, Hex Flange Head IN STOCK	703121 Screw, M8 x 25, Hex Flange Head IN STOCK	-	10	Enquire
530	HY5316184AG	BR ENG COMPST SD RH	HY5316184AG BR ENG COMPST SD RH -> 23MY	-	1	Enquire
531	HY5316184CA	BR ENG COMPST SD RH	HY5316184CA BR ENG COMPST SD RH 23.5MY->, Black	-	1	Enquire
540	HY5316185AG	BR ENG COMPST SD LH	HY5316185AG BR ENG COMPST SD LH -> 23MY	-	1	Enquire
541	HY5316185CA	BR ENG COMPST SD LH	HY5316185CA BR ENG COMPST SD LH 23.5MY->, Black	-	1	Enquire
550	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	10	Enquire
560	HY53110023AC	BRACE TUNNEL CENTRE	HY53110023AC BRACE TUNNEL CENTRE	-	1	Enquire
570	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	16	Enquire
580	HY535341AD	BRKT HD LTCH MNTG LH	HY535341AD BRKT HD LTCH MNTG LH	-	1	Enquire
590	HY535340AD	BRKT HD LTCH MNTG RH	HY535340AD BRKT HD LTCH MNTG RH	-	1	Enquire
600	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE IN STOCK	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE IN STOCK	-	6	Enquire
610	703121	Screw, M8 x 25, Hex Flange Head IN STOCK	703121 Screw, M8 x 25, Hex Flange Head IN STOCK	-	12	Enquire
620	KY53L114B10AC	REINF ISO TTHR MNTG	KY53L114B10AC REINF ISO TTHR MNTG	-	2	Enquire
630	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head IN STOCK	-	10	Enquire
640	KY53L28143AB	PNL B PLR CVR LH	KY53L28143AB PNL B PLR CVR LH Cat A	-	1	Enquire
650	KY53L28142AB	PNL B PLR CVR RH	KY53L28142AB PNL B PLR CVR RH Cat A	-	1	Enquire
660	703121	Screw, M8 x 25, Hex Flange Head IN STOCK	703121 Screw, M8 x 25, Hex Flange Head IN STOCK	-	16	Enquire
670	HY538741AB	CLSR SERV CHNL	HY538741AB CLSR SERV CHNL	-	2	Enquire
690	705355	Bolt, M10 x 25 IN STOCK	705355 Bolt, M10 x 25 IN STOCK	-	2	Enquire
700	KY53L41037AC	PNL RR QTR INFLL LH	KY53L41037AC PNL RR QTR INFLL LH Cat A	-	1	Enquire
710	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD	-	6	Enquire
720	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5) IN STOCK	1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5) Pack of 5 IN STOCK	-	6	Enquire
730	RY63C043C90LC	IP UPR BRW PASS CRBN	RY63C043C90LC IP UPR BRW PASS CRBN	-	1	Enquire
740	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	20	Enquire
750	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head IN STOCK	-	1	Enquire
760	KY53L41036AC	PNL RR QTR INFLL RH	KY53L41036AC PNL RR QTR INFLL RH Cat A	-	1	Enquire
770	KY53L279A55AC	PNL QTR WHLHS CLR LH	KY53L279A55AC PNL QTR WHLHS CLR LH	-	1	Enquire
780	KY53L279A54AC	PNL QTR WHLHS CLR RH	KY53L279A54AC PNL QTR WHLHS CLR RH	-	1	Enquire
790	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD	-	6	Enquire
800	KY53L21763AB	BRKT ROOF MECH SUPTL	KY53L21763AB BRKT ROOF MECH SUPTL	-	1	Enquire
810	KY53L21762AB	BRKT ROOF MECH SUPTR	KY53L21762AB BRKT ROOF MECH SUPTR	-	1	Enquire
820	702944	Nut, M6, Hex Flanged Head IN STOCK	702944 Nut, M6, Hex Flanged Head IN STOCK	-	4	Enquire
830	KY53L501A33AA	TONN BSTP BRKT OTR	KY53L501A33AA TONN BSTP BRKT OTR	-	2	Enquire
840	702944	Nut, M6, Hex Flanged Head IN STOCK	702944 Nut, M6, Hex Flanged Head IN STOCK	-	8	Enquire
850	4G4316K808AB	Bumper Hood to Cowl Top IN STOCK	4G4316K808AB Bumper Hood to Cowl Top IN STOCK	-	4	Enquire
860	KY53L501A32AA	TONN BSTP BRKT INR	KY53L501A32AA TONN BSTP BRKT INR	-	1	Enquire
870	703203	Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	703203 Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	-	4	Enquire
880	KY53L21760AA	CFLP BSTP BRKT CONV	KY53L21760AA CFLP BSTP BRKT CONV	-	1	Enquire
890	703203	Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	703203 Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	-	2	Enquire
900	KY53L5A367AA	CLSR RR SBFRM MNT LH	KY53L5A367AA CLSR RR SBFRM MNT LH	-	1	Enquire
910	KY53L5A366AA	CLSR RR SBFRM MNT RH	KY53L5A366AA CLSR RR SBFRM MNT RH	-	1	Enquire
920	703026	Screw, M5 x 16, Hex Flange Head IN STOCK	703026 Screw, M5 x 16, Hex Flange Head -> June 2019 IN STOCK	-	8	Enquire
921	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10) IN STOCK	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) June 2019->, Pack of 10 IN STOCK	-	8	Enquire
1000	HY5347124AF	PANEL TRUNK FLOOR	HY5347124AF PANEL TRUNK FLOOR -> 21MY, Cat A	-	1	Enquire
1001	HY5347124AG	PANEL TRUNK FLOOR	HY5347124AG PANEL TRUNK FLOOR 22MY->, Cat A	-	1	Enquire
1010	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	4	Enquire
1020	6G33L80840AD	Drain Plug, Rear Quarter	6G33L80840AD Drain Plug, Rear Quarter	-	2	Enquire
1030	KY53L10515AE	PNL TRUNK CLSR LH	KY53L10515AE PNL TRUNK CLSR LH Cat A	-	1	Enquire
1031	KY53L10514AE	PNL TRUNK CLSR RH	KY53L10514AE PNL TRUNK CLSR RH Cat A	-	1	Enquire
1040	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	6	Enquire
1050	LY73L41039AA	PNL RR QTR INR LH	LY73L41039AA PNL RR QTR INR LH Cat A	-	1	Enquire
1060	LY73L41038AA	PNL RR QTR INR RH	LY73L41038AA PNL RR QTR INR RH Cat A. -> VIN T01599	-	1	Enquire
1061	LY73L41038AB	PNL RR QTR INR RH	LY73L41038AB PNL RR QTR INR RH Cat A. VIN T01600->	-	1	Enquire
1070	SY9Y14025BB	FRT DR TR LINK RHS P	SY9Y14025BB FRT DR TR LINK RHS P -> VIN T03073. Due to achange in the drain hose,the later drain plug maybe required.	-	1	Enquire
1071	MY63205196AA	TLS DRAIN PLUG	MY63205196AA TLS DRAIN PLUG VIN T03074->	-	1	Enquire
1080	LY73L44408AC	TRUNK LID SURRND PNL	LY73L44408AC TRUNK LID SURRND PNL Cat A	-	1	Enquire
1090	KY5342853AA	HINGE SPACER	KY5342853AA HINGE SPACER	-	6	Enquire
1091	KY5342853BA	HINGE SPACER	KY5342853BA HINGE SPACER	-	6	Enquire
1092	KY5342853CA	HINGE SPACER	KY5342853CA HINGE SPACER	-	6	Enquire
1130	6485690	BALL STUD-GAS STRUT	6485690 BALL STUD-GAS STRUT	-	2	Enquire
1150	CD3343422BA	M8X21 BLK WASHER	CD3343422BA M8X21 BLK WASHER	-	2	Enquire
1160	6G43F78410AA	Sealing Pad, Al Butyl, 35 x 35 IN STOCK	6G43F78410AA Sealing Pad, Al Butyl, 35 x 35 IN STOCK	-	4	Enquire
1220	HY5317F035AF	ASSY CRSH/CAN RR LH	HY5317F035AF ASSY CRSH/CAN RR LH	-	1	Enquire
1230	HY5317F034AF	ASY CRSH/CN RR RH	HY5317F034AF ASY CRSH/CN RR RH	-	1	Enquire
1240	HY535F046AB	NTPLT M8 CRSHCN INR	HY535F046AB NTPLT M8 CRSHCN INR	-	2	Enquire
1250	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	4	Enquire
1260	703120	Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	703120 Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	-	8	Enquire
1270	KY539348AA	SEALING FOAM RG WSHR	KY539348AA SEALING FOAM RG WSHR	-	6	Enquire
1300	HY5317B804BA	RECOVERY EYE IN STOCK	HY5317B804BA RECOVERY EYE IN STOCK	-	1	Enquire
1310	KY7317F033AD	ARM FRT BUMPER ROW	KY7317F033AD ARM FRT BUMPER ROW RoW	-	1	Enquire
1320	KY7317F033CE	ARM FRONT BMPR CHINA	KY7317F033CE ARM FRONT BMPR CHINA China, GCC, South Korea	-	1	Enquire
1330	KY7317F033BF	ARM FRONT BUMPER FED	KY7317F033BF ARM FRONT BUMPER FED Federal	-	1	Enquire
1340	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE IN STOCK	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE IN STOCK	-	6	Enquire
1350	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	2	Enquire
1360	HY5316E146CA	BOLSTER STUD FED	HY5316E146CA BOLSTER STUD FED Federal	-	4	Enquire
1370	703203	Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	703203 Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	-	4	Enquire
1380	KY7316E170BB	STRT FRNT END BLSTR	KY7316E170BB STRT FRNT END BLSTR Structural	-	1	Enquire
1500	HY5317758AG	ARM RR BUMPER ROW	HY5317758AG ARM RR BUMPER ROW RoW	-	1	Enquire
1510	KY7317758CD	ARM REAR BUMPR CHINA	KY7317758CD ARM REAR BUMPR CHINA China, GCC, South Korea	-	1	Enquire
1520	KY7317758BE	ARM RR BUMPER FED	KY7317758BE ARM RR BUMPER FED Federal	-	1	Enquire
1530	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	6	Enquire
1540	703121	Screw, M8 x 25, Hex Flange Head IN STOCK	703121 Screw, M8 x 25, Hex Flange Head IN STOCK	-	2	Enquire
