Front End of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023)

View All

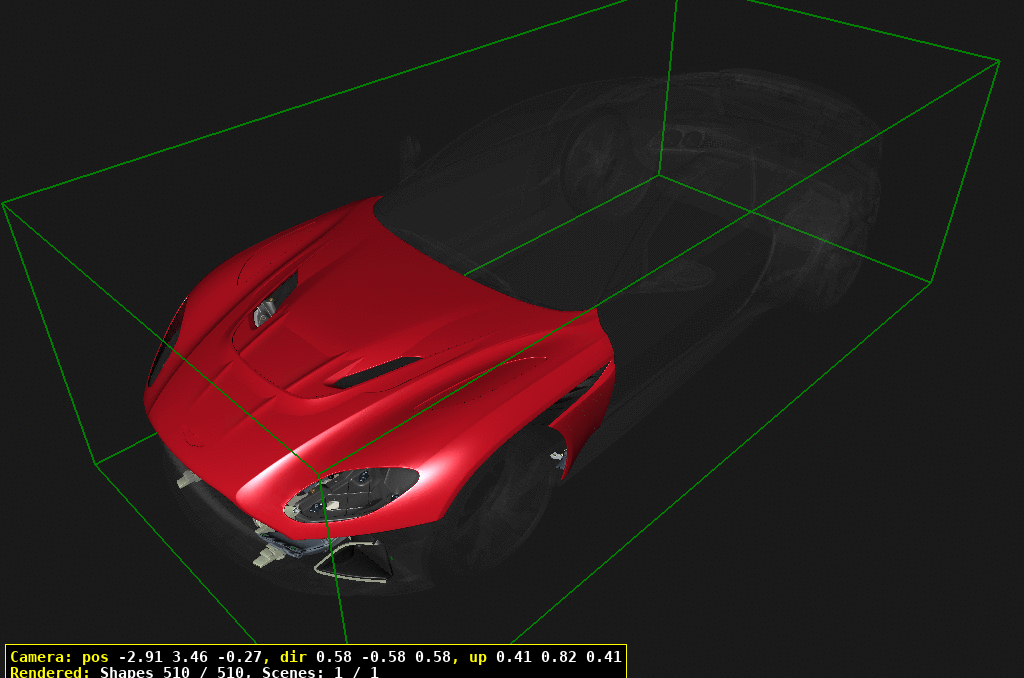

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Front End

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	KY738B413AB	GOP SIDE LH	KY738B413AB GOP SIDE LH	-	1	Enquire
30	KY738B412AC	GOP SIDE RH	KY738B412AC GOP SIDE RH	-	1	Enquire
40	KY738C465AB	AUX RAD DUCT RR LH	KY738C465AB AUX RAD DUCT RR LH	-	1	Enquire
50	KY738C464AB	AUX RAD DUCT RR RH	KY738C464AB AUX RAD DUCT RR RH	-	1	Enquire
60	KY73018C21AB	BRAKE DCT FRT LH	KY73018C21AB BRAKE DCT FRT LH	-	1	Enquire
70	KY73018C20AB	BRAKE DCT FRT RH	KY73018C20AB BRAKE DCT FRT RH	-	1	Enquire
80	KY73018C23AA	BRAKE DUCT REAR LH	KY73018C23AA BRAKE DUCT REAR LH	-	1	Enquire
90	KY73018C22AB	BRAKE DUCT REAR RH	KY73018C22AB BRAKE DUCT REAR RH	-	1	Enquire
100	KY73502B71AA	BUMPER FOAM LH	KY73502B71AA BUMPER FOAM LH	-	1	Enquire
110	KY73502B70AA	BUMPER FOAM RH	KY73502B70AA BUMPER FOAM RH	-	1	Enquire

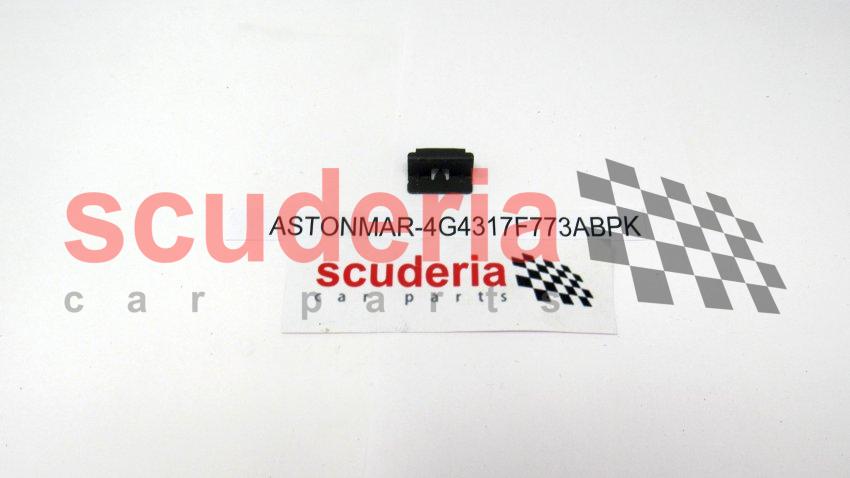

120	4G4317F773ABPK	Retainer Grille to Front Bumper (Pack of 10)	4G4317F773ABPK Retainer Grille to Front Bumper (Pack of 10) Pack of 10	-	8	Enquire
130	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	4	Enquire

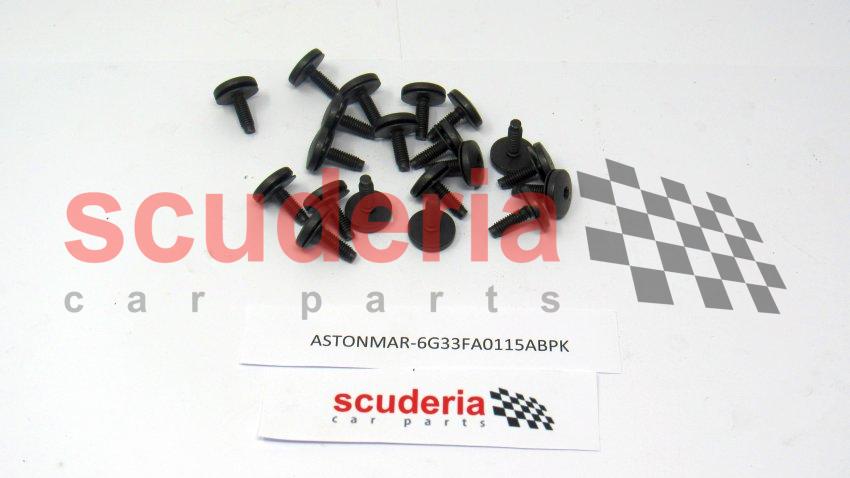

140	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	6	Enquire
200	HY538C252AC	ASSY RAD SUPPORT	HY538C252AC ASSY RAD SUPPORT	-	2	Enquire
210	HY5313181BA	BRKT HD/LP NUT PLT	HY5313181BA BRKT HD/LP NUT PLT	-	6	Enquire
220	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) Pack of 20	-	2	Enquire
230	HY538662AA	INTAKE FOAM LOWER	HY538662AA INTAKE FOAM LOWER	-	2	Enquire
240	HY5313069AE	PNL H/LAMP MNT LH	HY5313069AE PNL H/LAMP MNT LH Cat A	-	1	Enquire
250	KY7313068AA	PNL H/LMP MNT RH	KY7313068AA PNL H/LMP MNT RH Cat A	-	1	Enquire

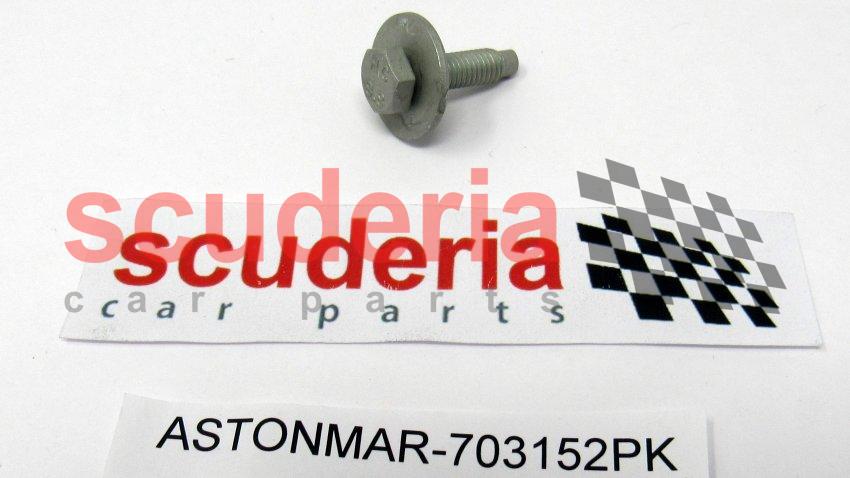

260	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) Pack of 10	-	10	Enquire
270	HY5356143AA	POP RIVET DOME HEAD	HY5356143AA POP RIVET DOME HEAD	-	12	Enquire
280	HY538052AF	RAD SUPT LWR	HY538052AF RAD SUPT LWR	-	1	Enquire
290	KY732943751AB	RAD SPT BEAM LOWER	KY732943751AB RAD SPT BEAM LOWER	-	1	Enquire
300	HY53F01991AC	PNL VEN AIR LH	HY53F01991AC PNL VEN AIR LH	-	1	Enquire
310	JY53F01990AC	PNL VEN AIR RH	JY53F01990AC PNL VEN AIR RH	-	1	Enquire
320	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	6	Enquire
330	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	6	Enquire
340	697452	Washer, M8 x 24 x 1.8, Black	697452 Washer, M8 x 24 x 1.8, Black	-	2	Enquire
350	HY538211AF	PNL RAD GRL CTR	HY538211AF PNL RAD GRL CTR	-	1	Enquire
360	KY738A145AA	INTKE FM LH OTBRD	KY738A145AA INTKE FM LH OTBRD	-	1	Enquire
370	KY738A144AA	INTKE FM RH OTBRD	KY738A144AA INTKE FM RH OTBRD	-	1	Enquire
380	KY738672AA	INTAKE FOAM CENTRE	KY738672AA INTAKE FOAM CENTRE	-	1	Enquire
390	KY738661AB	INTAKE FOAM LH UPPER	KY738661AB INTAKE FOAM LH UPPER	-	1	Enquire
400	KY738660AB	INTAKE FOAM RH UPPER	KY738660AB INTAKE FOAM RH UPPER	-	1	Enquire
410	KY737081AA	GRILLE FOAM OUT LH	KY737081AA GRILLE FOAM OUT LH	-	1	Enquire
420	KY737080AA	GRILLE FOAM OUT RH	KY737080AA GRILLE FOAM OUT RH	-	1	Enquire
430	KY738243AB	PANEL RAD GRILLE LH	KY738243AB PANEL RAD GRILLE LH	-	1	Enquire
440	KY738242AB	PANEL RAD GRILLE RH	KY738242AB PANEL RAD GRILLE RH	-	1	Enquire
450	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	10	Enquire
460	SY9Y018K28AB	DOOR BLADE RH	SY9Y018K28AB DOOR BLADE RH Pack of 20	-	6	Enquire
470	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
500	KY7316006AB	PNL ASY FRT FNDR LH	KY7316006AB PNL ASY FRT FNDR LH -> VIN R00931	-	1	Enquire
501	KY7316006AC	PNL ASY FRT FNDR LH	KY7316006AC PNL ASY FRT FNDR LH VIN R00932->	-	1	Enquire
510	KY7316005AB	PNL ASY FRT FNDR RH	KY7316005AB PNL ASY FRT FNDR RH -> VIN R00931	-	1	Enquire
511	KY7316005AC	PNL ASY FRT FNDR RH	KY7316005AC PNL ASY FRT FNDR RH VIN R00932->	-	1	Enquire
520	HY5316A006AD	BT FRT FND PLR MNT L	HY5316A006AD BT FRT FND PLR MNT L -> VIN R00536, Handed LH	-	2	Enquire
530	HY5316A005AD	BRKT FRT FND PLR MNT	HY5316A005AD BRKT FRT FND PLR MNT -> VIN R00536, Handed RH	-	2	Enquire
531	HY5316A005AE	BRKT FRT FND PLR MNT	HY5316A005AE BRKT FRT FND PLR MNT VIN R00537->, Universal	-	4	Enquire
540	703729	Screw, M6 x 16, Flange Hex Head	703729 Screw, M6 x 16, Flange Hex Head	-	10	Enquire
550	706890	BOLT & WSHR M6 x 24	706890 BOLT & WSHR M6 x 24	-	8	Enquire
560	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	6	Enquire

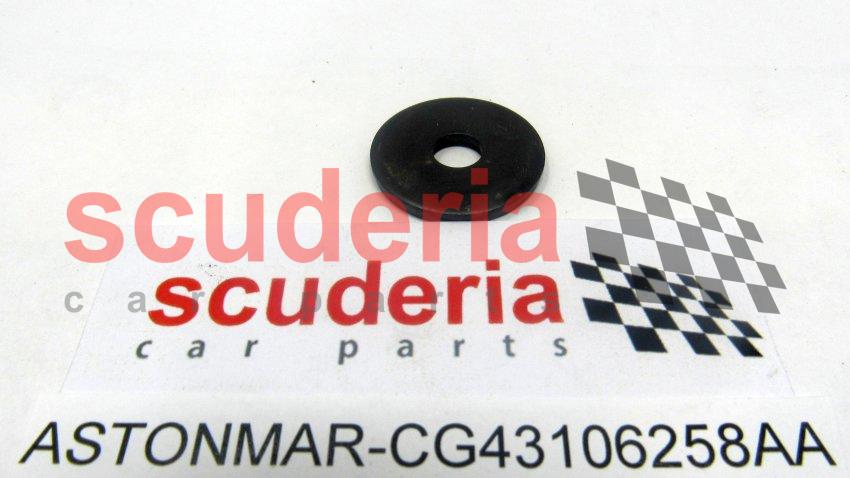

570	CG43106258AA	Washer 6.0 I/D 24 O/D X 2.5 THK	CG43106258AA Washer 6.0 I/D 24 O/D X 2.5 THK	-	4	Enquire
580	4G4346662AAPK	WSHR SPACING 2mm(10)	4G4346662AAPK WSHR SPACING 2mm(10) Pack of 10	-	2	Enquire

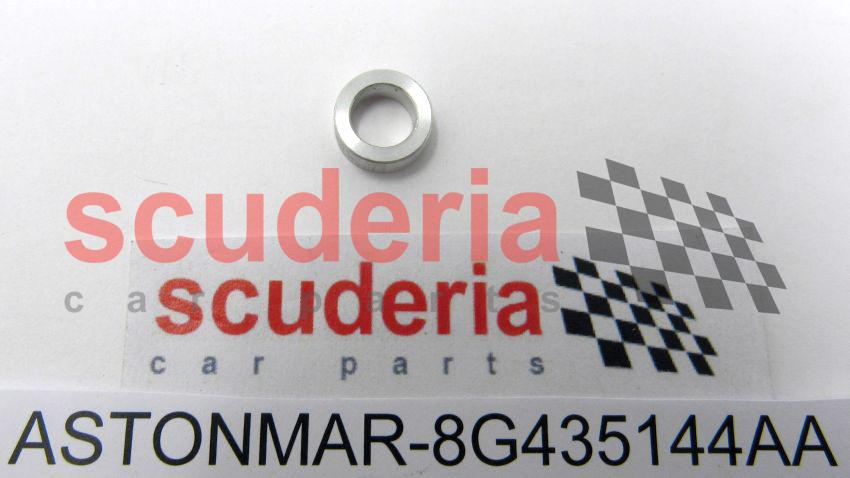

590	8G435144AA	Spacer, Sill Applique	8G435144AA Spacer, Sill Applique	-	2	Enquire
600	HY5319G465BA	BRKT WSH BOT RET	HY5319G465BA BRKT WSH BOT RET	-	1	Enquire
610	703746	SCREW-M6x16 PAN TORX	703746 SCREW-M6x16 PAN TORX	-	1	Enquire
620	703729	Screw, M6 x 16, Flange Hex Head	703729 Screw, M6 x 16, Flange Hex Head	-	10	Enquire
630	4G4346662AAPK	WSHR SPACING 2mm(10)	4G4346662AAPK WSHR SPACING 2mm(10) Pack of 10	-	10	Enquire
640	KY73280B84AC	FENDER LOUVRE LH	KY73280B84AC FENDER LOUVRE LH	-	1	Enquire
641	KY73280B84CB	FENDER LOUVRE LH	KY73280B84CB FENDER LOUVRE LH Carbon Gloss	-	1	Enquire
642	KY73280B84DC	FENDER LOUVRE LH	KY73280B84DC FENDER LOUVRE LH Carbon Gloss Black	-	1	Enquire
643	KY73280B84EB	FENDER LOUVRE LH	KY73280B84EB FENDER LOUVRE LH Carbon Satin Black	-	1	Enquire
650	KY73280B83AC	FENDER LOUVRE RH	KY73280B83AC FENDER LOUVRE RH	-	1	Enquire
651	KY73280B83CB	FENDER LOUVRE RH	KY73280B83CB FENDER LOUVRE RH Carbon Gloss	-	1	Enquire
652	KY73280B83DB	FENDER LOUVRE RH	KY73280B83DB FENDER LOUVRE RH Carbon Gloss Black	-	1	Enquire
653	KY73280B83EB	FENDER LOUVRE RH	KY73280B83EB FENDER LOUVRE RH Carbon Satin Black	-	1	Enquire
660	KY7316287AA	BRKT FRT FNDR TO SIL	KY7316287AA BRKT FRT FNDR TO SIL	-	1	Enquire
670	KY7316286AA	BRKT FRT FNDR TO SIL	KY7316286AA BRKT FRT FNDR TO SIL	-	1	Enquire
680	4G4346662AAPK	WSHR SPACING 2mm(10)	4G4346662AAPK WSHR SPACING 2mm(10) Pack of 10	-	4	Enquire
690	8G435144AA	Spacer, Sill Applique	8G435144AA Spacer, Sill Applique	-	4	Enquire
800	KY7316612AC	HOOD ASSEMBLY	KY7316612AC HOOD ASSEMBLY When replacing a newBonnet, ensure that thecorrect Gas Struts arefitted. See below:-	-	1	Enquire
805	PY7316612AB	HOOD ASSEMBLY	PY7316612AB HOOD ASSEMBLY '770 Ultimate' Edition	-	1	Enquire
810	KY7316C826AA	GAS STRUT HOOD	KY7316C826AA GAS STRUT HOOD -> VIN T02429. (Only usewith KY73-16612-ABBonnet)	-	2	Enquire
811	KY7316C826AB	GAS STRUT HOOD	KY7316C826AB GAS STRUT HOOD VIN T02430->. (Only usewith KY73-16612-ACBonnet)	-	2	Enquire
815	SY9Y044E36GCW	ASSY LWR DRV MIDL PA	SY9Y044E36GCW ASSY LWR DRV MIDL PA '770 Ultimate' Edition	-	2	Enquire
820	HY5316801AE	HINGE ASSY HOOD LH	HY5316801AE HINGE ASSY HOOD LH	-	1	Enquire
830	HY5316800AE	HINGE ASSY HOOD RH	HY5316800AE HINGE ASSY HOOD RH	-	1	Enquire
840	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	703193 BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	-	4	Enquire
850	707136	BLT&WSH-M8 x 25 HEX	707136 BLT&WSH-M8 x 25 HEX	-	8	Enquire
860	HY53286E04AA	GAS STRUT BALL STUD	HY53286E04AA GAS STRUT BALL STUD	-	2	Enquire
870	707148	NUT-M20 HEX THIN	707148 NUT-M20 HEX THIN	-	2	Enquire
880	HY538K038AB	ADJUSTABLE STOP	HY538K038AB ADJUSTABLE STOP	-	2	Enquire
890	703131	WASHER PLAIN FORM A M8 CHROME FREE	703131 WASHER PLAIN FORM A M8 CHROME FREE	-	4	Enquire
900	HY5316K808AA	SUPT HOOD BMPR TO CO	HY5316K808AA SUPT HOOD BMPR TO CO	-	2	Enquire
910	HY53F5238AB	HOOD BUMPSTOP SPACER	HY53F5238AB HOOD BUMPSTOP SPACER	-	2	Enquire
920	AD43106046AA	M6 WASHER	AD43106046AA M6 WASHER	-	2	Enquire
930	HY53E804159BA	M6 DUAL THREAD STUD	HY53E804159BA M6 DUAL THREAD STUD	-	2	Enquire
