Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Body Closures - Volante

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

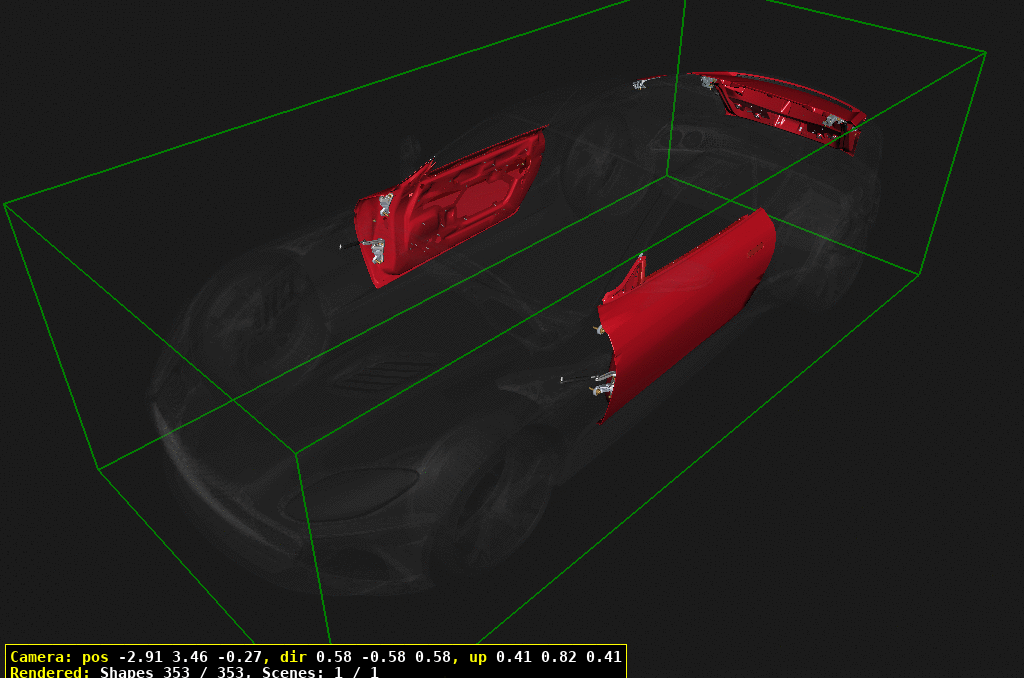

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
10	HY5320123BA	DOOR ASSY LH	HY5320123BA DOOR ASSY LH	-	1	Enquire
20	HY5320122BA	DOOR ASSY RH	HY5320122BA DOOR ASSY RH	-	1	Enquire
30	6485690	BALL STUD-GAS STRUT	6485690 BALL STUD-GAS STRUT	-	2	Enquire
40	HY53F23504AC	GAS STRUT DOOR	HY53F23504AC GAS STRUT DOOR	-	2	Enquire
50	HY53483686AB	BOLT & WASHER M12	HY53483686AB BOLT & WASHER M12	-	1	Enquire
60	707166	BOLT & WSHR-M8 x 30	707166 BOLT & WSHR-M8 x 30	-	8	Enquire
70	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free	-	2	Enquire
80	HY5322801AC	HGE ASY DR UPR LH	HY5322801AC HGE ASY DR UPR LH	-	1	Enquire
90	HY5322800AC	HGE ASY DR UPR RH	HY5322800AC HGE ASY DR UPR RH	-	1	Enquire
100	HY5322811AD	HGE ASY DR LWR LH	HY5322811AD HGE ASY DR LWR LH	-	1	Enquire
110	HY5322810AD	HGE ASY DR LWR RH	HY5322810AD HGE ASY DR LWR RH	-	1	Enquire
200	LY73L40626AC	DECKLID BND ASSY	LY73L40626AC DECKLID BND ASSY	-	1	Enquire
210	KY7340616AB	DECKLID OTR LWR	KY7340616AB DECKLID OTR LWR	-	1	Enquire
220	HY53237A60AA	RET DR TRIM FIN	HY53237A60AA RET DR TRIM FIN	-	5	Enquire
230	HY53N623361AA	EDGE CLIP	HY53N623361AA EDGE CLIP	-	8	Enquire
240	KY73N805853AA	WASHER-M5 x 20 x 1	KY73N805853AA WASHER-M5 x 20 x 1	-	2	Enquire
250	707142	SCREW M5 X 12	707142 SCREW M5 X 12	-	8	Enquire
260	AG4332692AA	Washer, M8, Large OD	AG4332692AA Washer, M8, Large OD	-	2	Enquire
270	6485690	BALL STUD-GAS STRUT	6485690 BALL STUD-GAS STRUT	-	2	Enquire
280	LY73L406A10AA	GAS STRUT DECKLID	LY73L406A10AA GAS STRUT DECKLID	-	2	Enquire
290	KY53L42701AF	HINGE ASSY LH	KY53L42701AF HINGE ASSY LH	-	1	Enquire
300	KY53L42700AF	HINGE ASSY RH	KY53L42700AF HINGE ASSY RH	-	1	Enquire
310	707136	BLT&WSH-M8 x 25 HEX	707136 BLT&WSH-M8 x 25 HEX	-	4	Enquire
320	703731	Bolt, M8 x 35, Hex Flange Head	703731 Bolt, M8 x 35, Hex Flange Head	-	2	Enquire
400	SY9Y10142CA	BOLT M6 X 16 A2 BLK	SY9Y10142CA BOLT M6 X 16 A2 BLK	-	1	Enquire
410	KY53L405B96AB	ASY HINGE FU/FL FLAP	KY53L405B96AB ASY HINGE FU/FL FLAP	-	1	Enquire
420	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	-	3	Enquire
430	699733	WASHER M6 ST STL	699733 WASHER M6 ST STL	-	3	Enquire
