Speaker, Base, Volante of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Speaker, Base, Volante

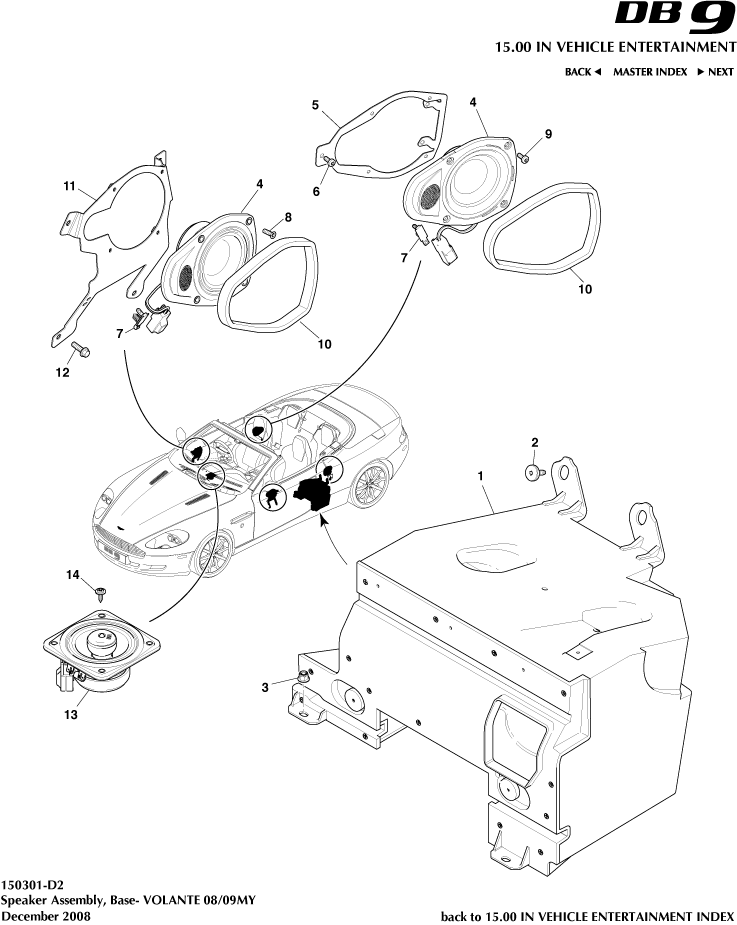

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9G4318808GC	SUB WOOFER & SHIELD	9G4318808GC SUB WOOFER & SHIELD 09MY	-	1	Enquire
-	6G3318808JB	LH SIDE SPEAKER	6G3318808JB LH SIDE SPEAKER -	-	2	Enquire
-	9G4318808JB	Speaker, Side, Alpine	9G4318808JB Speaker, Side, Alpine -	-	4	Enquire
-	8G4318808BA	REAR SPEAKER BRACKETS LH	8G4318808BA REAR SPEAKER BRACKETS LH -	-	1	Enquire
-	6G3318808KC	Bracket, Front Door Speaker, RH	6G3318808KC Bracket, Front Door Speaker, RH -	-	1	Enquire
1	8G4318808GA	SUB WOOF ENCL	8G4318808GA SUB WOOF ENCL 08MY	-	1	Enquire
2	6G33FA0115AB	Screw & Washer, M6 x 20, Torx Hd	6G33FA0115AB Screw & Washer, M6 x 20, Torx Hd -	-	2	Enquire
3	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE -	-	2	Enquire
4	6G3318808MA	SPEAKER RH	6G3318808MA SPEAKER RH -	-	2	Enquire
5	8G4318808AA	REAR SPEAKER BRACKETS RH	8G4318808AA REAR SPEAKER BRACKETS RH -	-	1	Enquire
6	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass -	-	1	Enquire
7	6G430110042	Retainer, Connector	6G430110042 Retainer, Connector -	-	4	Enquire
8	6G33503967AA	Screw, M5 x 16, Csk Hd	6G33503967AA Screw, M5 x 16, Csk Hd -	-	8	Enquire
9	703735	Screw, M5 x 12, Pan Head	703735 Screw, M5 x 12, Pan Head -	-	8	Enquire
10	6G3318808EB	Gasket, Door Speaker	6G3318808EB Gasket, Door Speaker -	-	4	Enquire
11	6G3318808KC	Bracket, Front Door Speaker, RH	6G3318808KC Bracket, Front Door Speaker, RH -	-	1	Enquire
12	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass -	-	8	Enquire
13	6G3318808FA	PREMIUM CENTRE SPEAKER	6G3318808FA PREMIUM CENTRE SPEAKER -	-	1	Enquire
14	701157	SCREW&WSHR 4.2x16	701157 SCREW&WSHR 4.2x16 -	-	4	Enquire
