Speakers, 07My, Volante

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Speakers, 07MY, Volante

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

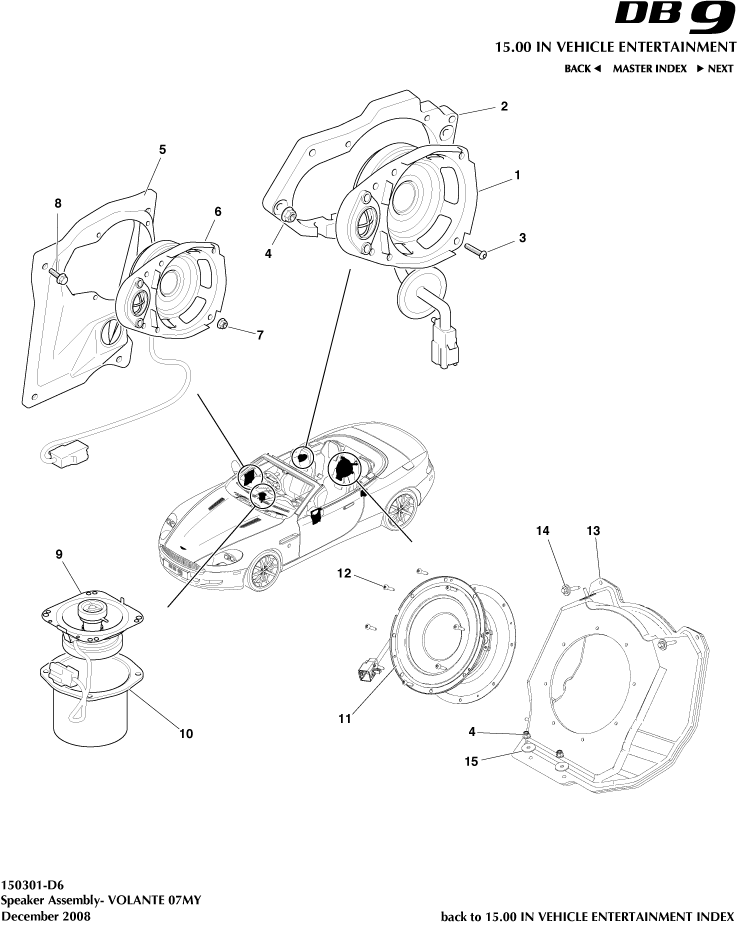

Speakers, 07MY, Volante of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G4318808KD
LINN VOLANTE SPEAKER ASSY LH
- 		- 1 Enquire
- 4G4319A071AE
INFILL GASKET BRACKET
- 		- 1 Enquire
- 4G4318808AA
LINN DOOR SPEAKER
- 		- 1 Enquire
- 4G4318808DA
SUBWOOFER HIGH LVL
- 		- 1 Enquire
- 6G4318808GC
PREMIUM SUB WOOFER ENCLOSURE ASSY 10 COUPE
- 		- 1 Enquire
- 4G4318808HC
STANDARD SUBWOOFER ENCLOSURE ASSY 8
- 		- 1 Enquire
- 4G4319A070GA
SUB ENCLOSURE PREM WOOFER ASSY 10
- 		- 1 Enquire
- 4G43M2D318AA
SOUND DEADENING 650mm X 230mm
- 		- 4 Enquire
- 4G43M2D318BA
SOUND DEADENING 360mm X 240mm
- 		- 3 Enquire
- 4G43M2D318CA
SOUND DEADENING 240mm X 150mm
- 		- 2 Enquire
1 4G4318808JD
VOLANTE SPEAKER RH AM803
- 		- 1 Enquire
2 4G4319A070AE
INFILL GASKET BRACKET
- 		- 1 Enquire
3 701449
SCREW M5x12 8.8
- 		- 8 Enquire
4 700142
NUT M6 FLG LOCKING
- 		- 4 Enquire
6 4G4318808AA
LINN DOOR SPEAKER
- 		- 1 Enquire
7 697479
NUT M5 FLANGED
- 		- 8 Enquire
8 700250
BOLT M6x16
- 		- 8 Enquire
9 4G4318808BA
SPEAKER CENTRE
- 		- 1 Enquire
10 4G4319A070BB
CNTR SPK ENC
Limbic 5.1 		- 1 Enquire
11 4G4318808CA
SUBWOOFER LOW/MED
- 		- 1 Enquire
12 701444
SCREW M5x20 TORX PAN
- 		- 8 Enquire
13 4G4319A070HA
SUB ENCLOSURE BASE WOOFER ASSY
- 		- 1 Enquire
14 701189
SCREW M6x16 HEX FLG
- 		- 2 Enquire
15 697810
WASHER M6 x 25 SSBLK
- 		- 2 Enquire
