Electronic Antenna of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

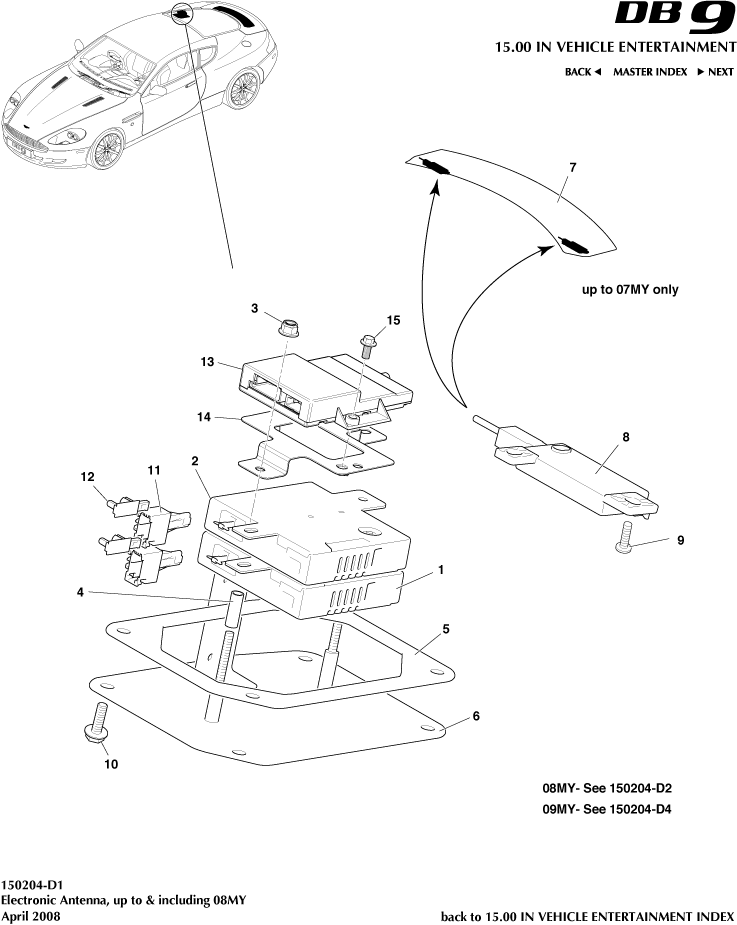

Aston Martin GT DB9 (2004-2017) - Electronic Antenna

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9G433711005	SATELLITE RADIOTUNER	9G433711005 SATELLITE RADIOTUNER -	-	1	Enquire
-	4G433710688	GPS TUNER	4G433710688 GPS TUNER -	-	1	Enquire
-	4G433710892	AM/FM ANTENNA KIT	4G433710892 AM/FM ANTENNA KIT -	-	1	Enquire
1	4G433710474	TMC TUNER	4G433710474 TMC TUNER -	-	1	Enquire
2	6G3314D417AA	AM/FM TUNER	6G3314D417AA AM/FM TUNER From May 07	-	1	Enquire
3	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE -	-	2	Enquire
4	4G4318K833AA	SPACER ALUMINIUM 9.5 X 7 X 25 GRD 6082	4G4318K833AA SPACER ALUMINIUM 9.5 X 7 X 25 GRD 6082 -	-	2	Enquire
5	4G4319A070CA	Gasket, Blanking Plate	4G4319A070CA Gasket, Blanking Plate -	-	1	Enquire
6	4G4318K876DF	TUNER BASE PLATE COUPE	4G4318K876DF TUNER BASE PLATE COUPE -	-	1	Enquire
7	4G4318C897AC	ANTENNA FILM AM/FM1	4G4318C897AC ANTENNA FILM AM/FM1 -	-	1	Enquire
8	4G4318C847AB	ANTENNA AMPLIFIER	4G4318C847AB ANTENNA AMPLIFIER -	-	2	Enquire
9	701441PK	Screw, 4.2 x 13, Small Washer Head	701441PK Screw, 4.2 x 13, Small Washer Head -	-	4	Enquire
10	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm -	-	4	Enquire
11	4G4318C951HB	Media Oriented System transport (MOST), Service Loop	4G4318C951HB Media Oriented System transport (MOST), Service Loop -	-	2	Enquire
12	6G430110042	Retainer, Connector	6G430110042 Retainer, Connector -	-	2	Enquire
13	4G4310E894AA	GPS RECEIVER ASY	4G4310E894AA GPS RECEIVER ASY -	-	1	Enquire
14	4G4310E887BD	GPS TUNER BRACKET	4G4310E887BD GPS TUNER BRACKET -	-	1	Enquire
15	4329002	SP TL-RR S/FRM ADPTR	4329002 SP TL-RR S/FRM ADPTR -	-	2	Enquire
