Aston Martin GT DB9 (2004-2017) - Speakers, 07MY, Coupe

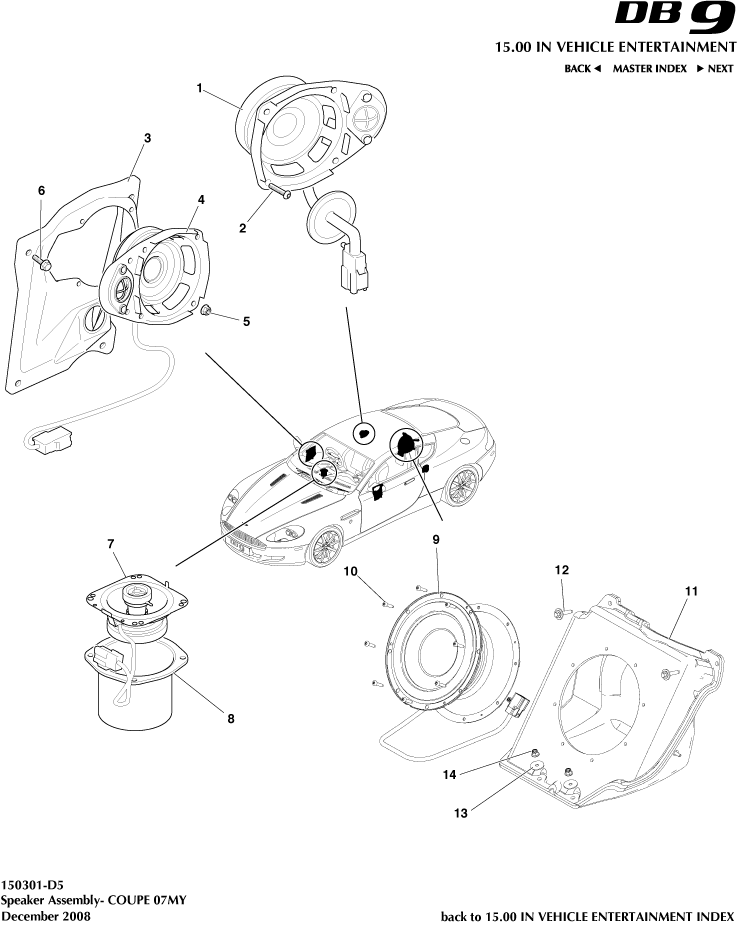

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G4318808FC	SPEAKER MOUNTING PLATE LH	4G4318808FC SPEAKER MOUNTING PLATE LH -	-	1	Enquire
-	4G4318808AA	LINN DOOR SPEAKER	4G4318808AA LINN DOOR SPEAKER -	-	1	Enquire
-	701157	SCREW&WSHR 4.2x16	701157 SCREW&WSHR 4.2x16 -	-	4	Enquire
-	4G4319A070BA	CNTR SPK ENC	4G4319A070BA CNTR SPK ENC Dolby pro logic	-	1	Enquire
-	4G4318808CA	SUBWOOFER LOW/MED	4G4318808CA SUBWOOFER LOW/MED -	-	1	Enquire
-	6G4318808GC	PREMIUM SUB WOOFER ENCLOSURE ASSY 10 COUPE	6G4318808GC PREMIUM SUB WOOFER ENCLOSURE ASSY 10 COUPE -	-	1	Enquire
-	6G4318808HB	SUB ENCLOSURE STD	6G4318808HB SUB ENCLOSURE STD -	-	1	Enquire
-	701556	SCREW M5x16 PAN HD	701556 SCREW M5x16 PAN HD -	-	8	Enquire
-	MY6YC04609AB	IP PASS CLS LWR LHD	MY6YC04609AB IP PASS CLS LWR LHD -	-	1	Enquire
-	4G43M2D318AA	SOUND DEADENING 650mm X 230mm	4G43M2D318AA SOUND DEADENING 650mm X 230mm -	-	4	Enquire
-	4G43M2D318BA	SOUND DEADENING 360mm X 240mm	4G43M2D318BA SOUND DEADENING 360mm X 240mm -	-	3	Enquire
-	4G43M2D318CA	SOUND DEADENING 240mm X 150mm	4G43M2D318CA SOUND DEADENING 240mm X 150mm -	-	2	Enquire
1	4G4318808LA	LINN REAR QUARTER SPEAKER	4G4318808LA LINN REAR QUARTER SPEAKER -	-	2	Enquire
2	701669	SCREW M5x12 PAN HD	701669 SCREW M5x12 PAN HD -	-	8	Enquire
3	4G4318808EC	SPEAKER MOUNTING PLATE RH	4G4318808EC SPEAKER MOUNTING PLATE RH -	-	1	Enquire
4	4G4318808AA	LINN DOOR SPEAKER	4G4318808AA LINN DOOR SPEAKER -	-	1	Enquire
5	697479	NUT M5 FLANGED	697479 NUT M5 FLANGED -	-	1	Enquire
6	700250	BOLT M6x16	700250 BOLT M6x16 -	-	8	Enquire
7	4G4318808BA	SPEAKER CENTRE	4G4318808BA SPEAKER CENTRE -	-	1	Enquire
8	4G4319A070BB	CNTR SPK ENC	4G4319A070BB CNTR SPK ENC Limbic 5.1	-	1	Enquire
9	4G4318808DA	SUBWOOFER HIGH LVL	4G4318808DA SUBWOOFER HIGH LVL -	-	1	Enquire
10	701444	SCREW M5x20 TORX PAN	701444 SCREW M5x20 TORX PAN -	-	8	Enquire
11	SY6Y8A583AA	BRKT ELEC WTR PMP	SY6Y8A583AA BRKT ELEC WTR PMP -	-	1	Enquire
12	701189	SCREW M6x16 HEX FLG	701189 SCREW M6x16 HEX FLG -	-	2	Enquire
13	697810	WASHER M6 x 25 SSBLK	697810 WASHER M6 x 25 SSBLK -	-	2	Enquire
14	700142	NUT M6 FLG LOCKING	700142 NUT M6 FLG LOCKING -	-	2	Enquire
