Electronic Antenna, 08MY of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

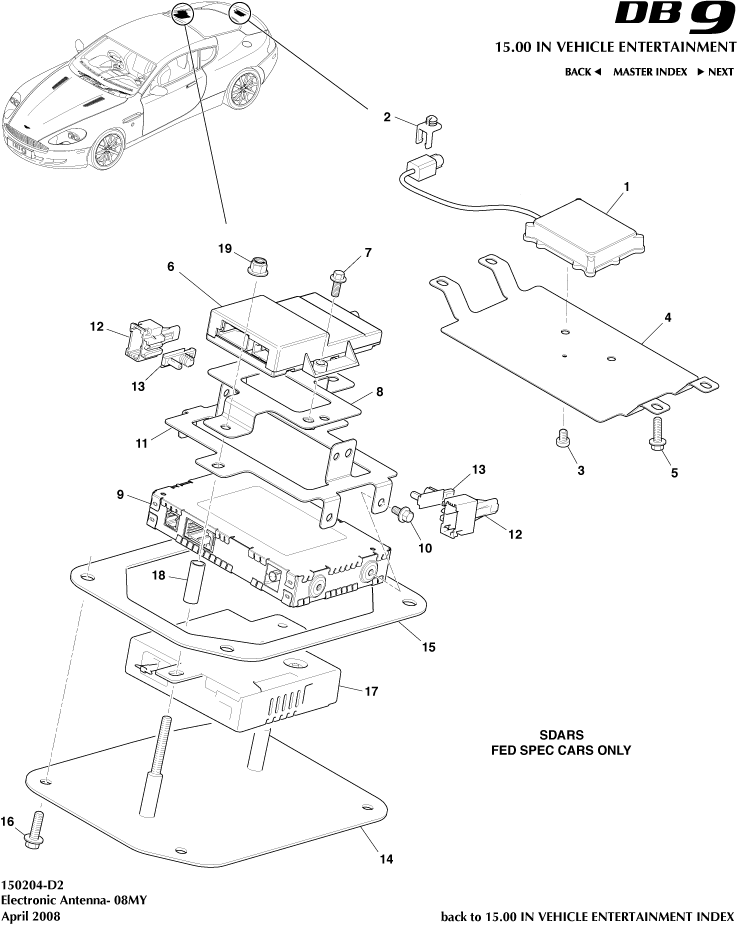

Aston Martin GT DB9 (2004-2017) - Electronic Antenna, 08MY

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G4319C089AB	Antenna, SDARS	8G4319C089AB Antenna, SDARS -	-	1	Enquire
2	8G4314A163CA	Clip, Antenna Connector Retaining	8G4314A163CA Clip, Antenna Connector Retaining -	-	1	Enquire
3	8G43487464AA	Screw and Washer, M5 x 6, Pan Head	8G43487464AA Screw and Washer, M5 x 6, Pan Head -	-	2	Enquire
4	8G4310E921CA	SDARS ANTENNA BRKT	8G4310E921CA SDARS ANTENNA BRKT -	-	1	Enquire
5	703179	SCREW-M5x10 PAN HEAD CHROME FREE	703179 SCREW-M5x10 PAN HEAD CHROME FREE -	-	2	Enquire
6	4G4310E894AA	GPS RECEIVER ASY	4G4310E894AA GPS RECEIVER ASY -	-	1	Enquire
7	4329002	SP TL-RR S/FRM ADPTR	4329002 SP TL-RR S/FRM ADPTR -	-	2	Enquire
8	4G4310E887BD	GPS TUNER BRACKET	4G4310E887BD GPS TUNER BRACKET -	-	1	Enquire
9	9G433711005	SATELLITE RADIOTUNER	9G433711005 SATELLITE RADIOTUNER -	-	1	Enquire
10	703206	SCREW-M5 x 8 HEX FLG CHROME FREE	703206 SCREW-M5 x 8 HEX FLG CHROME FREE -	-	4	Enquire
11	8D3319C183AA	SDARS TUNER MODULE BRKT	8D3319C183AA SDARS TUNER MODULE BRKT -	-	1	Enquire
12	4G4318C951HB	Media Oriented System transport (MOST), Service Loop	4G4318C951HB Media Oriented System transport (MOST), Service Loop -	-	2	Enquire
13	6G430110042	Retainer, Connector	6G430110042 Retainer, Connector -	-	2	Enquire
14	8D3318K876AA	SDARS TUNER BASEPLAT	8D3318K876AA SDARS TUNER BASEPLAT -	-	1	Enquire
16	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	4	Enquire
17	6G3314D417AA	AM/FM TUNER	6G3314D417AA AM/FM TUNER -	-	1	Enquire
18	8D3318K833AA	30MM TUNER SPACER	8D3318K833AA 30MM TUNER SPACER -	-	2	Enquire
19	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking -	-	2	Enquire
