Wheel & Tyres, Rear of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Wheel & Tyres, Rear

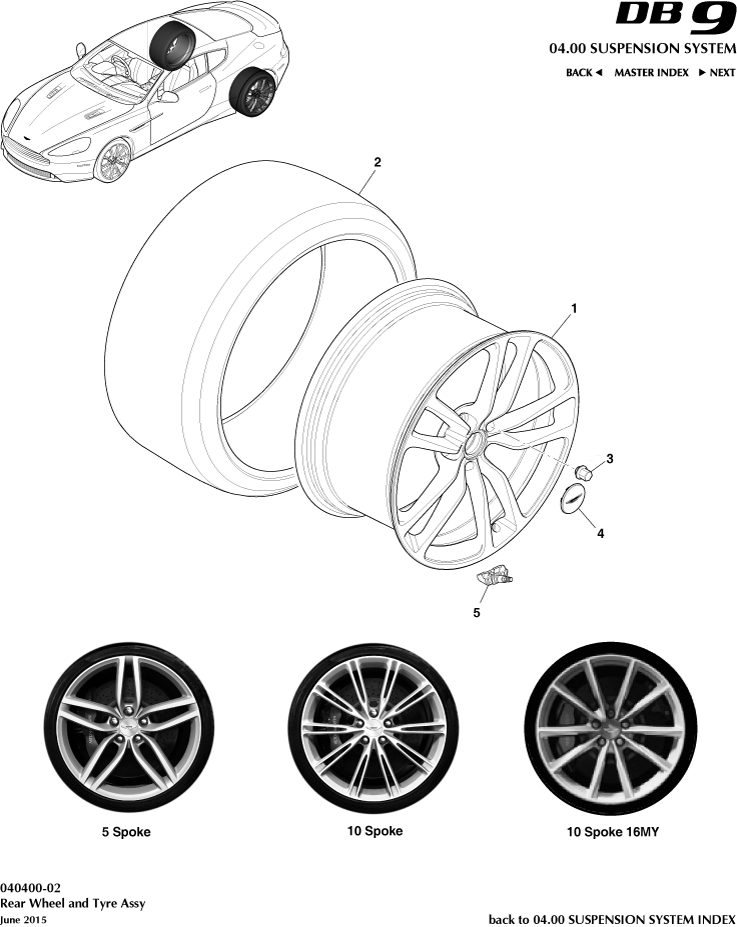

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG439965GGA	Wheel, Rear-20 inch-5 Spoke CFF Silver	CG439965GGA Wheel, Rear-20 inch-5 Spoke CFF Silver Silver	-	2	Enquire
-	GG439965GJA	WHEEL REAR GLS BLK	GG439965GJA WHEEL REAR GLS BLK From 16MY, Black, DT	-	2	Enquire
-	CG439965GDB	Wheel, Rear-20 inch-10 Spoke Forged Silver DT	CG439965GDB Wheel, Rear-20 inch-10 Spoke Forged Silver DT From 13MY To 16MY, Silver, DT	-	2	Enquire
-	CG439965GEB	Wheel, Rear-20 inch-10 Spoke Forged Graphite DT	CG439965GEB Wheel, Rear-20 inch-10 Spoke Forged Graphite DT From 13MY To 16MY, Graphite, DT	-	2	Enquire
-	CG439965GKB	Wheel, Rear-20 inch-10 Spoke Forged Satin Black DT	CG439965GKB Wheel, Rear-20 inch-10 Spoke Forged Satin Black DT From 13MY To 16MY, Satin Black, DT	-	2	Enquire
-	CG439965GFB	Wheel, Rear-20 inch-10 Spoke Forged Liquid Silver	CG439965GFB Wheel, Rear-20 inch-10 Spoke Forged Liquid Silver From 13MY To 16MY, Liquid Silver	-	2	Enquire
-	CG439965GLB	Wheel, Rear-20 inch- Forged Gloss Black	CG439965GLB Wheel, Rear-20 inch- Forged Gloss Black From 13MY To 16MY, Gloss Black	-	2	Enquire
-	GG439965GAA	WHEEL REAR	GG439965GAA WHEEL REAR From 16MY, Gloss Black, DT	-	2	Enquire
-	GG439965GCA	WHEEL - REAR	GG439965GCA WHEEL - REAR From 16MY, Silver, DT	-	2	Enquire
-	KY9Y3A053AB	FR LWR W/BONE LH	KY9Y3A053AB FR LWR W/BONE LH Refer to Pirelli	-	2	Enquire
-	7G331A096BBPK	BDG-WHL CTR-ANTH (4)	7G331A096BBPK BDG-WHL CTR-ANTH (4) Graphite Cap/Green Wings, Pack of 4	-	1	Enquire
-	8D331A096ABPK	BADGE-WHL CENTRE(4)	8D331A096ABPK BADGE-WHL CENTRE(4) Silver Cap/Black Wings, Pack of 4	-	1	Enquire
-	CD331A096ABPK	BADGE-WHL CENTRE(4)	CD331A096ABPK BADGE-WHL CENTRE(4) Black Cap/Black Wings, Pack of 4	-	1	Enquire
-	CD331A096BBPK	BADGE-WHL CENTRE(4)	CD331A096BBPK BADGE-WHL CENTRE(4) Black Cap/Green Wings, Pack of 4	-	1	Enquire
-	CD23360671DA	TPMS Valve and Transmitter Assy	CD23360671DA TPMS Valve and Transmitter Assy 315MHZ	-	1	Enquire
-	CD237042AA	VALVE	CD237042AA VALVE -	-	1	Enquire
-	12525B3A0D7	Dummy connector	12525B3A0D7 Dummy connector Grey	-	-	Enquire
-	ED231040AA	BLK WHL BAL 5G	ED231040AA BLK WHL BAL 5G Black	-	-	Enquire
-	CG43974747AA	Label, Winter Tyre, Maximum Speeds When Fitted	CG43974747AA Label, Winter Tyre, Maximum Speeds When Fitted -	-	1	Enquire
1	CG439965GBA	Wheel, Rear-20 inch-5 Spoke CFF Graphite DT	CG439965GBA Wheel, Rear-20 inch-5 Spoke CFF Graphite DT Up To 16MY, Graphite Diamond Turned	-	2	Enquire
2	FG431508BA	RD TYRE RR-295/30X20	FG431508BA RD TYRE RR-295/30X20 ECE R117	-	2	Enquire
3	4G431K024BD	Nut, Wheel, M14 x 2.0 ARRIVING SOON	4G431K024BD Nut, Wheel, M14 x 2.0 - ARRIVING SOON	-	10	Enquire
4	6G331A096ABPK	BADGE-WHL CENTRE(4)	6G331A096ABPK BADGE-WHL CENTRE(4) Silver Cap/Green Wings, Pack of 4	-	1	Enquire
5	CD23360671CA	TPMS Valve and Transmitter	CD23360671CA TPMS Valve and Transmitter 433MHZ	-	1	Enquire
