Front Suspension Assembly of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

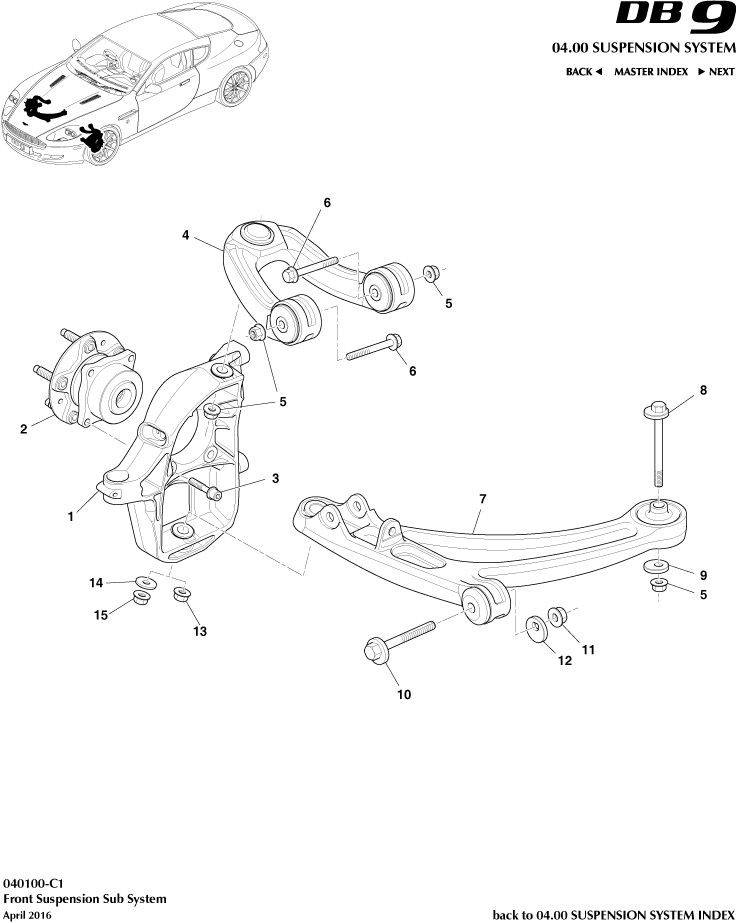

Aston Martin GT DB9 (2004-2017) - Front Suspension Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7G433K185AB	KNUCKLE FRONT LH	7G433K185AB KNUCKLE FRONT LH -	-	1	Enquire
-	6G333084AB	ARM BUSH/JOINT FRONT SUSPENSION UPPER RH	6G333084AB ARM BUSH/JOINT FRONT SUSPENSION UPPER RH 09MY	-	1	Enquire
-	4G433084BE	ARM BUSH FRONT SUSPENSION UPPER RH	4G433084BE ARM BUSH FRONT SUSPENSION UPPER RH pre 09MY	-	1	Enquire
-	8D333091AC	Arm Bush Front Suspension Upper LH	8D333091AC Arm Bush Front Suspension Upper LH 11MY (also 10.7MY with ADS)	-	1	Enquire
-	6G333091AB	ARM BUSH/JOINT FRONT SUSPENSION UPPER LH	6G333091AB ARM BUSH/JOINT FRONT SUSPENSION UPPER LH 09MY	-	1	Enquire
-	4G433091BE	ARM BUSH FRONT SUSPENSION UPPER LH	4G433091BE ARM BUSH FRONT SUSPENSION UPPER LH pre 09MY	-	1	Enquire
-	4G433A052BE	ARM & BSHG ASSY FRT	4G433A052BE ARM & BSHG ASSY FRT pre 09MY	-	1	Enquire
-	8D333A053AC	FRONT SUSPENSION LOWER ARM LH	8D333A053AC FRONT SUSPENSION LOWER ARM LH 09MY	-	1	Enquire
-	4G433A053BF	ARM& BSHG ASY FRT SS	4G433A053BF ARM& BSHG ASY FRT SS pre 09MY	-	1	Enquire
-	1R12232726AB	CAM WASHER-FRT LCA	1R12232726AB CAM WASHER-FRT LCA 07MY	-	2	Enquire
1	7G433K186AB	KNUCKLE FRONT RH	7G433K186AB KNUCKLE FRONT RH -	-	1	Enquire
2	4G432B663AD	HUB & BEARING ASSEMBLY, FRONT	4G432B663AD HUB & BEARING ASSEMBLY, FRONT -	-	2	Enquire
3	4G430783AA	BOLT M10X55.1.25 GRD	4G430783AA BOLT M10X55.1.25 GRD Bearing to Knuckle	-	8	Enquire
4	8D333084AC	Arm Bush Front Suspension Upper RH	8D333084AC Arm Bush Front Suspension Upper RH 11MY (also 10.7MY with ADS)	-	1	Enquire
5	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE -	-	8	Enquire
6	703180	BOLT M12 x 90 HEX FLNG 10 CHROME FREE	703180 BOLT M12 x 90 HEX FLNG 10 CHROME FREE -	-	4	Enquire
7	8D333A052AC	ARM & BSHG ASSY FRONT SUSPENSION LOWER RH	8D333A052AC ARM & BSHG ASSY FRONT SUSPENSION LOWER RH 09MY	-	1	Enquire
8	4G433B236BB	Bolt M12 Eccentric Front	4G433B236BB Bolt M12 Eccentric Front -	-	2	Enquire
9	4G433B237BB	Washer, M12, Eccentric	4G433B237BB Washer, M12, Eccentric -	-	2	Enquire
10	4G433B236CB	Bolt, M14, eccentric	4G433B236CB Bolt, M14, eccentric -	-	2	Enquire
11	701337	NUT M14 HEX FLG P/T	701337 NUT M14 HEX FLG P/T -	-	2	Enquire
12	4G433B237CA	Washer, M14 eccentric	4G433B237CA Washer, M14 eccentric 08MY From (V) A09110	-	2	Enquire
13	701578	NUT & WASHER M12 HEX	701578 NUT & WASHER M12 HEX 07MY	-	2	Enquire
14	GG3339078AA	WSHR-37.75 od x 13.4	GG3339078AA WSHR-37.75 od x 13.4 08MY From VIN A09110	-	2	Enquire
15	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE 08MY From VIN A09110	-	2	Enquire
