Wheels & Tyres of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Wheels & Tyres

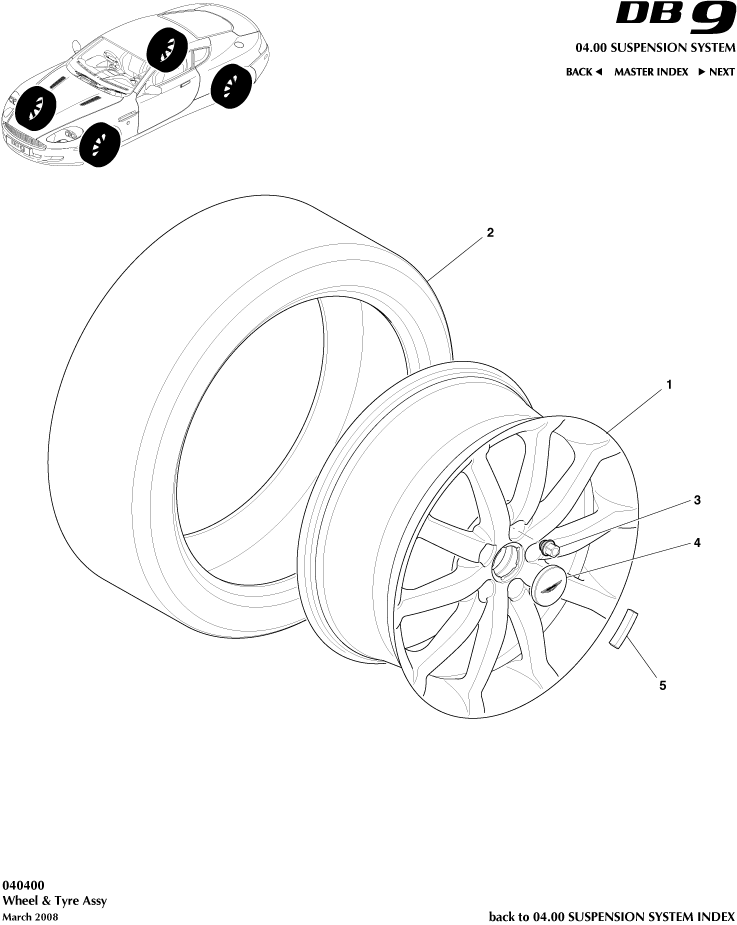

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6G431007AA	WHEEL FRONT 8.5 x 19 (LIGHTWEIGHT SPORTSPACK)	6G431007AA WHEEL FRONT 8.5 x 19 (LIGHTWEIGHT SPORTSPACK) Sportspack	-	2	Enquire
-	9G431007AC	WHEEL (8 1/2Jx19 50.3MM OFFSET) FRONT 10 SPOKE	9G431007AC WHEEL (8 1/2Jx19 50.3MM OFFSET) FRONT 10 SPOKE 09MY	-	2	Enquire
-	6G431007BA	WHEEL REAR 9.5 x 19 LIGHTWEIGHT SPORTSPACK	6G431007BA WHEEL REAR 9.5 x 19 LIGHTWEIGHT SPORTSPACK Sportspack	-	2	Enquire
-	4G431007BB	WHEEL (9 1/2 Jx19 62.5mm OFFSET) REAR	4G431007BB WHEEL (9 1/2 Jx19 62.5mm OFFSET) REAR Standard	-	2	Enquire
-	9G431007BC	WHEEL (9 1/2 Jx19 62.5mm OFFSET) REAR 10 SPOKE	9G431007BC WHEEL (9 1/2 Jx19 62.5mm OFFSET) REAR 10 SPOKE 09MY	-	2	Enquire
-	6G431007CA	WHEEL FRNT 8.5 X 19 LIGHTWEIGHT SPORTSPACK	6G431007CA WHEEL FRNT 8.5 X 19 LIGHTWEIGHT SPORTSPACK Le Mans	-	2	Enquire
-	6G431007DA	WHEEL REAR 9.5 X 19 LIGHTWEIGHT SPORTSPACK	6G431007DA WHEEL REAR 9.5 X 19 LIGHTWEIGHT SPORTSPACK Le Mans	-	2	Enquire
-	4G431007DB	WHEEL - WINTER FRONT	4G431007DB WHEEL - WINTER FRONT -	-	2	Enquire
-	4G431007EB	WHEEL - WINTER REAR	4G431007EB WHEEL - WINTER REAR -	-	2	Enquire
-	4G431007FA	WHEEL 19in FRONT	4G431007FA WHEEL 19in FRONT Optional	-	2	Enquire
-	4G431007GA	WHEEL 19 inch REAR	4G431007GA WHEEL 19 inch REAR Optional	-	2	Enquire
-	9G431007FA	WHEEL-FRONT 19 inch SILVER 20 SPOKE DT	9G431007FA WHEEL-FRONT 19 inch SILVER 20 SPOKE DT 09MY	-	2	Enquire
-	9G431007GA	WHEEL- REAR 19in SILVER DT	9G431007GA WHEEL- REAR 19in SILVER DT 09MY	-	2	Enquire
-	9G431007HA	WHEEL - FRONT 19in GRAPHITE 20 SPOKE DT	9G431007HA WHEEL - FRONT 19in GRAPHITE 20 SPOKE DT 09MY	-	2	Enquire
-	9G431007IA	WHEEL - GRAPHITE 19inch REAR	9G431007IA WHEEL - GRAPHITE 19inch REAR 09MY	-	2	Enquire
-	AG431007CA	FRONT WHEEL-19inch DIAMOND TURNED GRAPHITE 19X8.5	AG431007CA FRONT WHEEL-19inch DIAMOND TURNED GRAPHITE 19X8.5 11MY	-	2	Enquire
-	AG431007FA	REAR WHEEL-19 inch DIAMOND TURNED GRAPHITE 19X9.5	AG431007FA REAR WHEEL-19 inch DIAMOND TURNED GRAPHITE 19X9.5 11MY	-	2	Enquire
-	AG431007GA	FRONT WHEEL-19 inch DIAMOND TURNED WHEEL	AG431007GA FRONT WHEEL-19 inch DIAMOND TURNED WHEEL 11MY	-	2	Enquire
-	AG431007HA	REAR WHEEL-19 inch DIAMOND TURNED SILVER	AG431007HA REAR WHEEL-19 inch DIAMOND TURNED SILVER 11MY	-	2	Enquire
-	AG431007JA	FRONT WHEEL-19in DIAMOND TURNED BLACK 19 x 8.5	AG431007JA FRONT WHEEL-19in DIAMOND TURNED BLACK 19 x 8.5 11MY	-	2	Enquire
-	AG431007KA	REAR WHEEL-19in DIAMOND TURNED BLACK 19 x 9.5	AG431007KA REAR WHEEL-19in DIAMOND TURNED BLACK 19 x 9.5 11MY	-	2	Enquire
-	CG431007MA	FT WHL BLACK DT 19in	CG431007MA FT WHL BLACK DT 19in 12MY, DB9 GT	-	2	Enquire
-	CG439965GMA	RR WHL BLACK DT19in	CG439965GMA RR WHL BLACK DT19in 12MY, DB9 GT	-	2	Enquire
-	CG431508BA	TYRE ROAD REAR 275-35ZR19 CCC	CG431508BA TYRE ROAD REAR 275-35ZR19 CCC China only	-	2	Enquire
-	9G331508CA	WINTER TYRE-FRONT 235-40x19 inch	9G331508CA WINTER TYRE-FRONT 235-40x19 inch -	-	2	Enquire
-	9G331508DB	WINTER TYRE RR-19in	9G331508DB WINTER TYRE RR-19in -	-	2	Enquire
-	4G43974747AA	WINTER TYRE LABEL	4G43974747AA WINTER TYRE LABEL -	-	1	Enquire
-	4G431K024BC	WHEEL NUT M14x2.0	4G431K024BC WHEEL NUT M14x2.0 From VIN A09285	-	20	Enquire
-	670206603	RH FRONT SEAT BLACK+GREY	670206603 RH FRONT SEAT BLACK+GREY Sportspack	-	20	Enquire
-	4G433610693	Wheel Nut Kit, Titanium	4G433610693 Wheel Nut Kit, Titanium No Longer Available	-	1	Enquire
-	7G331A096BAPK	BDG-WHL CTR-ANTH (4)	7G331A096BAPK BDG-WHL CTR-ANTH (4) Pack of 4	-	1	Enquire
-	CG33360671AA	TPMS Valve Service	CG33360671AA TPMS Valve Service From VIN B06467 to 11MY	-	4	Enquire
-	AD43360671AA	TPMS TRANS ASSY	AD43360671AA TPMS TRANS ASSY From 11MY, 433MHz	-	1	Enquire
-	AD43360671BA	TPMS TRANS ASSY	AD43360671BA TPMS TRANS ASSY From 11MY, 315MHz	-	1	Enquire
-	3683832PK	T/VALVE-SNAP IN-SNOW WINTER WHEEL-RUBBER COVERED PACK OF 4	3683832PK T/VALVE-SNAP IN-SNOW WINTER WHEEL-RUBBER COVERED PACK OF 4 Winter Wheel Only, NOT TPMS. Pack of 4	-	1	Enquire
-	SY9Y2C027CA	RR WHL DISC BRK-LH	SY9Y2C027CA RR WHL DISC BRK-LH -	-	A/R	Enquire
-	670203125	REAR SEAT CUSHION RED + AMAN	670203125 REAR SEAT CUSHION RED + AMAN -	-	A/R	Enquire
-	4G433610809	VALVE STEM CAP METAL DB9	4G433610809 VALVE STEM CAP METAL DB9 -	-	4	Enquire
-	3685998	VLV CAP WITH AM WING	3685998 VLV CAP WITH AM WING Sportspack	-	4	Enquire
-	1R123610555	TRANSMITTER DUST CAP SILVER	1R123610555 TRANSMITTER DUST CAP SILVER For use with TP valves	-	4	Enquire
1	4G431007AB	WHEEL (8 1/2Jx19 50.3mm OFFSET) FRONT	4G431007AB WHEEL (8 1/2Jx19 50.3mm OFFSET) FRONT Standard	-	2	Enquire
2	9G433611534	TYRE SET(4)-PSPORT	9G433611534 TYRE SET(4)-PSPORT -	-	1	Enquire
3	4G431K024AD	WHEEL NUT M14x2.0	4G431K024AD WHEEL NUT M14x2.0 Up to VIN A09284	-	20	Enquire
4	6G331A096ABPK	BADGE-WHL CENTRE(4)	6G331A096ABPK BADGE-WHL CENTRE(4) Pack of 4	-	1	Enquire
5	1R123610357	SENDER/VLVE/RING SET	1R123610357 SENDER/VLVE/RING SET Up to VIN B06466	-	4	Enquire
