Rear Suspension Assembly of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

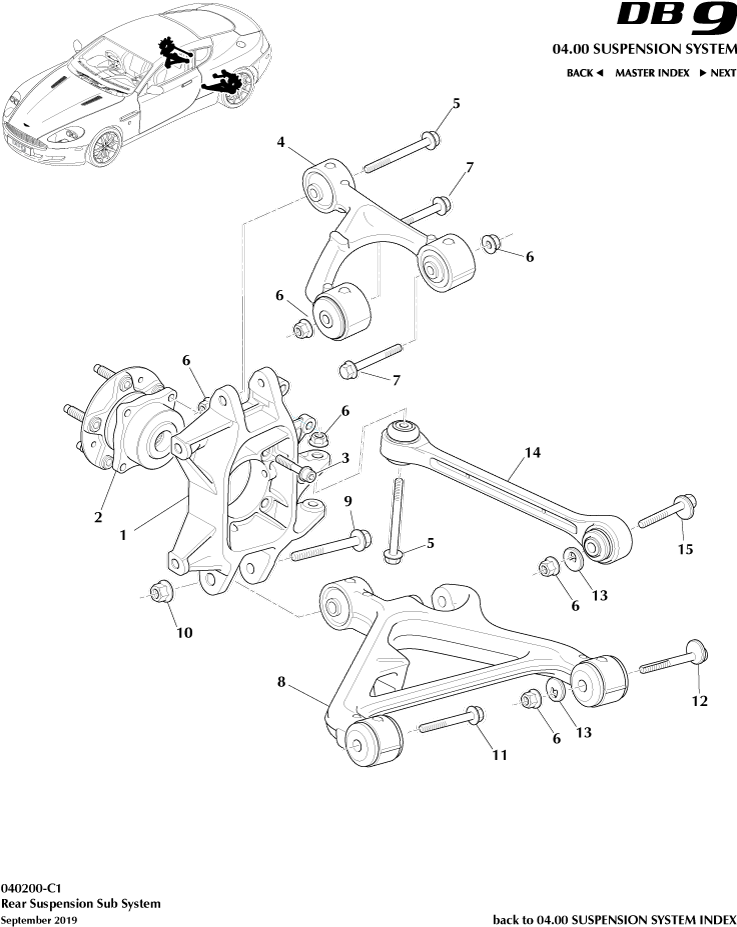

Aston Martin GT DB9 (2004-2017) - Rear Suspension Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D335A971AB	KNUCKLE - REAR WHEEL LH	8D335A971AB KNUCKLE - REAR WHEEL LH ->VIN A09770, Change Both Sides	-	1	Enquire
-	8D335A971AB	KNUCKLE - REAR WHEEL LH	8D335A971AB KNUCKLE - REAR WHEEL LH VIN A09770->	-	1	Enquire
-	6G335K742AA	Arm & Bushing Assy, Rear Suspension, Upper, RH	6G335K742AA Arm & Bushing Assy, Rear Suspension, Upper, RH 10.7MY->	-	1	Enquire
-	4G435K743BC	ARM & BUSHING ASSY REAR SUSPENSION UPPER LH	4G435K743BC ARM & BUSHING ASSY REAR SUSPENSION UPPER LH -	-	1	Enquire
-	670219969	FRONT LOWER BUMPER CHINA	670219969 FRONT LOWER BUMPER CHINA 10.7MY->	-	1	Enquire
-	4G435B531BD	ARM & BSHG ASY-RR LW	4G435B531BD ARM & BSHG ASY-RR LW -	-	1	Enquire
1	8D335A970AB	KNUCKLE - REAR WHEEL RH	8D335A970AB KNUCKLE - REAR WHEEL RH ->VIN A09770, Change Both Sides	-	1	Enquire
1	8D335A970AB	KNUCKLE - REAR WHEEL RH	8D335A970AB KNUCKLE - REAR WHEEL RH VIN A09770->	-	1	Enquire
3	4G430783AA	BOLT M10X55.1.25 GRD	4G430783AA BOLT M10X55.1.25 GRD -	-	8	Enquire
4	4G435K742BC	Arm & Bushing Assy Rear Suspension Upper RH	4G435K742BC Arm & Bushing Assy Rear Suspension Upper RH -	-	1	Enquire
5	701338	BOLT M12x110 HEX FLG	701338 BOLT M12x110 HEX FLG -	-	4	Enquire
6	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE -	-	8	Enquire
7	703181	BOLT M12 X 85 HEX FLANGE CHROME FREE	703181 BOLT M12 X 85 HEX FLANGE CHROME FREE -	-	4	Enquire
8	4G435B530BD	ARM & BSHG ASY-RR LW	4G435B530BD ARM & BSHG ASY-RR LW -	-	1	Enquire
9	703133	BOLT M14 X 110 HEX FLANGE CHROME FREE	703133 BOLT M14 X 110 HEX FLANGE CHROME FREE -	-	2	Enquire
10	701337	NUT M14 HEX FLG P/T	701337 NUT M14 HEX FLG P/T -	-	2	Enquire
11	703180	BOLT M12 x 90 HEX FLNG 10 CHROME FREE	703180 BOLT M12 x 90 HEX FLNG 10 CHROME FREE -	-	2	Enquire
12	4G432610023	BOLT M12 ECCENTRIC	4G432610023 BOLT M12 ECCENTRIC -	-	2	Enquire
13	4G432610024	WASHER M12 ECCENTRIC	4G432610024 WASHER M12 ECCENTRIC -	-	4	Enquire
14	4G435B551AA	Toe Control Arm Rear Right	4G435B551AA Toe Control Arm Rear Right -	-	2	Enquire
15	4G435K978AB	Bolt, M12, Eccentric	4G435K978AB Bolt, M12, Eccentric -	-	2	Enquire
