Sports Pack Kit, 2007 of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Sports Pack Kit, 2007

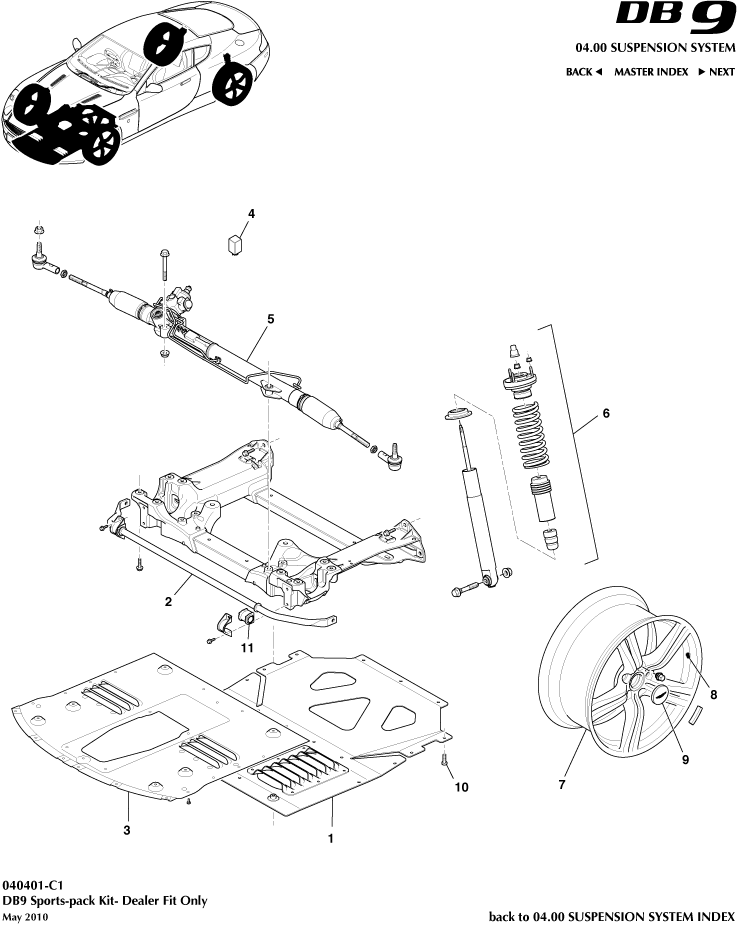

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G432410696	DB9 SPORTS PACK C/W STRG UNIT-RHD (TO 6.5MY) MANUAL	4G432410696 DB9 SPORTS PACK C/W STRG UNIT-RHD (TO 6.5MY) MANUAL -	-	1	Enquire
-	6G4318080EB	SHK ABS ASY-RR	6G4318080EB SHK ABS ASY-RR Part of 4G43-24-10696	-	2	Enquire
-	6G433200BC	STNG GR & LNKG ASY	6G433200BC STNG GR & LNKG ASY Part of 4G43-24-10696	-	1	Enquire
-	703180	BOLT M12 x 90 HEX FLNG 10 CHROME FREE	703180 BOLT M12 x 90 HEX FLNG 10 CHROME FREE Part of 4G43-24-10696	-	3	Enquire
-	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE Part of 4G43-24-10696	-	3	Enquire
-	4G432410697	DB9 SPORTS PACK C/W STRG UNIT-LHD (TO 6.5MY) MANUAL	4G432410697 DB9 SPORTS PACK C/W STRG UNIT-LHD (TO 6.5MY) MANUAL -	-	1	Enquire
-	4G4311262AC	REINF ASSY FRT FLR PAN FRT	4G4311262AC REINF ASSY FRT FLR PAN FRT Part of 4G43-24-10697	-	1	Enquire
-	670151810	RH UP REAR PILLAR COVER GUAR	670151810 RH UP REAR PILLAR COVER GUAR Part of 4G43-24-10697	-	1	Enquire
-	6G4318080EB	SHK ABS ASY-RR	6G4318080EB SHK ABS ASY-RR Part of 4G43-24-10697	-	2	Enquire
-	6G433F826AB	STNG GR & LNKG ASY	6G433F826AB STNG GR & LNKG ASY Part of 4G43-24-10697	-	1	Enquire
-	703180	BOLT M12 x 90 HEX FLNG 10 CHROME FREE	703180 BOLT M12 x 90 HEX FLNG 10 CHROME FREE Part of 4G43-24-10697	-	3	Enquire
-	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE Part of 4G43-24-10697	-	3	Enquire
-	4G432310698	DB9 SPORTS PACK 07MY-09MY MANUAL (W/OUT STRG UNIT)	4G432310698 DB9 SPORTS PACK 07MY-09MY MANUAL (W/OUT STRG UNIT) Part of 4G43-24-10698	-	1	Enquire
-	4G4311262AC	REINF ASSY FRT FLR PAN FRT	4G4311262AC REINF ASSY FRT FLR PAN FRT Part of 4G43-24-10698	-	1	Enquire
-	670151810	RH UP REAR PILLAR COVER GUAR	670151810 RH UP REAR PILLAR COVER GUAR Part of 4G43-24-10698	-	1	Enquire
-	6G4318080EB	SHK ABS ASY-RR	6G4318080EB SHK ABS ASY-RR Part of 4G43-24-10698	-	2	Enquire
-	4G432410810	DB9 SPORTS PACK C/W STRG UNIT-RHD (TO 6.5MY) AUTO G/BX	4G432410810 DB9 SPORTS PACK C/W STRG UNIT-RHD (TO 6.5MY) AUTO G/BX -	-	1	Enquire
-	4G4311262AC	REINF ASSY FRT FLR PAN FRT	4G4311262AC REINF ASSY FRT FLR PAN FRT Part of 4G43-24-10810	-	1	Enquire
-	670151810	RH UP REAR PILLAR COVER GUAR	670151810 RH UP REAR PILLAR COVER GUAR Part of 4G43-24-10810	-	1	Enquire
-	6G4318080GD	ASY - REAR DAMPER COMP - COUPE AUTO	6G4318080GD ASY - REAR DAMPER COMP - COUPE AUTO Part of 4G43-24-10810	-	2	Enquire
-	6G433200BC	STNG GR & LNKG ASY	6G433200BC STNG GR & LNKG ASY Part of 4G43-24-10810	-	1	Enquire
-	6G433F826AB	STNG GR & LNKG ASY	6G433F826AB STNG GR & LNKG ASY Part of 4G43-24-10810	-	1	Enquire
-	703180	BOLT M12 x 90 HEX FLNG 10 CHROME FREE	703180 BOLT M12 x 90 HEX FLNG 10 CHROME FREE Part of 4G43-24-10810	-	3	Enquire
-	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE Part of 4G43-24-10810	-	3	Enquire
-	4G432410811	DB9 SPORTS PACK C/W STRG UNIT-LHD (TO 6.5MY) AUTO G/BX	4G432410811 DB9 SPORTS PACK C/W STRG UNIT-LHD (TO 6.5MY) AUTO G/BX -	-	1	Enquire
-	4G4311262AC	REINF ASSY FRT FLR PAN FRT	4G4311262AC REINF ASSY FRT FLR PAN FRT Part of 4G43-24-10811	-	1	Enquire
-	670151810	RH UP REAR PILLAR COVER GUAR	670151810 RH UP REAR PILLAR COVER GUAR Part of 4G43-24-10811	-	1	Enquire
-	6G4318080GD	ASY - REAR DAMPER COMP - COUPE AUTO	6G4318080GD ASY - REAR DAMPER COMP - COUPE AUTO Part of 4G43-24-10811	-	2	Enquire
-	6G433200AC	STNG GR & LNKG ASY	6G433200AC STNG GR & LNKG ASY Part of 4G43-24-10811	-	1	Enquire
-	6G433F826AB	STNG GR & LNKG ASY	6G433F826AB STNG GR & LNKG ASY Part of 4G43-24-10811	-	1	Enquire
-	703180	BOLT M12 x 90 HEX FLNG 10 CHROME FREE	703180 BOLT M12 x 90 HEX FLNG 10 CHROME FREE Part of 4G43-24-10811	-	3	Enquire
-	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE Part of 4G43-24-10811	-	3	Enquire
-	4G432310812	DB9 SPORTS PACK 07MY-09MY AUTO (W/OUT STRG UNIT)	4G432310812 DB9 SPORTS PACK 07MY-09MY AUTO (W/OUT STRG UNIT) -	-	1	Enquire
-	4G4311262AC	REINF ASSY FRT FLR PAN FRT	4G4311262AC REINF ASSY FRT FLR PAN FRT Part of 4G43-24-10812	-	1	Enquire
-	670151810	RH UP REAR PILLAR COVER GUAR	670151810 RH UP REAR PILLAR COVER GUAR Part of 4G43-24-10812	-	1	Enquire
-	6G4318080GD	ASY - REAR DAMPER COMP - COUPE AUTO	6G4318080GD ASY - REAR DAMPER COMP - COUPE AUTO Part of 4G43-24-10812	-	2	Enquire
-	9G432311064	DB9 SPORTS PACK 09MY ONWARDS MANUAL (W/OUT STRG UNIT)	9G432311064 DB9 SPORTS PACK 09MY ONWARDS MANUAL (W/OUT STRG UNIT) -	-	1	Enquire
-	9G4311262AC	REINF ASSY FRT FLR	9G4311262AC REINF ASSY FRT FLR Part of 4G43-24-11064	-	1	Enquire
-	670151810	RH UP REAR PILLAR COVER GUAR	670151810 RH UP REAR PILLAR COVER GUAR Part of 4G43-24-11064	-	1	Enquire
-	6G33608081AA	RIVNUT M8 FLAT HEADED KNURLED 3.5-5.0mm GRIP Zn/Ni	6G33608081AA RIVNUT M8 FLAT HEADED KNURLED 3.5-5.0mm GRIP Zn/Ni Part of 4G43-24-11064	-	4	Enquire
-	703268	Screw and Washer, M8 x 21	703268 Screw and Washer, M8 x 21 Part of 4G43-24-11064	-	4	Enquire
-	703268	Screw and Washer, M8 x 21	703268 Screw and Washer, M8 x 21 Part of 4G43-24-11064	-	4	Enquire
-	6G4318080EB	SHK ABS ASY-RR	6G4318080EB SHK ABS ASY-RR Part of 4G43-24-11064	-	2	Enquire
-	9G432311065	DB9 SPORTS PACK 09MY ONWARDS AUTO (W/OUT STRG UNIT)	9G432311065 DB9 SPORTS PACK 09MY ONWARDS AUTO (W/OUT STRG UNIT) -	-	1	Enquire
-	9G4311262AC	REINF ASSY FRT FLR	9G4311262AC REINF ASSY FRT FLR Part of 4G43-24-11065	-	1	Enquire
-	6G335494AB	ANTI ROLL BAR FRONT	6G335494AB ANTI ROLL BAR FRONT Part of 4G43-24-11065	-	1	Enquire
-	6G33608081AA	RIVNUT M8 FLAT HEADED KNURLED 3.5-5.0mm GRIP Zn/Ni	6G33608081AA RIVNUT M8 FLAT HEADED KNURLED 3.5-5.0mm GRIP Zn/Ni Part of 4G43-24-11065	-	4	Enquire
-	703268	Screw and Washer, M8 x 21	703268 Screw and Washer, M8 x 21 Part of 4G43-24-11065	-	4	Enquire
-	6G4318080GD	ASY - REAR DAMPER COMP - COUPE AUTO	6G4318080GD ASY - REAR DAMPER COMP - COUPE AUTO Part of 4G43-24-11065	-	2	Enquire
-	670151809	RH UP REAR PILLAR COVER GUAR	670151809 RH UP REAR PILLAR COVER GUAR -	-	-	Enquire
-	6G431007BA	WHEEL REAR 9.5 x 19 LIGHTWEIGHT SPORTSPACK	6G431007BA WHEEL REAR 9.5 x 19 LIGHTWEIGHT SPORTSPACK -	-	2	Enquire
-	702973	RIVNUT M8	702973 RIVNUT M8 -	-	13	Enquire
-	703018	M6x1 .0x32 TORX PAN BOLT	703018 M6x1 .0x32 TORX PAN BOLT -	-	2	Enquire
-	697517	WASHER M6 LGE OD BLK	697517 WASHER M6 LGE OD BLK -	-	4	Enquire
-	4G432310694	INSTRUCTION- DB9 SPORTS PACK	4G432310694 INSTRUCTION- DB9 SPORTS PACK -	-	1	Enquire
-	4G432310695	TEMPLATE KIT- DB9 SPORTS PACK	4G432310695 TEMPLATE KIT- DB9 SPORTS PACK -	-	1	Enquire
1	4G4311262AC	REINF ASSY FRT FLR PAN FRT	4G4311262AC REINF ASSY FRT FLR PAN FRT Part of 4G43-24-10696	-	1	Enquire
2	6G335494AB	ANTI ROLL BAR FRONT	6G335494AB ANTI ROLL BAR FRONT Part of 4G43-24-10696	-	1	Enquire
4	6G433F826AB	STNG GR & LNKG ASY	6G433F826AB STNG GR & LNKG ASY Part of 4G43-24-10696	-	1	Enquire
5	6G433200AC	STNG GR & LNKG ASY	6G433200AC STNG GR & LNKG ASY Part of 4G43-24-10697	-	1	Enquire
6	6G4318B036EB	UNT ASY-FRT SHK COMP	6G4318B036EB UNT ASY-FRT SHK COMP -	-	2	Enquire
7	6G431007AA	WHEEL FRONT 8.5 x 19 (LIGHTWEIGHT SPORTSPACK)	6G431007AA WHEEL FRONT 8.5 x 19 (LIGHTWEIGHT SPORTSPACK) -	-	2	Enquire
8	3685998PK	Valve Cap with A.M wing Logo (Pack of four)	3685998PK Valve Cap with A.M wing Logo (Pack of four) -	-	1	Enquire
9	6G331A096ABPK	BADGE-WHL CENTRE(4)	6G331A096ABPK BADGE-WHL CENTRE(4) Pack of 4	-	1	Enquire
10	703172	SCREW M8x25 PAN 8	703172 SCREW M8x25 PAN 8 -	-	13	Enquire
11	6G335484AB	BUSH - ANTI ROLL BAR FR	6G335484AB BUSH - ANTI ROLL BAR FR -	-	2	Enquire
